SAP ABAP Table FRMLS_API_ARH (RMS-FRM: Header Data of Attribute Part of Formula)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSFRMAPI (Package) RMS-FRM: RMS Formula - API

Basic Data

Table Category	INTTAB	Structure
Structure	FRMLS_API_ARH	Table Relationship Diagram
Short Description	RMS-FRM: Header Data of Attribute Part of Formula

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	RMS-FRM: Standard Fields for Attribute Part in API Structure
2	LINEMODE	☐	FRMLE_LINEMODE	CHAR1	CHAR	1	0	Processing Status/Mode of a Record/Step Loop Line
3	STATUS	☐	FRMLE_STATUSINFO	CHAR1	CHAR	1	0	Status Information
4	STATUSCODE	☐	FRMLE_STATUSCODE	CHAR3	CHAR	3	0	RMS-FRM: Status Code
5	EXTHANDLE	☐	FRMLE_EXTHANDLE	CHAR10	CHAR	10	0	Handle for API Client; Is Not Overwritten by API
6	.INCLUDE	☐				0	0	RMS-FRM: Structure of ESTRH
7	.INCLUDE	☐				0	0	RMS-FRM: Key Fields for Formula Data
8	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
9	RECN	☐	FRMLE_SUBRECN	ESDRECN	NUMC	20	0	Substance Key
10	ACTN	☐	FRMLE_ACTN	ESDACTN	NUMC	20	0	Current Number of Change State
11	.INCLUDE	☐				0	0	RMS-FRM: Administrative Data
12	VALFR	☐	FRMLE_VALFR	DATUM	DATS	8	0	Valid-From Date
13	VALTO	☐	FRMLE_VALTO	DATUM	DATS	8	0	Valid-To Date
14	AENNR	☐	FRMLE_AENNR	AENNR	CHAR	12	0	Change Number	AENR
15	DELFLG	☐	FRMLE_DEL_FLG	XFELD	CHAR	1	0	Deletion Indicator
16	PARKFLG	☐	FRMLE_PARK_FLG	XFELD	CHAR	1	0	Data Record is Parked
17	CRNAM	☐	FRMLE_CRNAM	USNAM	CHAR	12	0	User Who Created the Formula
18	CRDAT	☐	FRMLE_CRDAT	DATUM	DATS	8	0	Created On
19	UPDNAM	☐	FRMLE_UPDNAM	USNAM	CHAR	12	0	User who Last Changed the Formula
20	UPDDAT	☐	FRMLE_UPDDAT	DATUM	DATS	8	0	Date of Last Change
21	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	*
22	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
23	RECN_MASTER1	☐	FRMLE_RECN_MASTER	FRMLD_GUID	CHAR	32	0	Higher-Level Object Identifier
24	RECNROOT	☐	FRMLE_RECNROOT	FRMLD_GUID	CHAR	32	0	Formula Header Object
25	UPDDATS	☐	FRMLE_UPDDATF	DATUM	DATS	8	0	RMS-FRM: Date when the Formula was Last Changed
26	UPDNAMS	☐	FRMLE_UPDNAMF	USNAM	CHAR	12	0	RMS-FRM: Name of the Person who Last Changed the Formula
27	SUBID	☐	FRMLE_FRMLID	FRMLD_SUBID	CHAR	12	0	Recipe Formula
28	SUBCAT	☐	FRMLE_FRMLCAT	ESDSUBCAT	CHAR	10	0	Formula Type	TCG31OBJ
29	AUTHGRP	☐	FRMLE_AUTHGRP	ESDAUTHGRP	CHAR	10	0	Authorization Group of a Formula	TCG36OBJ
30	REM	☐	FRMLE_REM	TEXT60	CHAR	60	0	Remark
31	SUBCHAR	☐	FRMLE_CHAR	CHAR10	CHAR	10	0	Note
32	RECN_STRUCT_HDR	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier

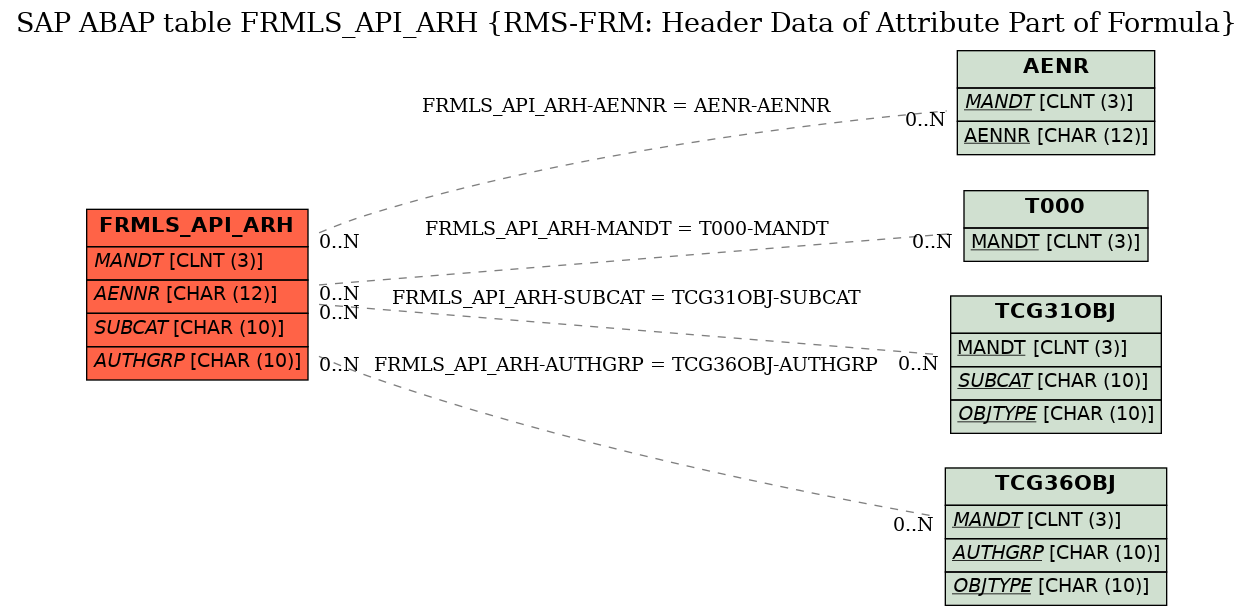

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FRMLS_API_ARH	AENNR	AENR	AENNR
2	FRMLS_API_ARH	AUTHGRP	TCG36OBJ	AUTHGRP
3	FRMLS_API_ARH	MANDT	T000	MANDT
4	FRMLS_API_ARH	SUBCAT	TCG31OBJ	SUBCAT

History

Last changed by/on	SAP	20131127
SAP Release Created in
