SAP ABAP Table FPLTC_AUTH (Payment Cards: Authorization Part)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ SD-BIL-IV-PC (Application Component) Payment Cards
     ⤷ VFC (Package) Application development R/3 billing docs.: Payment cards

Basic Data

Table Category	INTTAB	Structure

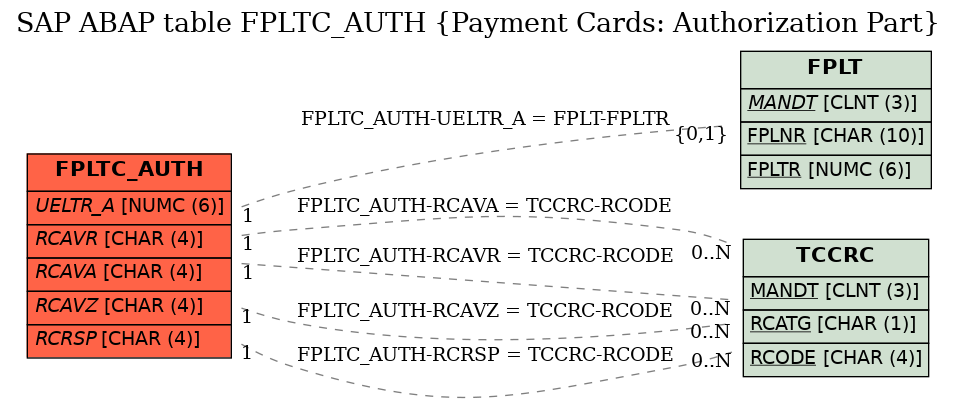

Structure	FPLTC_AUTH	Table Relationship Diagram
Short Description	Payment Cards: Authorization Part

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	AUTWR	☐	AUTWR	WERTV8	CURR	15	2	Payment cards: Authorized amount
2	SETTL	☐	SETTL	XFELD	CHAR	1	0	Payment cards: Settlement carried out
3	AUNUM	☐	AUNUM	CHAR10	CHAR	10	0	Payment cards: Authorization number
4	AUTRA	☐	AUTRA	CHAR15	CHAR	15	0	Payment cards: Authoriz. reference code of clearing house
5	AUDAT	☐	AUDAT_CC	DATUM	DATS	8	0	Payment cards: Authorization date
6	AUTIM	☐	AUTIM	UZEIT	TIMS	6	0	Payment cards: Authorization time
7	.INCLUDE	☐				0	0	Payment Cards: Transaction Data - SD Database Fields
8	CCAUA	☐	CCAUA	CCAUA	CHAR	1	0	Payment cards: Authorization type
9	CCALL	☐	CCALL	CCALL	CHAR	1	0	Payment cards: Status when external system is called?
10	REACT	☐	REACT_SD	REACT_SD	CHAR	1	0	Payment cards: Response to authorization checks
11	AUTWV	☐	AUTWV	WERTV8	CURR	15	2	Payment cards: Amount to be authorized
12	CCOLD	☐	CCOLD	XFELD	CHAR	1	0	Payment cards: Authorization has expired
13	CCVAL	☐	CCVAL	XFELD	CHAR	1	0	Payment cards: Amount changed
14	CCPRE	☐	CCPRE	XFELD	CHAR	1	0	Payment cards: Preauthorization
15	UELTR_A	☐	UELTR_A	FPLTR	NUMC	6	0	Higher-level authorization for billing plan	FPLT
16	.INCLUDE	☐				0	0	Payment Cards: Result of Authorization/Settlement
17	RCAVR	☐	RCAVR_CC	CHAR4	CHAR	4	0	Payment Cards: Result of Address Check (Address Result)	TCCRC
18	RCAVA	☐	RCAVA_CC	CHAR4	CHAR	4	0	Payment Cards: Result of Address Check (Address Approval)	TCCRC
19	RCAVZ	☐	RCAVZ_CC	CHAR4	CHAR	4	0	Payment Cards: Result of Address Check (ZIP Code Result)	TCCRC
20	RCRSP	☐	RCRSP_CC	CHAR4	CHAR	4	0	Payment cards: Result of card check (response code)	TCCRC
21	RTEXT	☐	RTEXT_CC	TXT40	CHAR	40	0	Payment cards: Result text

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FPLTC_AUTH	RCAVA	TCCRC	RCODE	REF	1	CN
2	FPLTC_AUTH	RCAVR	TCCRC	RCODE	REF	1	CN
3	FPLTC_AUTH	RCAVZ	TCCRC	RCODE	REF	1	CN
4	FPLTC_AUTH	RCRSP	TCCRC	RCODE	REF	1	CN
5	FPLTC_AUTH	UELTR_A	FPLT	FPLTR	REF	1	C

History

Last changed by/on	SAP	19970903
SAP Release Created in
