SAP ABAP Table FOX3_ECN_DB (Storage of Change Numbers)
Hierarchy
☛
SAP_BS_FND (Software Component) SAP Business Suite Foundation
⤷
CA-MDG-DRF (Application Component) Data Replication Framework
⤷
FOX3 (Package) Framework for hierarchy explosion
SAP_BS_FND (Software Component) SAP Business Suite Foundation⤷
CA-MDG-DRF (Application Component) Data Replication Framework⤷
FOX3 (Package) Framework for hierarchy explosion
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | FOX3_ECN_DB |

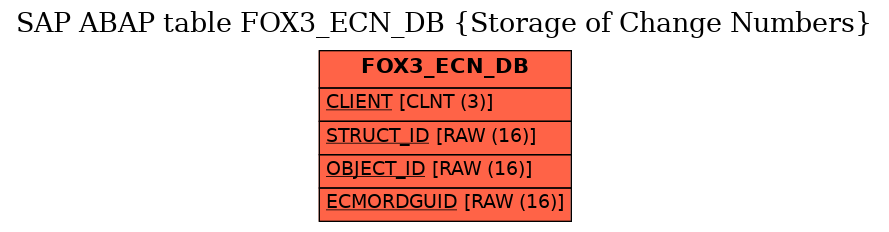

Table Relationship Diagram
|
| Short Description | Storage of Change Numbers |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | A | Application Table (Master- and Transaction Data) |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  CLIENT |
MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
| 2 | .INCLUDE |
0 | 0 | Change Number Area: Key Part | |||||
| 3 | .INCLUDE |
0 | 0 | Data Area for FOX Instances: Key Part | |||||
| 4 | STRUCT_ID |
FOX3_STRUCT_DB_ID | SYSUUID | RAW | 16 | 0 | Database ID of a FOX Cache | ||
| 5 | OBJECT_ID |
FOX3_OBJECT_DB_ID | SYSUUID | RAW | 16 | 0 | Database ID of a FOX Object | ||
| 6 | .INCLUDE |
0 | 0 | Change Number: Key Part of Object | |||||
| 7 | ECMORDGUID |
ECMORDGUID | ECMORDGUID | RAW | 16 | 0 | GUID for Engineering Change Order | ||
| 8 | .INCLUDE |
0 | 0 | Change Number Area: Data Part | |||||
| 9 | VALACT |
FOX3_VALACT | FOX3_VALACT | CHAR | 1 | 0 | Activity of the Validity (See CL_FOX_CONSTANTS) |
History
| Last changed by/on | SAP | 20110908 |
| SAP Release Created in | 640 |
