SAP ABAP Table EL20_IDOC (IDOC Structure: E1ISU4P, E1ISU4K)

Hierarchy

☛ IS-UT (Software Component) SAP Utilities/Telecommunication
   ⤷ IS-U-DM-MR (Application Component) Meter Reading
     ⤷ EE17 (Package) IS-U: Meter Reading Data Entry

Basic Data

Table Category	INTTAB	Structure

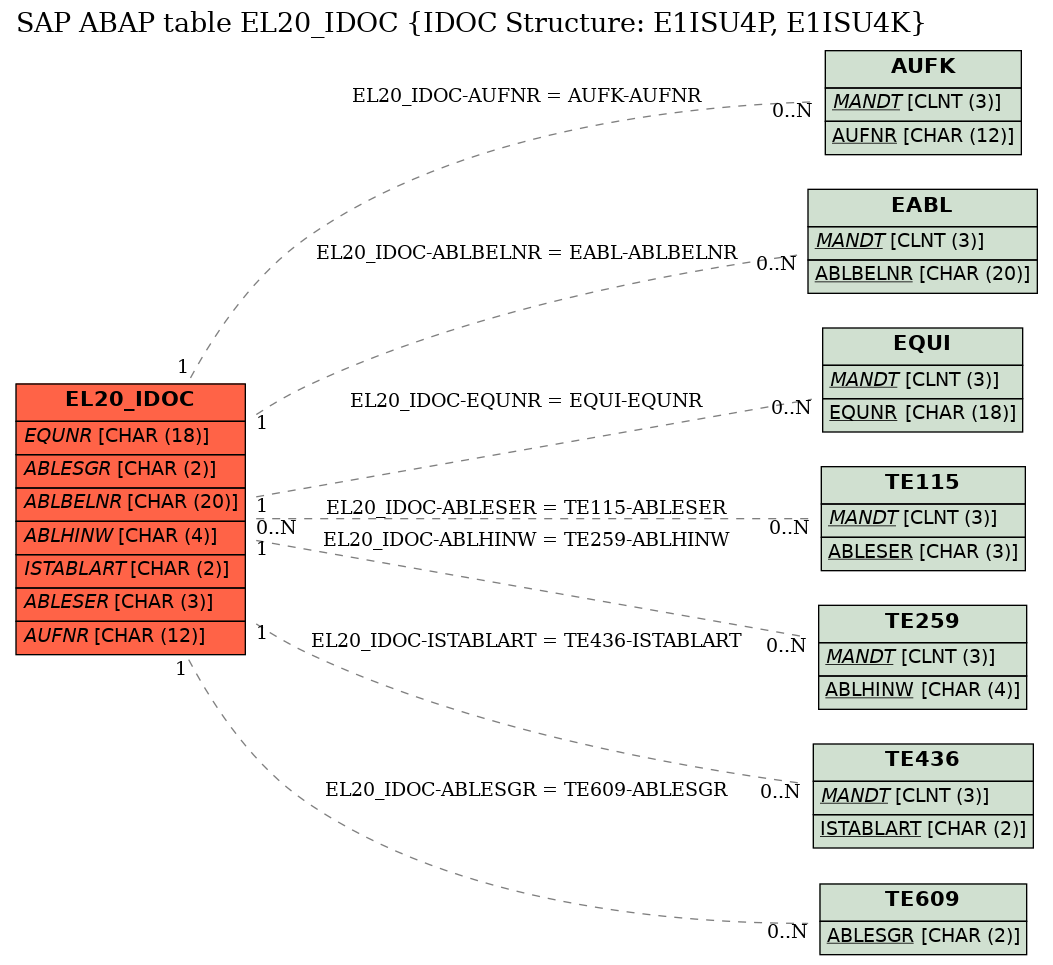

Structure	EL20_IDOC	Table Relationship Diagram
Short Description	IDOC Structure: E1ISU4P, E1ISU4K

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Upload Fields: MR Data
2	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
3	ZWNUMMER	☐	E_ZWNUMMER	LFDNR3	NUMC	3	0	Register
4	ABLESGR	☐	ABLESGR	ABLESGR	CHAR	2	0	Meter reading reason	TE609
5	ABLBELNR	☐	ABLBELNR	ABLBELNR	CHAR	20	0	Internal ID for meter reading document	EABL
6	ZWSTAND	☐	E_ZWSTAND	E_ZWSTAND	CHAR	36	0	Meter reading recorded
7	ABLHINW	☐	ABLHINW	ABLHINW	CHAR	4	0	Note from meter reader	TE259
8	ISTABLART	☐	ISTABLART	ISTABLART	CHAR	2	0	Meter reading type	TE436
9	ABLESER	☐	ABLESER	ABLESER	CHAR	3	0	Meter reader number	TE115
10	ADAT	☐	ADAT	DATUM	DATS	8	0	Meter reading date relevant to billing
11	ATIM	☐	ATIM	HHMM	CHAR	4	0	Meter reading time (relevant to billing)
12	ADATTATS	☐	ADATTATS	DATUM	DATS	8	0	Actual meter reading date
13	ATIMTATS	☐	ATIMTATS	HHMM	CHAR	4	0	Actual meter reading time
14	ADATMAX	☐	ADATMAX	DATUM	DATS	8	0	Date of maximum meter reading
15	ATIMMAX	☐	ATIMMAX	HHMM	CHAR	4	0	Time of maximum meter reading
16	AUFNR	☐	SM_AUFNR	AUFNR	CHAR	12	0	Service order or service notification number	AUFK
17	.INCLUDE	☐				0	0
18	AKTIV	☐	E_AKTIV	E_AKTIV	CHAR	1	0	Meter reading active
19	SEGNUM	☐	IDOCDSGNUM	EDI_NUMBER	NUMC	6	0	Number of SAP segment
20	MRRES_BILLED	☐	E_ZWSTAND	E_ZWSTAND	CHAR	36	0	Meter reading recorded
21	ADATSOLL	☐	ADATSOLL	DATUM	DATS	8	0	Scheduled meter reading date
22	CHANGE_ALL	☐	CHANGE_ALL	KENNZX	CHAR	1	0	Carry out all changes together

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EL20_IDOC	ABLBELNR	EABL	ABLBELNR	KEY	1	CN
2	EL20_IDOC	ABLESER	TE115	ABLESER	KEY
3	EL20_IDOC	ABLESGR	TE609	ABLESGR	KEY	1	CN
4	EL20_IDOC	ABLHINW	TE259	ABLHINW	KEY	1	CN
5	EL20_IDOC	AUFNR	AUFK	AUFNR	KEY	1	CN
6	EL20_IDOC	EQUNR	EQUI	EQUNR	KEY	1	CN
7	EL20_IDOC	ISTABLART	TE436	ISTABLART	KEY	1	CN

History

Last changed by/on	SAP	20050224
SAP Release Created in
