SAP ABAP Table EDISCREMOV (Disconnection Document: Device Removal Periods)

Hierarchy

☛ IS-UT (Software Component) SAP Utilities/Telecommunication
   ⤷ IS-U-CS (Application Component) Customer Service
     ⤷ EE05 (Package) IS-U: Cross-Appliation Functions

Basic Data

Table Category	TRANSP	Transparent table

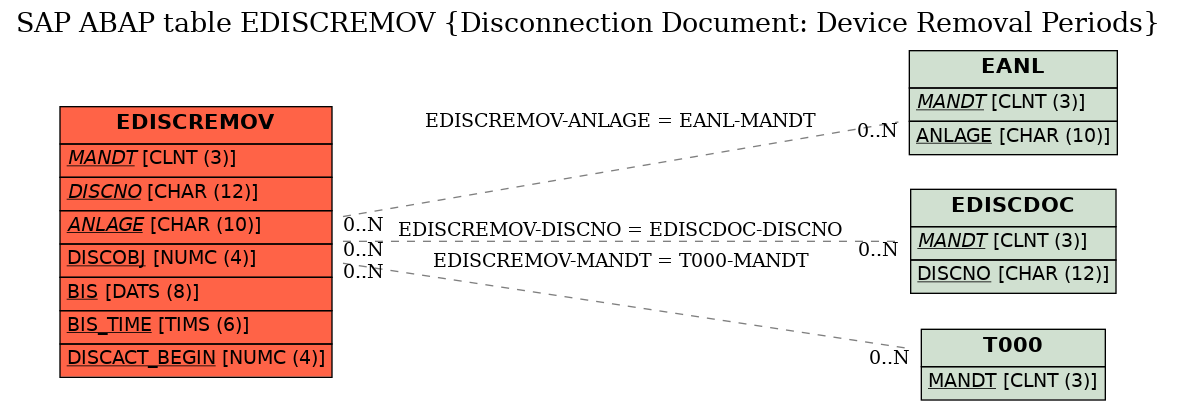

Transparent table	EDISCREMOV	Table Relationship Diagram
Short Description	Disconnection Document: Device Removal Periods

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	DISCNO	☑	DISCNO	DISCNO	CHAR	12	0	Disconnection document number	EDISCDOC
3	ANLAGE	☑	ANLAGE	ANLAGE	CHAR	10	0	Installation	EANL
4	DISCOBJ	☑	DISCOBJ	DISCOBJ	NUMC	4	0	Disconnection object number	*
5	BIS	☑	DISC_BIS	DATUM	DATS	8	0	Date to which a disconnection is valid
6	BIS_TIME	☑	DISC_BISTI	DISCACTTIM	TIMS	6	0	Time until which a disconnection is effective
7	DISCACT_BEGIN	☑	DISCACT_BEGIN	DISCACT	NUMC	4	0	Disconnection activity that caused creation of period
8	LOGIKNR	☐	LOGIKNR	LOGIKNR	NUMC	18	0	Logical device number
9	EQUINR	☐	EQUINR	TEXT10	CHAR	10	0	Equipment number of a heating system (comp. maintenance)
10	AB	☐	DISC_AB	DATUM	DATS	8	0	Date from which a disconnection is valid
11	AB_TIME	☐	DISC_ABTI	DISCACTTIM	TIMS	6	0	Time from which a disconnection is effective
12	DISCACT_END	☐	DISCACT_END	DISCACT	NUMC	4	0	Disconnection activity that caused end of period
13	DISCSTATE	☐	DISCSTATE	DISCSTATE	CHAR	2	0	Disconnection status

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EDISCREMOV	ANLAGE	EANL	MANDT	KEY
2	EDISCREMOV	DISCNO	EDISCDOC	DISCNO	KEY
3	EDISCREMOV	MANDT	T000	MANDT	KEY

History

Last changed by/on	SAP	20050224
SAP Release Created in
