SAP ABAP Table E2EA_S_AGG_ALERT (Structure to store the aggregated alerts)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-MON-ALR-CNS (Application Component) Alert Inbox/Processor
     ⤷ AI_SOLMAN_ALRT_CONSM (Package) Alert Consumer Connector

Basic Data

Table Category	INTTAB	Structure

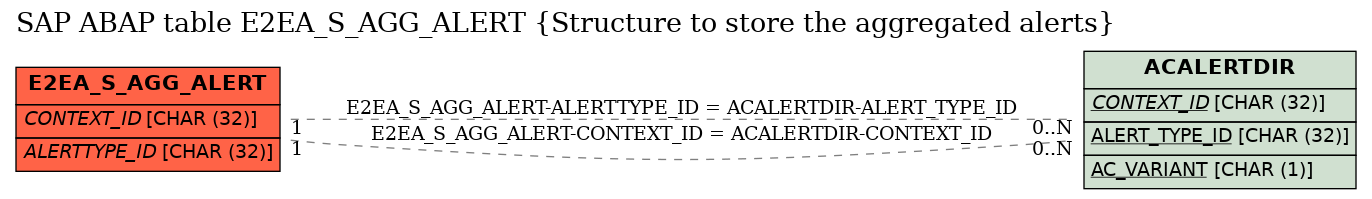

Structure	E2EA_S_AGG_ALERT	Table Relationship Diagram
Short Description	Structure to store the aggregated alerts

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Table to store the current instances of all alerttypes
2	CONTEXT_ID	☐	AC_GUID	SYSUUID_C	CHAR	32	0	Alert configuration: guid	ACALERTDIR
3	ALERTTYPE_ID	☐	AC_GUID	SYSUUID_C	CHAR	32	0	Alert configuration: guid	ACALERTDIR
4	ACTION_TIMESTAMP	☐	E2EA_TIMESTAMP	TZNTSTMPS	DEC	15	0	Time stamp
5	CURR_RATING	☐	E2EA_CURRATING	E2EA_RATING	CHAR	1	0	The current rating of the alert
6	AGG_RATING	☐	E2EA_AGGRATING	E2EA_RATING	CHAR	1	0	The aggregate rating for the alerttype
7	CNT_RED	☐			NUMC	6	0
8	CNT_YELLOW	☐			NUMC	6	0
9	CNT_GREEN	☐			NUMC	6	0
10	STATUS	☐	E2EA_ALSTAT	E2EA_ALSTAT	CHAR	4	0	Alert status
11	COMMENTS	☐	E2EA_COMMENTS		STRG	0	0	Any specific comments added for an alert instance
12	POSTPONE_TIME	☐	E2EA_TIMESTAMP	TZNTSTMPS	DEC	15	0	Time stamp
13	POSTPONED_BY	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
14	NO_ALGROUPS	☐			NUMC	6	0
15	WORST_TIMESTAMP	☐	E2EA_TIMESTAMP	TZNTSTMPS	DEC	15	0	Time stamp
16	ACTION	☐	AC_TEXT_255	AC_TEXT_255	CHAR	255	0	Alert configuration: data element for text
17	ACTION_RATING	☐	E2EA_ACTION	E2EA_ACTION	CHAR	4	0	leading action on alert type
18	ATIME	☐	SYUZEIT	SYTIME	TIMS	6	0	System Time
19	ADATE	☐	SYDATUM	SYDATS	DATS	8	0	System Date
20	SYSTEM_DESCR	☐	CHAR255	CHAR255	CHAR	255	0	Char255
21	INSTANCE_DESCR	☐	CHAR255	CHAR255	CHAR	255	0	Char255
22	HOST_DESCR	☐	CHAR255	CHAR255	CHAR	255	0	Char255
23	ALRT_COUNT	☐			NUMC	20	0
24	STATUS_DESCR	☐	E2EA_STDESCR		CHAR	30	0	Status description
25	CATEGORY_TEXT	☐			CHAR	30	0
26	SUBCATEGORY_TEXT	☐			CHAR	30	0
27	CURR_RATING_ICON	☐	E2EA_ICON	ICON	CHAR	4	0	Rating Icon	*
28	AGG_RATING_ICON	☐	E2EA_ICON	ICON	CHAR	4	0	Rating Icon	*
29	CONTEXT_TYPE_TEXT	☐	CHAR60	CHAR60	CHAR	60	0	Char 60
30	PRIORITY	☐	E2EA_PRIORITY	E2EA_PRIORITY	CHAR	1	0	Consm Connector: Priority of an alert
31	PRIORITY_TEXT	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
32	WORST_DATE_TIME	☐			CHAR	30	0
33	MON_OBJTYPE_ICON	☐	CHAR100	CHAR100	CHAR	100	0	Character 100
34	CATEGORY_ICON	☐	CHAR100	CHAR100	CHAR	100	0	Character 100
35	STATUS_RATING	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
36	CONN_EVENT_ID	☐	AC_GUID	SYSUUID_C	CHAR	32	0	Alert configuration: guid
37	PC_STATUS	☐	E2E_PCC_STATUS	E2E_PCC_STATUS_D	CHAR	15	0	Status information of the Problem Context Collection
38	PC_STATUS_ICON	☐	E2EA_ICON	ICON	CHAR	4	0	Rating Icon	*
39	PARENT_TECH_SYS	☐	ACT_CONTEXTDIR		TTYP	0	0
40	ACTION_DESC	☐			STRG	0	0
41	PROCESSORS	☐			STRG	0	0
42	WORST_RATING_TOOLTIP	☐	AC_TEXT_100	AC_TEXT_100	CHAR	100	0	Alert configuration: data element for text
43	CURR_RATING_TOOLTIP	☐	AC_TEXT_100	AC_TEXT_100	CHAR	100	0	Alert configuration: data element for text
44	PRIORITY_TOOLTIP	☐	AC_TEXT_100	AC_TEXT_100	CHAR	100	0	Alert configuration: data element for text
45	PC_STATUS_TOOLTIP	☐			STRG	0	0
46	CATEGORY	☐	AC_CATEGORY	AC_CATEGORY	CHAR	10	0	Alert configuration: dataelement for alert categories
47	SUB_CATEGORY	☐	AC_SUB_CATEGORY	AC_SUB_CATEGORY	CHAR	30	0	Alert configuration: dataelement for subcategory
48	NAME	☐	AC_TEXT_255	AC_TEXT_255	CHAR	255	0	Alert configuration: data element for text
49	SEVERITY	☐	AC_SEVERITY	AC_SEVERITY	INT1	3	0	Alert configuration: data element for alert severity
50	CONTEXT_NAME	☐	AC_CONTEXT_NAME	AC_CONTEXT_NAME	CHAR	128	0	Alert configuration: dataelement for context name
51	CONTEXT_TYPE	☐	AC_CONTEXT_TYPE	AC_CONTEXT_TYPE	CHAR	10	0	Alert configuration: data element for context type	*
52	NO_ALGROUPS_TEXT	☐			STRG	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	E2EA_S_AGG_ALERT	ALERTTYPE_ID	ACALERTDIR	ALERT_TYPE_ID	KEY	1	CN
2	E2EA_S_AGG_ALERT	CONTEXT_ID	ACALERTDIR	CONTEXT_ID	KEY	1	CN

History

Last changed by/on	SAP	20111123
SAP Release Created in	400
