SAP ABAP Table E2EA_EVENT (Stores the event instances of the alerts)
Hierarchy
☛
ST (Software Component) SAP Solution Manager Tool
⤷ SV-SMG-MON-ALR-CNS (Application Component) Alert Inbox/Processor
⤷ AI_SOLMAN_ALRT_CONSM (Package) Alert Consumer Connector
⤷ SV-SMG-MON-ALR-CNS (Application Component) Alert Inbox/Processor
⤷ AI_SOLMAN_ALRT_CONSM (Package) Alert Consumer Connector
Basic Data
Table Category | TRANSP | Transparent table |

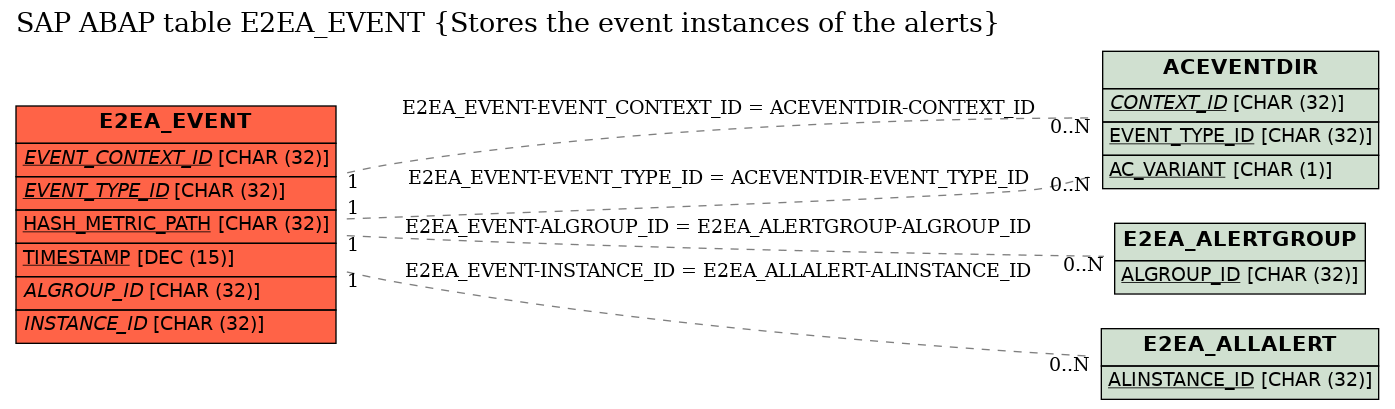

Transparent table | E2EA_EVENT | Table Relationship Diagram |
Short Description | Stores the event instances of the alerts |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | EVENT_CONTEXT_ID | AC_GUID | SYSUUID_C | CHAR | 32 | 0 | Alert configuration: guid | ACEVENTDIR | |
2 | EVENT_TYPE_ID | AC_GUID | SYSUUID_C | CHAR | 32 | 0 | Alert configuration: guid | ACEVENTDIR | |
3 | HASH_METRIC_PATH | AC_GUID | SYSUUID_C | CHAR | 32 | 0 | Alert configuration: guid | ||
4 | TIMESTAMP | E2EA_TIMESTAMP | TZNTSTMPS | DEC | 15 | 0 | Time stamp | ||
5 | ALGROUP_ID | E2EA_GUID | SYSUUID_C | CHAR | 32 | 0 | Consumer Connector: guid | E2EA_ALERTGROUP | |
6 | EVENT_CLASS | AC_METRICTYPE_CLASS | AC_METRICTYPECLASS | CHAR | 10 | 0 | Alert Configuration : data element for Metric Type Class | ||
7 | RATING | E2EA_RATING | E2EA_RATING | CHAR | 1 | 0 | Rating | ||
8 | VALUE | E2EA_VALUE | E2EA_VALUE | DEC | 17 | 0 | Measured Value | ||
9 | UNIT | AC_UNIT | AC_UNIT | CHAR | 10 | 0 | Alert configuration: unit of measurement | ||
10 | EVENT_KIND | AC_EVENT_RULE_CLASS | AC_EVENT_RULE_CLASS | CHAR | 10 | 0 | AlertConfiguration: Rule class for EventType | ||
11 | TEXT_VALUE | STRG | 0 | 0 | |||||
12 | METRIC_PATH | AC_METRIC_PATH | STRG | 0 | 0 | AC: dataelement to store the metric path | |||
13 | EXPLANATION_TEXT | STRG | 0 | 0 | |||||
14 | INSTANCE_ID | E2EA_GUID | SYSUUID_C | CHAR | 32 | 0 | Consumer Connector: guid | E2EA_ALLALERT | |
15 | PARENT_EVENT_ID | AC_GUID | SYSUUID_C | CHAR | 32 | 0 | Alert configuration: guid | ||
16 | PARENT_CONTEXTID | AC_GUID | SYSUUID_C | CHAR | 32 | 0 | Alert configuration: guid |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | E2EA_EVENT | ALGROUP_ID | E2EA_ALERTGROUP | ALGROUP_ID | REF | 1 | CN |
2 | E2EA_EVENT | EVENT_CONTEXT_ID | ACEVENTDIR | CONTEXT_ID | 1 | CN | |
3 | E2EA_EVENT | EVENT_TYPE_ID | ACEVENTDIR | EVENT_TYPE_ID | 1 | CN | |
4 | E2EA_EVENT | INSTANCE_ID | E2EA_ALLALERT | ALINSTANCE_ID | KEY | 1 | CN |
History
Last changed by/on | SAP | 20111123 |
SAP Release Created in | 400 |
