SAP ABAP Table E2EA_CONSM_ALERT (Consumer Connector Alert and it's attributes)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-MON-ALR-CNS (Application Component) Alert Inbox/Processor
     ⤷ AI_SOLMAN_ALRT_CONSM (Package) Alert Consumer Connector

Basic Data

Table Category	INTTAB	Structure

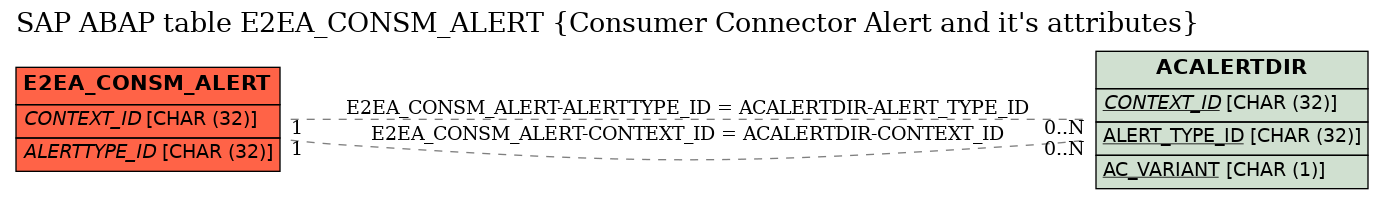

Structure	E2EA_CONSM_ALERT	Table Relationship Diagram
Short Description	Consumer Connector Alert and it's attributes

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Table to store the current instances of all alerttypes
2	CONTEXT_ID	☐	AC_GUID	SYSUUID_C	CHAR	32	0	Alert configuration: guid	ACALERTDIR
3	ALERTTYPE_ID	☐	AC_GUID	SYSUUID_C	CHAR	32	0	Alert configuration: guid	ACALERTDIR
4	ACTION_TIMESTAMP	☐	E2EA_TIMESTAMP	TZNTSTMPS	DEC	15	0	Time stamp
5	CURR_RATING	☐	E2EA_CURRATING	E2EA_RATING	CHAR	1	0	The current rating of the alert
6	AGG_RATING	☐	E2EA_AGGRATING	E2EA_RATING	CHAR	1	0	The aggregate rating for the alerttype
7	CNT_RED	☐			NUMC	6	0
8	CNT_YELLOW	☐			NUMC	6	0
9	CNT_GREEN	☐			NUMC	6	0
10	STATUS	☐	E2EA_ALSTAT	E2EA_ALSTAT	CHAR	4	0	Alert status
11	COMMENTS	☐	E2EA_COMMENTS		STRG	0	0	Any specific comments added for an alert instance
12	POSTPONE_TIME	☐	E2EA_TIMESTAMP	TZNTSTMPS	DEC	15	0	Time stamp
13	POSTPONED_BY	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
14	NO_ALGROUPS	☐			NUMC	6	0
15	WORST_TIMESTAMP	☐	E2EA_TIMESTAMP	TZNTSTMPS	DEC	15	0	Time stamp
16	ACTION	☐	AC_TEXT_255	AC_TEXT_255	CHAR	255	0	Alert configuration: data element for text
17	ACTION_RATING	☐	E2EA_ACTION	E2EA_ACTION	CHAR	4	0	leading action on alert type
18	ALERT_DOCU	☐	E2EA_ALDOCU		STRG	0	0	Alert documentation(dir)
19	AN_ACTNAME	☐	E2EA_ANACTNAME	E2EA_IDENTIFIER	CHAR	45	0	Analysis Action name(directory)
20	AN_ACTTYPE	☐	E2EA_ANACTTYPE	E2EA_IDENTIFIER	CHAR	45	0	Analysis action type(directory)
21	REC_ACTION	☐	E2EA_RECACTNAME	E2EA_IDENTIFIER	CHAR	45	0	Recommended action (directory)
22	REC_ACTIONTYPE	☐	E2EA_RECACTTYPE	E2EA_IDENTIFIER	CHAR	45	0	Recommended action type(directory)
23	ISDEFAULTNOTIFY	☐	E2EA_NOTIFY	E2EA_BOOLEAN	CHAR	1	0	Enabling of default notification
24	NOTIFYCHANNEL	☐	E2EA_NOTIFYCHN	E2EA_NOTIFYCHN	CHAR	40	0	The default notification channel
25	THRES_RED	☐	E2EA_REDTHRES	E2EA_THRESHOLD	CHAR	10	0	The threshold value for red alert(dir)
26	THRES_YELLOW	☐	E2EA_YELLOWTHRES	E2EA_THRESHOLD	CHAR	10	0	The threshold value for yellow alert(dir)
27	THRES_GREEN	☐	E2EA_GREENTHRES	E2EA_THRESHOLD	CHAR	10	0	The threshold value for green alert (dir)
28	THRES_UNIT	☐	E2EA_THRESUNIT		CHAR	10	0	The Threshold unit (dir)
29	RATING	☐	E2EA_RATING	E2EA_RATING	CHAR	1	0	Rating
30	PROCESSOR	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
31	INCIDENTID	☐	BAPI_DSWP_REFNUM	CHAR20	CHAR	20	0	DSWP: BAPI External Reference Number
32	TIME	☐	SYUZEIT	SYTIME	TIMS	6	0	System Time
33	MESSAGE	☐	E2EA_MESSAGE		STRG	0	0	Description of an alert instance
34	DISP_STATUS	☐			STRG	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	E2EA_CONSM_ALERT	ALERTTYPE_ID	ACALERTDIR	ALERT_TYPE_ID	KEY	1	CN
2	E2EA_CONSM_ALERT	CONTEXT_ID	ACALERTDIR	CONTEXT_ID	KEY	1	CN

History

Last changed by/on	SAP	20111123
SAP Release Created in	400
