SAP ABAP Table E2E_EFWK_STATUS (Extractor Framework Status Table for Worklist Items)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-DIA (Application Component) Solution Manager Diagnostics
     ⤷ AI_SOLMAN_DIAGNOSTICS_E2E_EN (Package) Solution Manager Diagnostics End-To-End Analysis

Basic Data

Table Category	TRANSP	Transparent table

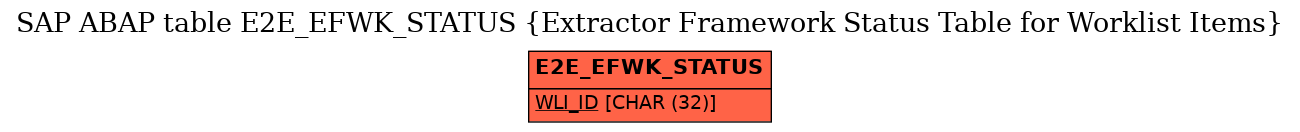

Transparent table	E2E_EFWK_STATUS	Table Relationship Diagram
Short Description	Extractor Framework Status Table for Worklist Items

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	WLI_ID	☑	E2E_EFWK_WLI_ID	SYSUUID_C	CHAR	32	0	Data Element for Worklist Items
2	REFERENCE_ID	☐	E2E_EFWK_WLI_ID	SYSUUID_C	CHAR	32	0	Data Element for Worklist Items
3	SID	☐	E2E_SID		CHAR	8	0	System ID
4	SYSTEM_TYPE	☐	DIAGLS_TECHNICAL_SYSTEM_TYPE		CHAR	16	0	The Technical System Type (Abap Server, J2ee Server)
5	INSTNO	☐	E2E_INSTNO		CHAR	10	0	Installation Number
6	CLT	☐	E2E_CLIENT	E2E_CLIENT	CHAR	3	0	Client
7	PRPPMSID	☐	E2E_PRPPMSID		CHAR	20	0	Product PPMS ID
8	MIPPMSID	☐	E2E_MIPPMSID		CHAR	20	0	Maininstance MI PPMS ID
9	PPPMSID	☐	E2E_PPPMSID		CHAR	20	0	Maininstance P PPMS ID
10	CVPPMSID	☐	E2E_CVPPMSID		CHAR	20	0	Component CV PPMS ID
11	MAINEXTRACTOR	☐	E2E_EXTRACTOR		CHAR	30	0	(Main) Extractor (Technical Name)
12	EXTRACTOR	☐	E2E_EXTRACTOR		CHAR	30	0	(Main) Extractor (Technical Name)
13	EXTRACTORCLASS	☐	E2E_EXTRACTOR_CLASS	E2E_TEXT100	CHAR	100	0	E2E: Extractor Class
14	CONTEXT_ID	☐	ACE_D_CONTEXT_ID	SYSUUID_C	CHAR	32	0	Identifier for the context
15	EVENT_TYPE_ID	☐	ACE_D_EVENT_TYPE_ID		CHAR	32	0	Identifier for an event type
16	METRIC	☐	E2E_EFWK_WLI_ID	SYSUUID_C	CHAR	32	0	Data Element for Worklist Items
17	TIMESTART	☐	E2E_TIMESTAMP_LONG		NUMC	14	0	Timestamp (14 Characters, YYYYMMDDHHmmSS)
18	TIMESTOP	☐	E2E_TIMESTAMP_LONG		NUMC	14	0	Timestamp (14 Characters, YYYYMMDDHHmmSS)
19	COLLECT	☐			CHAR	1	0
20	STATUS	☐			CHAR	1	0
21	PRIORITY	☐			INT4	10	0
22	RC	☐	SYSUBRC	SYST_SHORT	INT4	10	0	Return Code
23	MESSAGE	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
24	LASTRUNTIME	☐			INT4	10	0
25	LASTRECORDS	☐			INT4	10	0
26	T_START_LAST	☐	E2E_TIMESTAMP_LONG		NUMC	14	0	Timestamp (14 Characters, YYYYMMDDHHmmSS)
27	T_STOP_LAST	☐	E2E_TIMESTAMP_LONG		NUMC	14	0	Timestamp (14 Characters, YYYYMMDDHHmmSS)
28	T_START_LAST_SUC	☐	E2E_TIMESTAMP_LONG		NUMC	14	0	Timestamp (14 Characters, YYYYMMDDHHmmSS)
29	T_STOP_LAST_SUC	☐	E2E_TIMESTAMP_LONG		NUMC	14	0	Timestamp (14 Characters, YYYYMMDDHHmmSS)

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
