SAP ABAP Table E2E_ACTIVE_WLI (Active Worklist Items)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-DIA (Application Component) Solution Manager Diagnostics
     ⤷ AI_SOLMAN_DIAGNOSTICS_E2E_EN (Package) Solution Manager Diagnostics End-To-End Analysis

Basic Data

Table Category	TRANSP	Transparent table

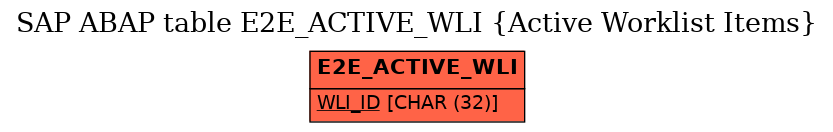

Transparent table	E2E_ACTIVE_WLI	Table Relationship Diagram
Short Description	Active Worklist Items

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	WLI_ID	☑	E2E_EFWK_WLI_ID	SYSUUID_C	CHAR	32	0	Data Element for Worklist Items
2	REFERENCE_ID	☐	E2E_EFWK_WLI_ID	SYSUUID_C	CHAR	32	0	Data Element for Worklist Items
3	SID	☐	E2E_SID		CHAR	8	0	System ID
4	SYSTEM_TYPE	☐	DIAGLS_TECHNICAL_SYSTEM_TYPE		CHAR	16	0	The Technical System Type (Abap Server, J2ee Server)
5	INSTNO	☐	E2E_INSTNO		CHAR	10	0	Installation Number
6	CLT	☐	E2E_CLIENT	E2E_CLIENT	CHAR	3	0	Client
7	PRPPMSID	☐	E2E_PRPPMSID		CHAR	20	0	Product PPMS ID
8	MIPPMSID	☐	E2E_MIPPMSID		CHAR	20	0	Maininstance MI PPMS ID
9	PPPMSID	☐	E2E_PPPMSID		CHAR	20	0	Maininstance P PPMS ID
10	CVPPMSID	☐	E2E_CVPPMSID		CHAR	20	0	Component CV PPMS ID
11	MAINEXTRACTOR	☐	E2E_EXTRACTOR		CHAR	30	0	(Main) Extractor (Technical Name)
12	EXTRACTOR	☐	E2E_EXTRACTOR		CHAR	30	0	(Main) Extractor (Technical Name)
13	EXTRACTORCLASS	☐	E2E_EXTRACTOR_CLASS	E2E_TEXT100	CHAR	100	0	E2E: Extractor Class
14	METRIC	☐	E2E_EFWK_WLI_ID	SYSUUID_C	CHAR	32	0	Data Element for Worklist Items
15	ACTIVE	☐			CHAR	1	0
16	NAME	☐	E2E_EXTRACTOR_NAME	E2E_TEXT60	CHAR	60	0	E2E: Extractor Name
17	SOURCERFCDEST	☐	RFCDEST	RFCDEST	CHAR	32	0	Logical Destination (Specified in Function Call)	*
18	DTRUN	☐			INT4	10	0
19	DTSCAN	☐	E2E_DTSCAN		INT4	10	0	Delta T for scan of Required Records
20	AGGLEVEL	☐	E2E_AGGLEVEL		INT2	5	0	Level of pre-aggregation
21	CONFIGSTRING	☐	E2E_CHAR255	E2E_TEXT	CHAR	255	0	E2E: Character 255 (Case Sensitive)
22	TARGETRFCDEST	☐	RFCDEST	RFCDEST	CHAR	32	0	Logical Destination (Specified in Function Call)	*
23	TARGETTYPE	☐	E2E_TARGETTYPE		CHAR	10	0	Target Type (Dynamic Loader)
24	TARGETNAME	☐	E2E_TARGETNAME		CHAR	100	0	Target Name (Dynamic Loader)
25	MDXCACHE	☐			CHAR	1	0
26	POSTPROCESSOR	☐	E2E_EXTRACTOR		CHAR	30	0	(Main) Extractor (Technical Name)
27	DATALOADER	☐	E2E_EXTRACTOR		CHAR	30	0	(Main) Extractor (Technical Name)
28	DATALOADERCLASS	☐	E2E_EXTRACTOR_CLASS	E2E_TEXT100	CHAR	100	0	E2E: Extractor Class
29	POSTDATALOADER	☐	E2E_EXTRACTOR		CHAR	30	0	(Main) Extractor (Technical Name)
30	LOCALEX	☐			CHAR	1	0
31	MULTIME	☐			CHAR	1	0
32	XML_STRING	☐	E2E_XMLSTRING	E2E_STRING_LOW	STRG	0	0	XML String
33	LOGGING	☐			CHAR	1	0
34	CONTEXT_ID	☐	ACE_D_CONTEXT_ID	SYSUUID_C	CHAR	32	0	Identifier for the context
35	EVENT_TYPE_ID	☐	ACE_D_EVENT_TYPE_ID		CHAR	32	0	Identifier for an event type
36	DOWNTIME	☐	E2E_FLAG	E2E_FLAG	CHAR	1	0	DCC: flag
37	SETUP_TYPE	☐	E2E_SETUP_TYPE	E2E_SETUP_TYPE	CHAR	30	0	EFWK Setup Type
38	TEMPLATE_ID	☐	E2E_EFWK_WLI_ID	SYSUUID_C	CHAR	32	0	Data Element for Worklist Items

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
