SAP ABAP Table DSWP_WRK_FEATURE (Work Center Personalization)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-MON (Application Component) Monitoring & Alerting
     ⤷ AI_SOLMAN_WBA_GENERAL_MODULES (Package) General modules needed for the Solution Manager Web Based Ad

Basic Data

Table Category	TRANSP	Transparent table

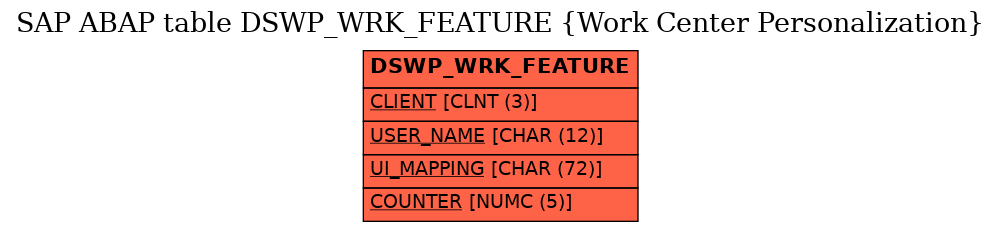

Transparent table	DSWP_WRK_FEATURE	Table Relationship Diagram
Short Description	Work Center Personalization

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	SYMANDT	MANDT	CLNT	3	0	Client ID	*
2	USER_NAME	☑	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*
3	UI_MAPPING	☑	WBA_UI_MAPPING		CHAR	72	0	UI Mapping of areas within workcenters of WBAR
4	COUNTER	☑	MENU_NUM_5	NUM05	NUMC	5	0	Counter for menu ID
5	TYPE	☐	WBA_FEAT_TYPE	WBA_FEAT_TYPE	CHAR	32	0	Feature for WBAR workcenters
6	FEATURE_DESCR	☐	TEXT60	TEXT60	CHAR	60	0	Text Field of Length 60
7	LOCAL_CALL	☐	WBA_LOCAL_CALL	WBA_LOCAL_CALL	CHAR	1	0	Feature to be called locally
8	FEATURE_TECH	☐	WBA_FEATURE_TECH		CHAR	128	0	Feature (technical name) for WBAR workcenters

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
