SAP ABAP Table DMS_LORI_HD1 (DVS: Incoming links PHIOS for additional files)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CA-DMS (Application Component) Document Management System
     ⤷ CV (Package) Application Development: R/3 Document Management

Basic Data

Table Category	TRANSP	Transparent table

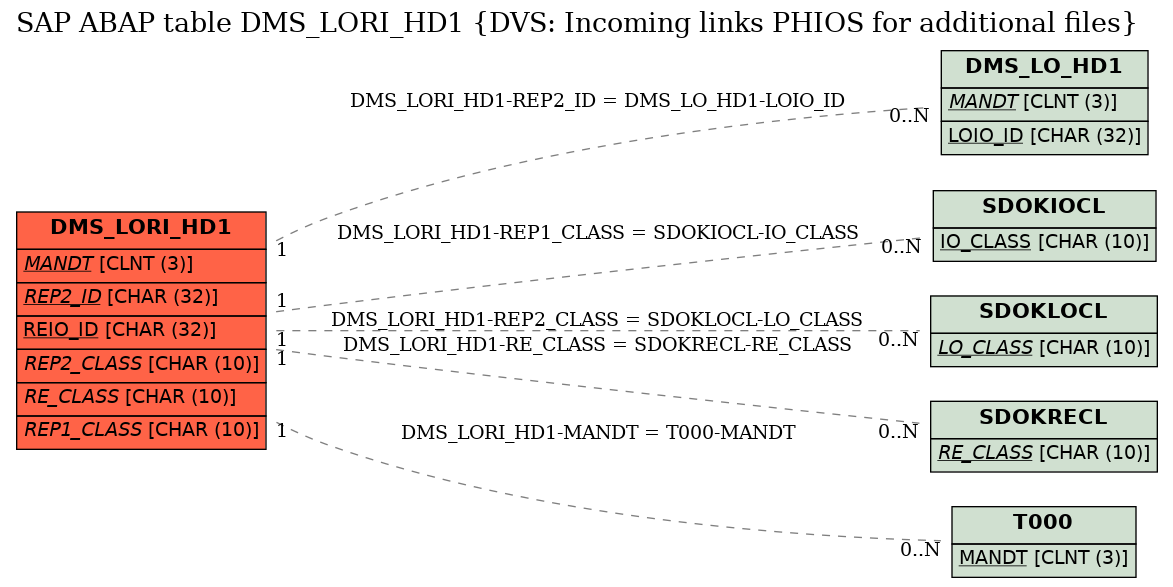

Transparent table	DMS_LORI_HD1	Table Relationship Diagram
Short Description	DVS: Incoming links PHIOS for additional files

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	REP2_ID	☑	SDOK_LOID	SDOK_DOCID	CHAR	32	0	Logical document	DMS_LO_HD1
3	REIO_ID	☑	SDOK_REID	SDOK_DOCID	CHAR	32	0	Relationship between logical and physical documents
4	REP2_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKLOCL
5	RE_CLASS	☐	SDOK_RECL	SDOK_CLASS	CHAR	10	0	Relationship class	SDOKRECL
6	REP1_ID	☐	SDOK_DOCID	SDOK_DOCID	CHAR	32	0	ID for documents and relations
7	REP1_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKIOCL
8	.INCLUDE	☐				0	0	SDOK: Fields for relationship instances
9	CREA_USER	☐	SDOK_CRUSR	USERNAME	CHAR	12	0	Created by
10	CREA_TIME	☐	SDOK_CRTST	SDOK_TSTMP	NUMC	14	0	Creation time (UTC)
11	CHNG_USER	☐	SDOK_CHUSR	USERNAME	CHAR	12	0	Last changed by
12	CHNG_TIME	☐	SDOK_CHTST	SDOK_TSTMP	NUMC	14	0	Time of change (UTC)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DMS_LORI_HD1	MANDT	T000	MANDT	KEY	1	CN
2	DMS_LORI_HD1	REP1_CLASS	SDOKIOCL	IO_CLASS	REF	1	CN
3	DMS_LORI_HD1	REP2_CLASS	SDOKLOCL	LO_CLASS	REF	1	CN
4	DMS_LORI_HD1	REP2_ID	DMS_LO_HD1	LOIO_ID	KEY	1	CN
5	DMS_LORI_HD1	RE_CLASS	SDOKRECL	RE_CLASS	REF	1	CN

History

Last changed by/on	SAP	19990223
SAP Release Created in
