SAP ABAP Table DMS_CONT2_CD1 (DVS: Document conetnts in SAP-DB (main original))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CA-DMS (Application Component) Document Management System
     ⤷ CV (Package) Application Development: R/3 Document Management

Basic Data

Table Category	TRANSP	Transparent table

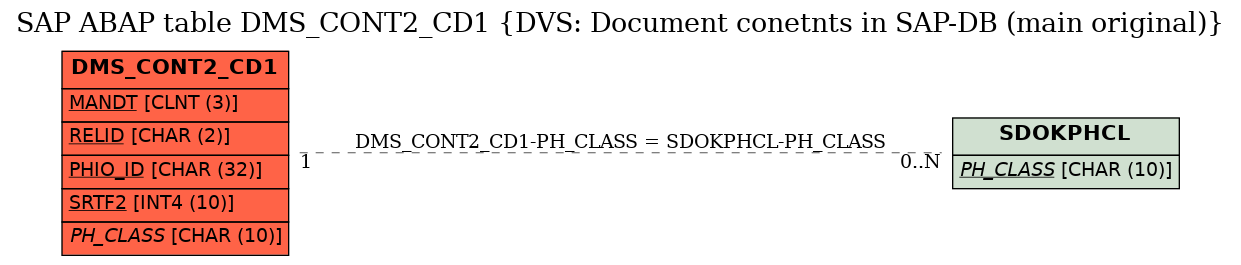

Transparent table	DMS_CONT2_CD1	Table Relationship Diagram
Short Description	DVS: Document conetnts in SAP-DB (main original)

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	RELID	☑	INDX_RELID	SYCHAR02	CHAR	2	0	Region in IMPORT/EXPORT Data Table
3	PHIO_ID	☑	SDOK_PHID	SDOK_DOCID	CHAR	32	0	Physical document
4	SRTF2	☑	INDX_SRTF2	SYBIN4	INT4	10	0	Next record counter in EXPORT/IMPORT data tables
5	PH_CLASS	☐	SDOK_PHCL	SDOK_CLASS	CHAR	10	0	Physical document class	SDOKPHCL
6	CLUSTR	☐	INDX_CLSTR	SYBIN2	INT2	5	0	Length field for user data in EXPORT/IMPORT tables
7	CLUSTD	☐	ORBLK	ORBLK	LRAW	2550	0	Data block for original data

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DMS_CONT2_CD1	PH_CLASS	SDOKPHCL	PH_CLASS	REF	1	CN

History

Last changed by/on	SAP	19990104
SAP Release Created in
