SAP ABAP Table DMS_CONT1_HD1 (DVS: Document contents in SAP-DB (additional files))
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CA-DMS (Application Component) Document Management System
⤷ CV (Package) Application Development: R/3 Document Management
⤷ CA-DMS (Application Component) Document Management System
⤷ CV (Package) Application Development: R/3 Document Management
Basic Data
Table Category | TRANSP | Transparent table |

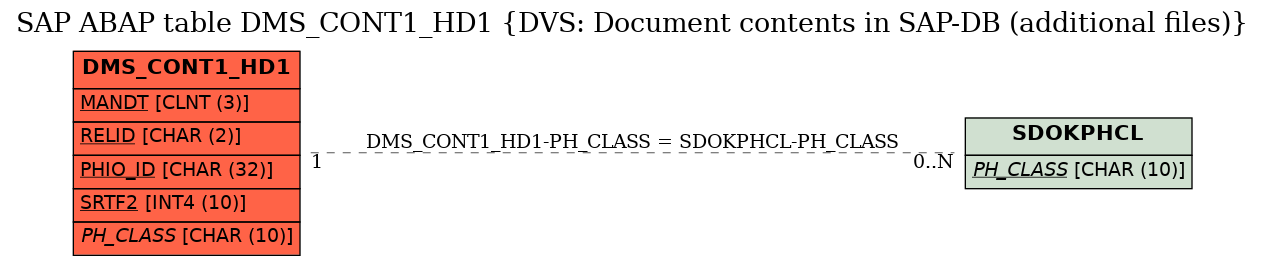

Transparent table | DMS_CONT1_HD1 | Table Relationship Diagram |
Short Description | DVS: Document contents in SAP-DB (additional files) |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | A | Application Table (Master- and Transaction Data) |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | RELID | INDX_RELID | SYCHAR02 | CHAR | 2 | 0 | Region in IMPORT/EXPORT Data Table | ||
3 | PHIO_ID | SDOK_PHID | SDOK_DOCID | CHAR | 32 | 0 | Physical document | ||
4 | SRTF2 | INDX_SRTF2 | SYBIN4 | INT4 | 10 | 0 | Next record counter in EXPORT/IMPORT data tables | ||
5 | PH_CLASS | SDOK_PHCL | SDOK_CLASS | CHAR | 10 | 0 | Physical document class | SDOKPHCL | |
6 | CLUSTR | INDX_CLSTR | SYBIN2 | INT2 | 5 | 0 | Length field for user data in EXPORT/IMPORT tables | ||
7 | CLUSTD | ORBLK | ORBLK | LRAW | 2550 | 0 | Data block for original data |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | DMS_CONT1_HD1 | PH_CLASS | SDOKPHCL | PH_CLASS | REF | 1 | CN |
History
Last changed by/on | SAP | 19990104 |
SAP Release Created in |
