SAP ABAP Table DML_INACTIVE_DAT (MDF Cluster Table for Inactive States)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-MDF (Application Component) Master Data Framework
     ⤷ COM_DML_CUST (Package) MDF: Customizing

Basic Data

Table Category	TRANSP	Transparent table

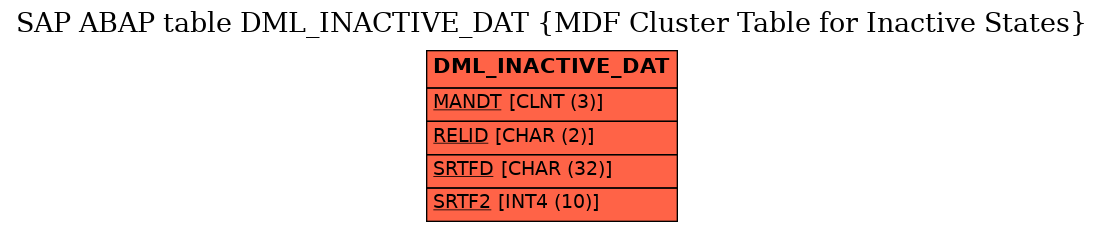

Transparent table	DML_INACTIVE_DAT	Table Relationship Diagram
Short Description	MDF Cluster Table for Inactive States

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	RELID	☑	INDX_RELID	SYCHAR02	CHAR	2	0	Region in IMPORT/EXPORT Data Table
3	SRTFD	☑	DML_SRTFD		CHAR	32	0	Object Key
4	SRTF2	☑	INDX_SRTF2	SYBIN4	INT4	10	0	Next record counter in EXPORT/IMPORT data tables
5	OBJECT_TYPE	☐	DML_OBJTYP	CHAR10	CHAR	10	0	MDF Object Type
6	OBJVERS_ID	☐	DML_OBJVERS_ID		RAW	16	0	Object Version Key
7	USERNAME	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
8	INACTIVE_TYPE	☐	DML_INACT_STATE	DML_INACT_STATE	INT1	3	0	Type of Inactive State
9	INACTIVE_ID	☐	DML_INACT_ID	CHAR42	CHAR	42	0	ID of Inactive State
10	CLUSTR	☐	INDX_CLSTR	SYBIN2	INT2	5	0	Length field for user data in EXPORT/IMPORT tables
11	CLUSTD	☐	INDX_CLUST	INDX_CLUST	LRAW	2886	0	Data field for IMPORT/EXPORT database tables

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
