SAP ABAP Table DIAGST_XML_ELEM (Data of XML Elements)
Hierarchy
☛
ST (Software Component) SAP Solution Manager Tool
⤷
SV-SMG-DIA (Application Component) Solution Manager Diagnostics
⤷
AI_DIAGNOSTICS_STORE_API (Package) Read / Write Stores from/in the database.
ST (Software Component) SAP Solution Manager Tool⤷
SV-SMG-DIA (Application Component) Solution Manager Diagnostics⤷
AI_DIAGNOSTICS_STORE_API (Package) Read / Write Stores from/in the database.
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | DIAGST_XML_ELEM |

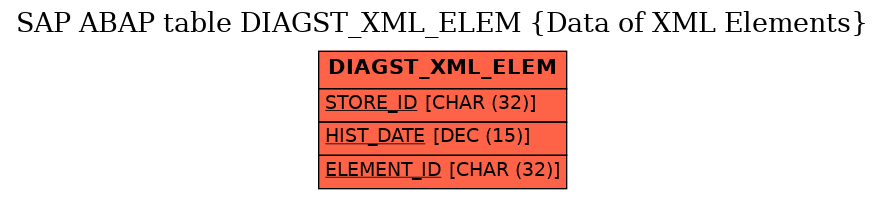

Table Relationship Diagram
|
| Short Description | Data of XML Elements |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | S | System table, maint. only by SAP, change = modification |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  STORE_ID |
DIAGST_ID | SYSUUID_C | CHAR | 32 | 0 | Unique-ID for a class instance of Store-API | ||
| 2 | HIST_DATE |
DIAGST_DATE | TZNTSTMPS | DEC | 15 | 0 | DDIC type used in Store-API as general date format | ||
| 3 | ELEMENT_ID |
DIAGST_ID | SYSUUID_C | CHAR | 32 | 0 | Unique-ID for a class instance of Store-API | ||
| 4 | NAME |
DIAGST_XML_ELEM_NAME | DIAGST_CHAR250_LC | CHAR | 250 | 0 | XML Element Name | ||
| 5 | VALUE |
DIAGST_XML_ELEM_VALUE | DIAGST_CHAR250_LC | CHAR | 250 | 0 | XML Element Value | ||
| 6 | NAME_LONG |
DIAGST_BOOLEAN | CHAR | 1 | 0 | Boolean: 'X' = True, space = False | |||
| 7 | VALUE_LONG |
DIAGST_BOOLEAN | CHAR | 1 | 0 | Boolean: 'X' = True, space = False | |||
| 8 | PARENT_ELEM_ID |
DIAGST_ID | SYSUUID_C | CHAR | 32 | 0 | Unique-ID for a class instance of Store-API | ||
| 9 | ELEM_POS |
DIAGST_XML_ELEM_POS | INT4 | 10 | 0 | XML Element Position in parent xml element |
History
| Last changed by/on | SAP | 20100705 |
| SAP Release Created in | 400 |
