SAP ABAP Table DIAGST_AUTH_SC (CCDB Store Content Authorizations)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-DIA (Application Component) Solution Manager Diagnostics
     ⤷ AI_DIAGNOSTICS_STORE_API (Package) Read / Write Stores from/in the database.

Basic Data

Table Category	TRANSP	Transparent table

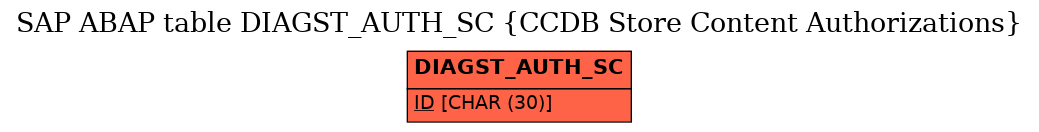

Transparent table	DIAGST_AUTH_SC	Table Relationship Diagram
Short Description	CCDB Store Content Authorizations

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	ID	☑	CHAR30	CHAR30	CHAR	30	0	30 Characters
2	.INCLUDE	☐				0	0	CCDB: Landscape Virtual Key - Real fields of the VK
3	NAMESPACE	☐	DIAGLS_NAMESPACE	CHAR256	CHAR	256	0	Namespace
4	LONG_SID	☐	DIAGLS_TECH_SYST_LONG_SID		CHAR	8	0	The Technical System Long Sid
5	TECH_SYSTEM_TYPE	☐	DIAGLS_TECHNICAL_SYSTEM_TYPE		CHAR	16	0	The Technical System Type (Abap Server, J2ee Server)
6	LANDSCAPE_CLASS	☐	CLASSNAME	CLASSNAME	CHAR	30	0	Reference type
7	GROUP_COMP_ID	☐	DIAGLS_SOFT_COMP_PPMS_ID		CHAR	20	0	The Ppms Id of the Software Component
8	GROUP_SOURCE	☐	DIAGST_STORE_GROUP_SOURCE		CHAR	4	0	Source of Store
9	GROUP_NAME	☐	DIAGST_STORE_GROUP_NAME	DIAGST_C60SM	CHAR	60	0	Store Group Name
10	STORE_CATEGORY	☐	DIAGST_STORE_CATEGORY		CHAR	10	0	Category of Store
11	STORE_TYPE	☐	DIAGST_STORE_TYPE		CHAR	15	0	Type of Store
12	STORE_FULLPATH	☐	DIAGST_STORE_PATH	DIAGST_STORE_PATH	STRG	0	0	Store Path
13	STORE_NAME	☐	DIAGST_STORE_NAME_LONG	DIAGST_STORE_NAME_LONG	STRG	0	0	Store Name
14	CONT_AUTH	☐	DIAGST_CONT_AUTH_ID		CHAR	30	0	CCDB Store Content Authority ID

History

Last changed by/on	SAP	20111123
SAP Release Created in	402
