SAP ABAP Table DBABL (Information About Archive Log Files (Oracle))
Hierarchy
☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DB-ORA-CCM (Application Component) CCMS / Database Monitors for Oracle
     ⤷ SDBO (Package) Database Administration: Oracle-Specific Components
Basic Data
Table Category TRANSP    Transparent table

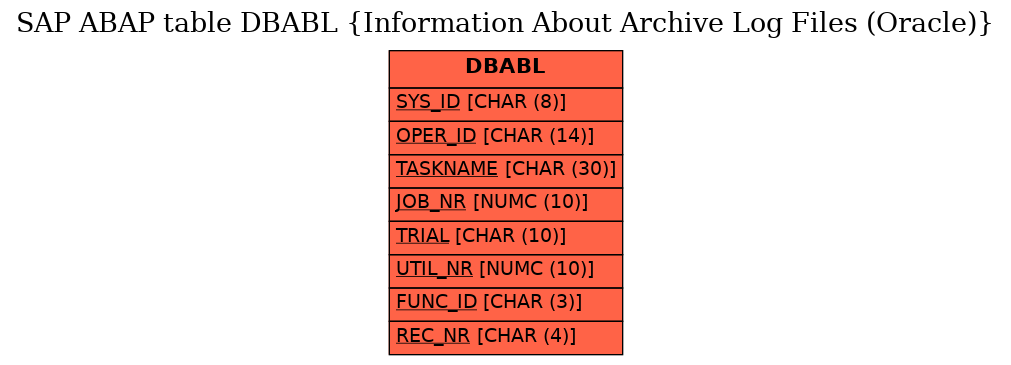

Transparent table DBABL   Table Relationship Diagram
Short Description Information About Archive Log Files (Oracle)
Delivery and Maintenance
Pool/cluster
Delivery Class S   System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance X   Display/Maintenance Allowed
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 SYS_ID SDBA_DBSID CHAR8 CHAR 8   0   Database system ID
2 OPER_ID SDBA_OP_ID CHAR14 CHAR 14   0   Unique operation ID
3 TASKNAME SDBA_TASK SDBA_TASK CHAR 30   0   Task Name
4 JOB_NR SDBA_JOB SDBA_JOB NUMC 10   0   Unique Job Number in a Task
5 TRIAL SDBA_TRIAL CHAR10 CHAR 10   0   Unique ID Number of the Suboperation
6 UTIL_NR SDBA_UTNR SDBA_UTNR NUMC 10   0   Utility number within job step
7 FUNC_ID SDBA_FID SDBA_FUNCT CHAR 3   0   DBA Function ID
8 REC_NR SDBA_RECNR CHAR4 CHAR 4   0   Unique record number for file
9 UPD_OP SDBA_UPD SDBA_UPD CHAR 14   0   Update Time Stamp
10 ARCH_FUNC SDBA_AFU SDBA_AFU CHAR 1   0   Backup function
11 ARCH_NR SDBA_ANR CHAR8 CHAR 8   0   Archive log sequence number
12 ARCH_TIME SDBA_ATI CHAR14 CHAR 14   0   Offline redo log file creation time
13 ARCH_SCN SDBA_ASC CHAR16 CHAR 16   0   First System Change Number (SCN) of Offline Redo Log File
14 THREAD_NR SDBA_RTHRD CHAR4 CHAR 4   0   Oracle thread number of the offline redo log file
15 TIME_BEG SDBA_BEGAR SDBA_TSTMP CHAR 14   0   Offline redo log file backup start time
16 TIME_END SDBA_ENDAR SDBA_TSTMP CHAR 14   0   End of offline redo log file backup
17 VOLUME SDBA_VOL CHAR10 CHAR 10   0   Name of backup volume
18 FILE_POS SDBA_FPOS NUMC4 NUMC 4   0   Position of file on storage device
19 COMP_RATE SDBA_COMPR CHAR10 CHAR 10   0   Compression rate
20 UTIL_BID SDBA_BID CHAR16 CHAR 16   0   SID of a backup file (using external backup program)
21 ARCH_NAME SDBA_ANA CHAR255 CHAR 255   0   Name of Saved Offline Redo Log File
22 ARCH_SIZE SDBA_ASI CHAR12 CHAR 12   0   Size (Bytes) of Saved Offline Redo Log File
23 INTERNAL SDBA_INT CHAR255 CHAR 255   0   For internal purposes
History
Last changed by/on SAP  20130604
SAP Release Created in
