SAP ABAP Table DB2QTHDLST (ST04: DB2 thread overview)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-DB-DB2 (Application Component) DB2 for z/OS
⤷ STU3 (Package) Development Class for Database Monitor
⤷ BC-DB-DB2 (Application Component) DB2 for z/OS
⤷ STU3 (Package) Development Class for Database Monitor
Basic Data
Table Category | INTTAB | Structure |

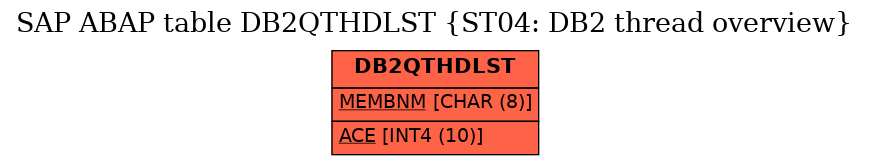

Structure | DB2QTHDLST | Table Relationship Diagram |
Short Description | ST04: DB2 thread overview |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MEMBNM | DB2MEMN | DB2CHAR08 | CHAR | 8 | 0 | DB2 member name in data sharing environment | ||
2 | ACE | DB2RAW04 | DB2INT4 | INT4 | 10 | 0 | Field type raw, length 8, 4 bytes | ||
3 | CONNID | DB2WHCCN | DB2CHAR08 | CHAR | 8 | 0 | The connection ID of the thread | ||
4 | HDSUBSYSID | DB2SWPSSID | DB2CHAR04 | CHAR | 4 | 0 | DB2 subsystem ID | ||
5 | HDATDAT | DB2SWPATDT | DB2DATE | DATS | 8 | 0 | Date when sampling is taken | ||
6 | HDATTIM | DB2SWPATTM | DB2TIME | TIMS | 6 | 0 | Time when sampling is taken | ||
7 | HDLRESTIME | DB2SWPLRTM | DB2TIME | TIMS | 6 | 0 | Time of last reset | ||
8 | JOBNAME | DB2THDJOB | DB2CHAR8 | CHAR | 8 | 0 | The job name of the thread. | ||
9 | DBPLAN | DB2WHCPLAN | CHAR128 | CHAR | 128 | 0 | DB2 plan name | ||
10 | AUTHID | DB2WHCAID | CHAR128 | CHAR | 128 | 0 | The authorization ID under which the transaction is running | ||
11 | CORRID | DB2WHCCV | DB2CHAR16 | CHAR | 16 | 0 | The correlation ID of the thread (IP address) | ||
12 | THDTSTAT | DB2THDTSTT | DB2SINT | INT2 | 5 | 0 | |||
13 | THDSTAT | DB2W0148AI | DB2CHAR16 | CHAR | 16 | 0 | The status of the thread | ||
14 | FILLER | DB2CHAR08 | DB2CHAR08 | CHAR | 8 | 0 | Field type char, length 8 | ||
15 | SQLCNT | DB2THDSQL | DB2INT4 | INT4 | 10 | 0 | The total number of executed SQL statements | ||
16 | DBCOMMIT | DB2WACCOMM | DB2INT4 | INT4 | 10 | 0 | The number of successful phase 2 or single-phase commits | ||
17 | ABORT | DB2WACABRT | DB2INT4 | INT4 | 10 | 0 | Total number of rollback requests | ||
18 | GETPAGE | DB2BACGET | DB2INT4U | INT4 | 10 | 0 | Number of Getpage Requests | ||
19 | UPDPAGE | DB2BACSWS | DB2INT4U | INT4 | 10 | 0 | The number of times a buffer update occurs for the agent | ||
20 | LOCKS | DB2THDLOCK | DB2INT4 | INT4 | 10 | 0 | The total number of currently hold locks. | ||
21 | QTXANPL | DB2TXANLP | DB2INT4 | INT4 | 10 | 0 | Maximum page or row locks held | ||
22 | CPUTIME | DB2WACAJST | DB2INT4 | INT4 | 10 | 0 | The accumulated home CPU time a thread spent in DB2 | ||
23 | ELTIME | DB2THDELT | DB2INT4 | INT4 | 10 | 0 | Time elapsed since DB2 thread was started | ||
24 | LOCKMOD | DB2LOCKMOD | DB2CHAR06 | CHAR | 6 | 0 | The mode of the lock held on the resource | ||
25 | ACTTIME | DB2THDTACT | DB2CHAR16 | CHAR | 16 | 0 | Activity time (Class 1 elapsed time) | ||
26 | TIMEINDB2 | DB2INDB2 | DB2TIMEP | CHAR | 8 | 0 | Percentage of time spent in DB2 | ||
27 | PROCINDB2 | DB2PROCDB2 | DB2TIMEP | CHAR | 8 | 0 | Percentage of time spent processing in DB2 | ||
28 | WPTYPE | DB2WPTYE | DB2CHAR05 | CHAR | 5 | 0 | Corresponding R/3 work process type | ||
29 | WPNUMBER | DB2WPNUM | DB2NUMC10 | NUMC | 10 | 0 | Work process number | ||
30 | WPID | DB2WPID | DB2NUMC10 | NUMC | 10 | 0 | Work process ID | ||
31 | ASHOST | DB2ASHOST | DB2CHAR32 | CHAR | 32 | 0 | Application server host name | ||
32 | THDREQ | DB2W0148RQ | DB2INT4 | INT4 | 10 | 0 | Number of Requests Sent to DB2 | ||
33 | THDEUWN | DB2EUWN | DB2CHAR18 | CHAR | 18 | 0 | |||
34 | THDEUTX | DB2EUTX | CHAR32 | CHAR | 32 | 0 | |||
35 | THDACT1 | DB2THDACT1 | DB2INT4 | INT4 | 10 | 0 | |||
36 | THDACT2 | DB2THDACT2 | DB2INT4 | INT4 | 10 | 0 | |||
37 | QMDASUFX | CHAR | 200 | 0 | |||||
38 | QMDAPLAT | CHAR | 18 | 0 | |||||
39 | QWHDRQNM | CHAR | 128 | 0 | |||||
40 | QWHCEUID | CHAR | 128 | 0 | |||||
41 | QWHCTOKN | CHAR | 22 | 0 | |||||
42 | QWACPARR | CHAR | 10 | 0 | |||||
43 | QW0148CI | CHAR | 128 | 0 |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in | 620 |
