SAP ABAP Table DB2QLOTRS (RFC - Timeout Resources)
Hierarchy
☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DB-DB2 (Application Component) DB2 for z/OS
     ⤷ STU3 (Package) Development Class for Database Monitor
Basic Data
Table Category INTTAB    Structure

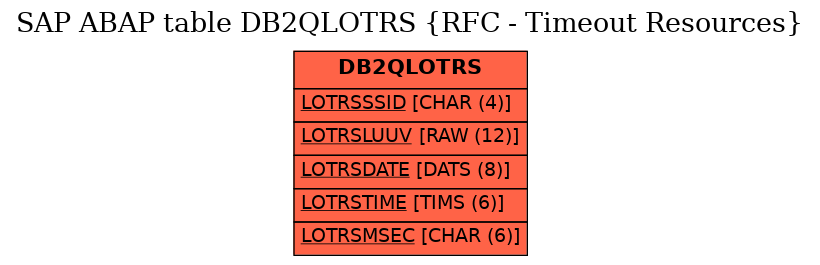

Structure DB2QLOTRS   Table Relationship Diagram
Short Description RFC - Timeout Resources
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 LOTRSSSID DB2SWPSSID DB2CHAR04 CHAR 4   0   DB2 subsystem ID
2 LOTRSLUUV DB2INSTNO DB2RAW12 RAW 12   0   Instance number (unique value)
3 LOTRSDATE DATS DATS DATS 8   0   Field of type DATS
4 LOTRSTIME TIMS TIME TIMS 6   0   Field of type TIMS
5 LOTRSMSEC DB2EVTTMS DB2CHAR06 CHAR 6   0   Event time stamp (milliseconds)
6 LOTRSPLAN DB2WHCPLAN CHAR128 CHAR 128   0   DB2 plan name
7 LOTRSAID DB2WHCAID CHAR128 CHAR 128   0   The authorization ID under which the transaction is running
8 LOTRSCN DB2WHCCN DB2CHAR08 CHAR 8   0   The connection ID of the thread
9 LOTRSCV DB2WHCCV DB2CHAR16 CHAR 16   0   The correlation ID of the thread (IP address)
10 LOTRSEUID DB2LEUID CHAR128 CHAR 128   0   DB2/390: End user ID (in DB2 sense)
11 LOTRSEUTX DB2LEUTX DB2CHAR32 CHAR 32   0   End user transaction name
12 LOTRSEUWN DB2LEUWN DB2CHAR18 CHAR 18   0   End user workstation name
13 LOTRSACCT     CHAR 200   0
14 LOTRSDSGN DB2DSGN DB2CHAR08 CHAR 8   0   DB2/390: Data sharing group
15 LOTRSMMEMN DB2MEMN DB2CHAR08 CHAR 8   0   DB2 member name in data sharing environment
16 LOTRSNU DB2NUMH DB2NUMC10 NUMC 10   0   Number of holders
17 LOTRSFR DB2RESTYPE CHAR20 CHAR 20   0   The type of resource held by a lock
18 LOTRSKD DB2DBOWNER DB2CHAR16 CHAR 16   0   The name of the DB2 database
19 LOTRSKP DB2PAGES2 DB2CHAR18 CHAR 18   0   Object name
20 LOTRSK1 DB2PAGENR DB2CHAR10 CHAR 10   0   Page number
21 LOTRSK2 DB2PARTNR DB2CHAR03 CHAR 3   0   Row ID or partition number, depending on resource type
22 LOTRSWU DB2SWU DB2CHAR06 CHAR 6   0   IRLM function request (LOCK, UNLOCK, or CHANGE)
23 LOTRSWS DB2LOCKMS DB2CHAR03 CHAR 3   0   The mode of the lock held on the resource
24 LOTRSWD DB2SWD DB2CHAR12 CHAR 12   0   Lock duration of the thread holding the resource
25 LOTRSWF DB2RSWF DB2RAW1 RAW 1   0   Conditional / Unconditional
26 LOTRSTI DB2WP4TOUT DB2INT4 INT4 10   0   Maximum time DB2 waits for the release of a locked resource
27 LOTRSTC DB2W0196TC DB2INT4 INT4 10   0   Timeout intervals that can occur before agent is timed out
28 LOTRSSTID DB2RSSTID DB2INT4 INT4 10   0
29 RZ20     CHAR 10   0
30 E2E     CHAR 10   0
History
Last changed by/on SAP  20110908
SAP Release Created in 700
