SAP ABAP Table DB2QLODRS (RFC - Deadlock Resources)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DB-DB2 (Application Component) DB2 for z/OS
     ⤷ STU3 (Package) Development Class for Database Monitor

Basic Data

Table Category	INTTAB	Structure

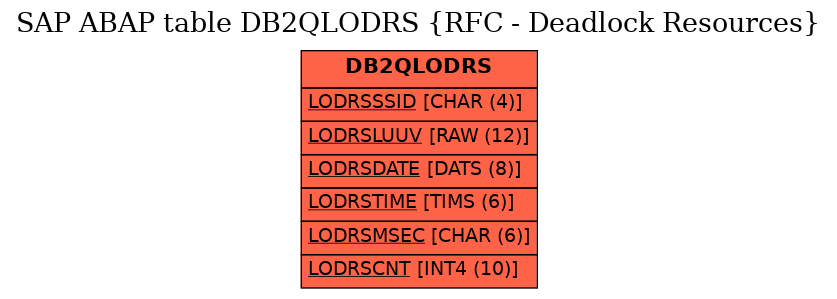

Structure	DB2QLODRS	Table Relationship Diagram
Short Description	RFC - Deadlock Resources

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	LODRSSSID	☑	DB2SWPSSID	DB2CHAR04	CHAR	4	0	DB2 subsystem ID
2	LODRSLUUV	☑	DB2INSTNO	DB2RAW12	RAW	12	0	Instance number (unique value)
3	LODRSDATE	☑	DATS	DATS	DATS	8	0	Field of type DATS
4	LODRSTIME	☑	TIMS	TIME	TIMS	6	0	Field of type TIMS
5	LODRSMSEC	☑	DB2EVTTMS	DB2CHAR06	CHAR	6	0	Event time stamp (milliseconds)
6	LODRSCNT	☑	DB2UCNT		INT4	10	0	DB2/390: Unique counter
7	LODRSFR	☐	DB2RESTYPE	CHAR20	CHAR	20	0	The type of resource held by a lock
8	LODRSKD	☐	DB2DBOWNER	DB2CHAR16	CHAR	16	0	The name of the DB2 database
9	LODRSKP	☐	DB2PAGES2	DB2CHAR18	CHAR	18	0	Object name
10	LODRSK1	☐	DB2PAGENR	DB2CHAR10	CHAR	10	0	Page number
11	LODRSK2	☐	DB2PARTNR	DB2CHAR03	CHAR	3	0	Row ID or partition number, depending on resource type
12	LODRSHP	☐	DB2WHCPLAN	CHAR128	CHAR	128	0	DB2 plan name
13	LODRSHB	☐	DB2WHCAID	CHAR128	CHAR	128	0	The authorization ID under which the transaction is running
14	LODRSHN	☐	DB2WHCCN	DB2CHAR08	CHAR	8	0	The connection ID of the thread
15	LODRSHR	☐	DB2WHCCV	DB2CHAR16	CHAR	16	0	The correlation ID of the thread (IP address)
16	LODRSHC	☐	DB2LEUID	CHAR128	CHAR	128	0	DB2/390: End user ID (in DB2 sense)
17	LODRSHJ	☐	DB2LEUTX	DB2CHAR32	CHAR	32	0	End user transaction name
18	LODRSHK	☐	DB2LEUWN	DB2CHAR18	CHAR	18	0	End user workstation name
19	LODRSHACCT	☐			CHAR	200	0
20	LODRSHLUUV	☐	DB2INSTNO	DB2RAW12	RAW	12	0	Instance number (unique value)
21	LODRSHT	☐	DB2UCNT		INT4	10	0	DB2/390: Unique counter
22	LODRSHI	☐	DB2MEMN	DB2CHAR08	CHAR	8	0	DB2 member name in data sharing environment
23	LODRSHS	☐	DB2LOCKMS	DB2CHAR03	CHAR	3	0	The mode of the lock held on the resource
24	LODRSHD	☐	DB2SWD	DB2CHAR12	CHAR	12	0	Lock duration of the thread holding the resource
25	LODRSHF	☐	DB2RAW1	DB2RAW1	RAW	1	0	RFC - raw 1
26	LODRSWP	☐	DB2WHCPLAN	CHAR128	CHAR	128	0	DB2 plan name
27	LODRSWB	☐	DB2WHCAID	CHAR128	CHAR	128	0	The authorization ID under which the transaction is running
28	LODRSWN	☐	DB2WHCCN	DB2CHAR08	CHAR	8	0	The connection ID of the thread
29	LODRSWR	☐	DB2WHCCV	DB2CHAR16	CHAR	16	0	The correlation ID of the thread (IP address)
30	LODRSWC	☐	DB2LEUID	CHAR128	CHAR	128	0	DB2/390: End user ID (in DB2 sense)
31	LODRSWJ	☐	DB2LEUTX	DB2CHAR32	CHAR	32	0	End user transaction name
32	LODRSWK	☐	DB2LEUWN	DB2CHAR18	CHAR	18	0	End user workstation name
33	LODRSWACCT	☐			CHAR	200	0
34	LODRSWLUUV	☐	DB2INSTNO	DB2RAW12	RAW	12	0	Instance number (unique value)
35	LODRSWT	☐	DB2UCNT		INT4	10	0	DB2/390: Unique counter
36	LODRSWI	☐	DB2MEMN	DB2CHAR08	CHAR	8	0	DB2 member name in data sharing environment
37	LODRSWF	☐	DB2SWU	DB2CHAR06	CHAR	6	0	IRLM function request (LOCK, UNLOCK, or CHANGE)
38	LODRSWS	☐	DB2LOCKMS	DB2CHAR03	CHAR	3	0	The mode of the lock held on the resource
39	LODRSWD	☐	DB20172WD	DB2CHAR12	CHAR	12	0	DB2/390: Waiter duration
40	LODRSWG	☐	DB2RAW1	DB2RAW1	RAW	1	0	RFC - raw 1
41	LODRSWA	☐	DB2W0196TC	DB2INT4	INT4	10	0	Timeout intervals that can occur before agent is timed out
42	LODRSHSTID	☐	DB2RHSTID	DB2INT4	INT4	10	0
43	LODRSWSTID	☐	DB2RWSTID	DB2INT4	INT4	10	0
44	RZ20	☐			CHAR	10	0
45	E2E	☐			CHAR	10	0

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
