SAP ABAP Table DB2QDBPT1 (DB2 for z/OS buffer pool settings)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-DB-DB2 (Application Component) DB2 for z/OS
⤷
STU3 (Package) Development Class for Database Monitor
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-DB-DB2 (Application Component) DB2 for z/OS⤷
STU3 (Package) Development Class for Database Monitor
Basic Data
| Table Category | INTTAB | Structure |
| Structure | DB2QDBPT1 |

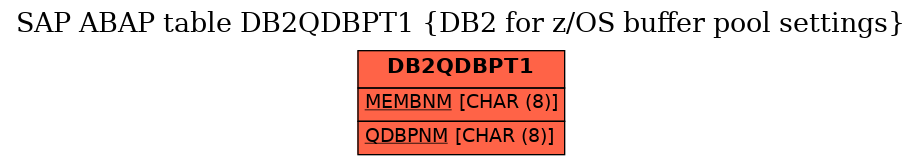

Table Relationship Diagram
|
| Short Description | DB2 for z/OS buffer pool settings |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | ||
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  MEMBNM |
DB2MEMN | DB2CHAR08 | CHAR | 8 | 0 | DB2 member name in data sharing environment | ||
| 2 | QDBPNM |
DB2DBPNM | CHAR8 | CHAR | 8 | 0 | Name of buffer pool | ||
| 3 | QDBPVPSZ |
DB2DBPVPSZ | INT4 | 10 | 0 | The size of the virtual buffer pool | |||
| 4 | QDBPHPSZ |
DB2DBPHPSZ | INT4 | 10 | 0 | The size of the hiperpool | |||
| 5 | QDBPVPSH |
DB2DBPVPSH | DB2INT4 | INT4 | 10 | 0 | The sequential steal threshold for the virtual buffer pool | ||
| 6 | QDBPHPSH |
DB2DBPHPSH | INT4 | 10 | 0 | The sequential steal threshold for the hiperpool | |||
| 7 | QDBPDWQT |
DB2DBPDWQT | DB2INT4 | INT4 | 10 | 0 | The deferred write threshold for the virtual buffer pool | ||
| 8 | QDBPVDQT |
DB2DBPVDQT | INT4 | 10 | 0 | The vertical deferred write threshold for the virtual BP | |||
| 9 | QDBPCAST |
DB2DBPCAST | CHAR6 | CHAR | 6 | 0 | CASTOUT attribute | ||
| 10 | QDBPPSQT |
DB2DBPPSQT | DB2INT4 | INT4 | 10 | 0 | Parallel I/O sequential steal threshold for virtual BP | ||
| 11 | QDBPXSQT |
DB2DBPXSQT | DB2INT4 | INT4 | 10 | 0 | Assisting parallel sequential threshold | ||
| 12 | QDBPVPTY |
DB2DBPVPTY | DB2CHAR01 | CHAR | 1 | 0 | Type of virtual buffer pool | ||
| 13 | QDBPVDQB |
DB2DBPVDQB | DB2INT2V | INT2 | 5 | 0 | Pool vertical write threshold in number of buffers | ||
| 14 | QDBPPGST |
DB2DBPPGST | DB2CHAR04 | CHAR | 4 | 0 | Page stealing algorithm to be used for the virtual BP | ||
| 15 | QDBPPFIX |
CHAR | 3 | 0 | |||||
| 16 | QDBPFRAM |
CHAR | 2 | 0 | |||||
| 17 | QDBPVPMI |
DB2DEC10 | DEC_10 | DEC | 10 | 0 | Field Type DEC, Length 10 | ||
| 18 | QDBPVPMA |
DB2DEC10 | DEC_10 | DEC | 10 | 0 | Field Type DEC, Length 10 | ||
| 19 | QDBPASIZ |
CHAR | 3 | 0 |
History
| Last changed by/on | SAP | 20140117 |
| SAP Release Created in | 620 |
