SAP ABAP Table DB2LRUR (RFC - Long Running URs)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DB-DB2 (Application Component) DB2 for z/OS
     ⤷ STU3 (Package) Development Class for Database Monitor

Basic Data

Table Category	TRANSP	Transparent table

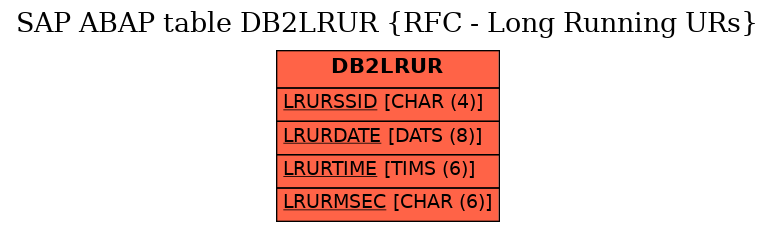

Transparent table	DB2LRUR	Table Relationship Diagram
Short Description	RFC - Long Running URs

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	LRURSSID	☑	DB2SWPSSID	DB2CHAR04	CHAR	4	0	DB2 subsystem ID
2	LRURDATE	☑	DATS	DATS	DATS	8	0	Field of type DATS
3	LRURTIME	☑	TIMS	TIME	TIMS	6	0	Field of type TIMS
4	LRURMSEC	☑	DB2EVTTMS	DB2CHAR06	CHAR	6	0	Event time stamp (milliseconds)
5	LRURDSGN	☐	DB2DSGN	DB2CHAR08	CHAR	8	0	DB2/390: Data sharing group
6	LRURMEMN	☐	DB2MEMN	DB2CHAR08	CHAR	8	0	DB2 member name in data sharing environment
7	LRURMG	☐	DB2CHAR08	DB2CHAR08	CHAR	8	0	Field type char, length 8
8	LRURCK	☐	DB2CHKPTS	DB2NUMC05	NUMC	5	0	Number of checkpoints taken
9	LRURCN	☐	DB2WHCCN	DB2CHAR08	CHAR	8	0	The connection ID of the thread
10	LRURCR	☐	DB2WHCCV	DB2CHAR16	CHAR	16	0	The correlation ID of the thread (IP address)
11	LRURLUUV	☐	DB2INSTNO	DB2RAW12	RAW	12	0	Instance number (unique value)
12	LRURID	☐	DB2W013ID	DB2CHAR12	CHAR	12	0	DB2/390: Unit of recovery ID
13	LRURTY	☐	DB2CHAR08	DB2CHAR08	CHAR	8	0	Field type char, length 8
14	LRURPN	☐	DB2WHCPLAN	CHAR128	CHAR	128	0	DB2 plan name
15	LRURAI	☐	DB2WHCAID	CHAR128	CHAR	128	0	The authorization ID under which the transaction is running
16	LRUREU	☐	DB2LEUID	CHAR128	CHAR	128	0	DB2/390: End user ID (in DB2 sense)
17	LRURET	☐	DB2LEUTX	DB2CHAR32	CHAR	32	0	End user transaction name
18	LRUREW	☐	DB2LEUWN	DB2CHAR18	CHAR	18	0	End user workstation name

History

Last changed by/on	SAP	20110908
SAP Release Created in	732
