SAP ABAP Table CRMXIF_PAYPLAN_DC_EXT (IF Business Trans.: Payment Plan, Ext. Fields Card/Authent.)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-XIF (Application Component) External Interfaces: Basic Functions
     ⤷ CRMXIF_DDIC (Package) DDIC Objects for External Interfaces

Basic Data

Table Category	INTTAB	Structure

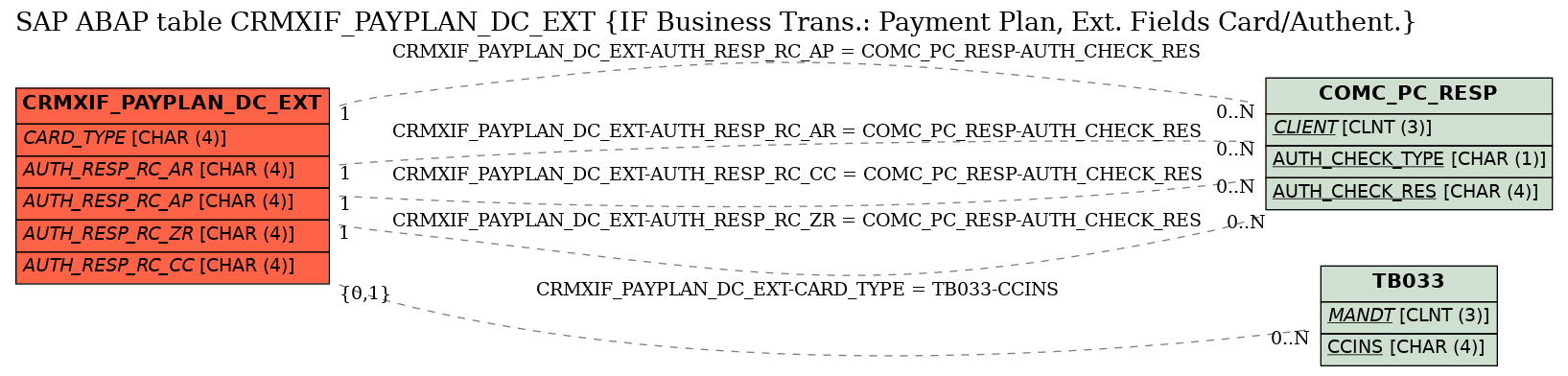

Structure	CRMXIF_PAYPLAN_DC_EXT	Table Relationship Diagram
Short Description	IF Business Trans.: Payment Plan, Ext. Fields Card/Authent.

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IF Business Transaction: Payment Cards, External Card Fields
2	CARD_TYPE	☐	CC_INSTITUTE	CC_INSTITUTE	CHAR	4	0	Payment card type	TB033
3	CARD_NO	☐	CCNUM	CCNUM	CHAR	25	0	Payment cards: Card number	*
4	CARD_SUFFIX	☐	COMT_CARD_SUFFIX	CHAR10	CHAR	10	0	Sequential Number of Payment Card
5	CARD_REF_NO	☐	COMT_CARD_REF_NO	COM_CARD_REF_NO	CHAR	25	0	Payment Cards: Reference Number of a Payment Card
6	CARD_EXP_DATE	☐	CC_DATBI	DATUM	DATS	8	0	Payment Cards: Valid To
7	CARD_HOLDER	☐	CCNAME	TEXT40	CHAR	40	0	Payment Cards: Name of Cardholder
8	CARD_MERCH_ID	☐	COMT_CARD_MERCH_ID	COM_MERCH_ID_CC	CHAR	15	0	Identification of Merchant at Clearing House	*
9	CARD_DEFAULT	☐	COMT_CARD_DEFAULT	COM_BOOLEAN_PP	CHAR	1	0	Payment Cards: Indicator for a Standard Card
10	CARD_CVV	☐	COMT_CARD_CVV	COM_CARD_CVV	CHAR	6	0	Payment Cards: Card Verification Value
11	CARD_CVV_STATUS	☐	COMT_CARD_CVV_STATUS	COM_CARD_CVV_STATUS	CHAR	1	0	Payment Cards: State of Card Verification Value
12	CARD_CVV_CONTROL	☐	COMT_CARD_CVV_CONTROL	COM_CARD_CVV_CONTROL	CHAR	1	0	Payment Cards: Control Field for Card Verification Value
13	CARD_GUID	☐	CRMXIF_OBJECT_GUID	SYSUUID_C	CHAR	32	0	Internal Key
14	CARD_HASH	☐	COMT_CARD_HASH	COM_CARD_HASH	CHAR	32	0	Payment Cards: Hash Value of a Card Number
15	CARD_CRYP_NO	☐	COMT_CARD_CRYP_NO	COM_CARD_CRYP_NO	RAW	255	0	Payment Cards: Encoded Card Number
16	CARD_NO_LENGTH	☐	COMT_CARD_NO_LENGTH	COM_CARD_NO_LENGTH	INT4	10	0	Payment Cards: Length of the Encoded Card Number
17	.INCLUDE	☐				0	0	IF Business Transaction: Payment Cards, External Field Auth.
18	AUTH_LIMIT	☐	BAPICURR_D	BAPICURR	DEC	23	4	Currency amount in BAPI interfaces
19	AUTH_AMOUNT	☐	BAPICURR_D	BAPICURR	DEC	23	4	Currency amount in BAPI interfaces
20	AUTH_NO	☐	COMT_AUTH_NO	CHAR10	CHAR	10	0	Payment Cards: Authorization Number
21	AUTH_REF	☐	COMT_AUTH_REF	CHAR30	CHAR	30	0	Authorization Reference Number of Clearing House
22	AUTH_PRE	☐	COMT_AUTH_PRE	XFELD	CHAR	1	0	Payment Cards: Preauthorization
23	AUTH_TIMESTAMP	☐	COMT_AUTH_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Date and Time of Authorization
24	AUTH_CALL_STATUS	☐	COMT_AUTH_CALL_STATUS	COM_AUTH_CALL_STATUS	CHAR	1	0	Payment Cards: Status when Calling Clearing House
25	AUTH_RESP	☐	COMT_AUTH_RESP	COM_AUTH_RESP	CHAR	1	0	Response to Authorization Result
26	AUTH_REQ_AMOUNT	☐	BAPICURR_D	BAPICURR	DEC	23	4	Currency amount in BAPI interfaces
27	AUTH_TIMESTAMPIO	☐	COMT_AUTH_TIMESTAMPIO	TZTF_IO_FIELD	CHAR	26	0	Date and Time of Authorization in Display Format
28	AUTH_RESP_RC_AR	☐	COMT_AUTH_RESP_RC_AR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Result)	COMC_PC_RESP
29	AUTH_RESP_RC_AP	☐	COMT_AUTH_RESP_RC_AP	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Approval)	COMC_PC_RESP
30	AUTH_RESP_RC_ZR	☐	COMT_AUTH_RESP_RC_ZR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (ZIP Code Result)	COMC_PC_RESP
31	AUTH_RESP_RC_CC	☐	COMT_AUTH_RESP_RC_CC	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Card Check (Response Code)	COMC_PC_RESP
32	AUTH_RESP_RC_CVV	☐	COMT_AUTH_RESP_RC_CVV	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result Check of the Card Verification Code
33	AUTH_RESP_CODE	☐	COMT_AUTH_RESP_CODE	TEXT40	CHAR	40	0	Results Text of Authorization

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMXIF_PAYPLAN_DC_EXT	AUTH_RESP_RC_AP	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
2	CRMXIF_PAYPLAN_DC_EXT	AUTH_RESP_RC_AR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
3	CRMXIF_PAYPLAN_DC_EXT	AUTH_RESP_RC_CC	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
4	CRMXIF_PAYPLAN_DC_EXT	AUTH_RESP_RC_ZR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
5	CRMXIF_PAYPLAN_DC_EXT	CARD_TYPE	TB033	CCINS	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
