SAP ABAP Table CRMT_WR_BRF_AC1_ALV (Action: Set Web Request Data - ALV Structure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ISE-WBF (Application Component) Web Forms
     ⤷ CRM_SERVICE_WEBREQUEST_BRF (Package) Business Rule Framework Objectives for Web Requests

Basic Data

Table Category	INTTAB	Structure

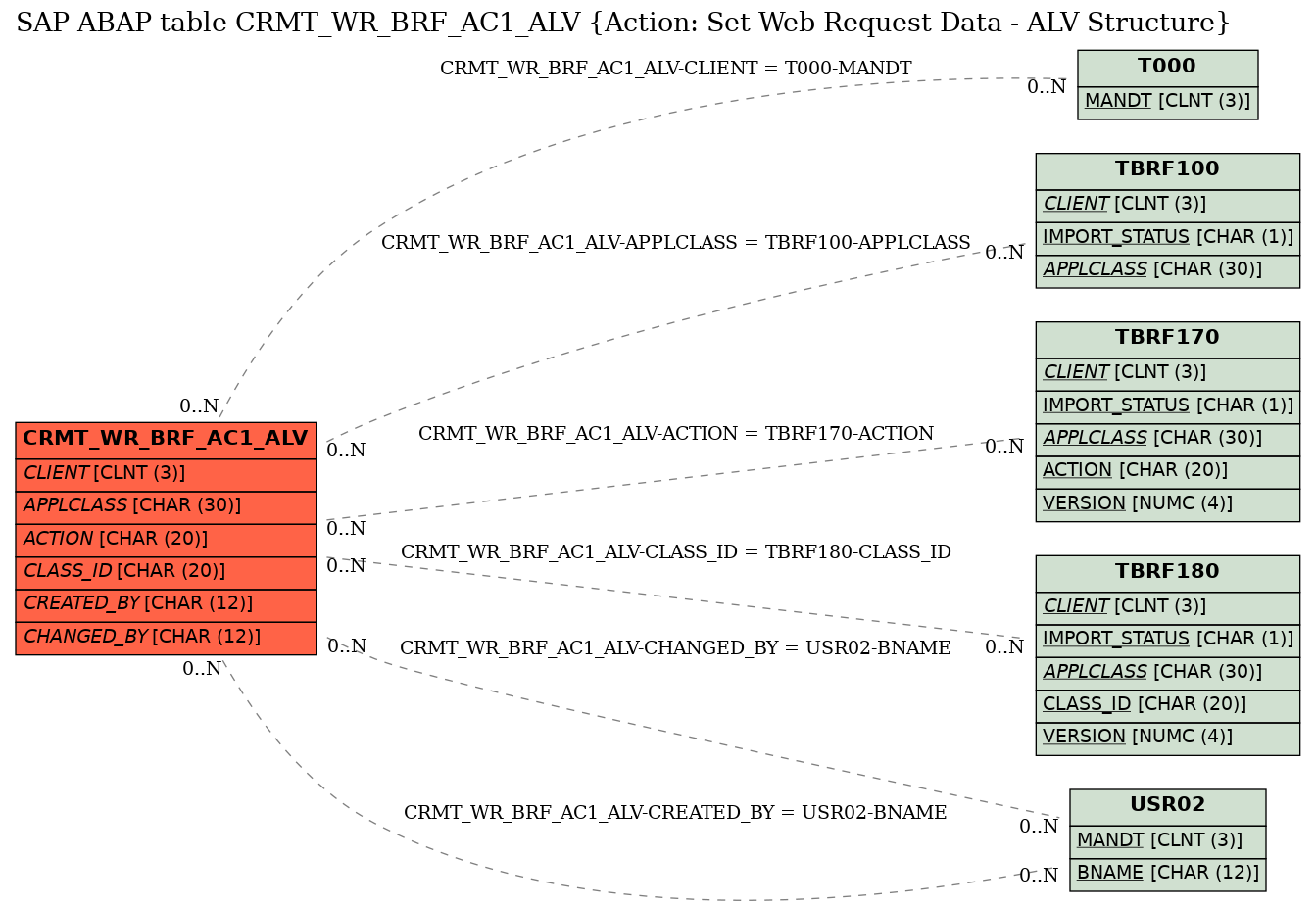

Structure	CRMT_WR_BRF_AC1_ALV	Table Relationship Diagram
Short Description	Action: Set Web Request Data - ALV Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BRF: Subaction - ALV Structure
2	.INCLUDE	☐				0	0	BRF: Control Fields for ALV Lists
3	MARKFIELD	☐	BRF_MARKFIELD	BRF_MARKFIELD	CHAR	1	0	Checkbox (for ALV Lists)
4	.INCLUDE	☐				0	0	BRF: Subactions
5	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
6	IMPORT_STATUS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
7	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	TBRF100
8	ACTION	☐	BRF_ACTION	BRF_ACTION	CHAR	20	0	Name of Action	TBRF170
9	VERSION	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
10	CLASS_ID_IS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
11	CLASS_ID	☐	BRF_CLASS_ID	BRF_CLASS_ID	CHAR	20	0	Key of Implementing Class	TBRF180
12	CLASS_ID_VS	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
13	N_ON_TRUE_ACT	☐	BRF_N_ON_TRUE_ACTIONS	BRF_COUNT	INT4	10	0	Number of Subactions for Do Part of Action
14	N_ON_FALSE_ACT	☐	BRF_N_ON_FALSE_ACTIONS	BRF_COUNT	INT4	10	0	Number of Subactions for Undo Section of an Action
15	.INCLUDE	☐				0	0	BRF: Administration Information
16	CREATED_BY	☐	BRF_CREATED_BY	XUBNAME	CHAR	12	0	BRF: Version Created by	USR02
17	CREATED_AT	☐	BRF_CREATED_AT	TZNTSTMPS	DEC	15	0	Version Created On/At
18	CHANGED_BY	☐	BRF_CHANGED_BY	XUBNAME	CHAR	12	0	BRF: Version Changed By	USR02
19	CHANGED_AT	☐	BRF_CHANGED_AT	TZNTSTMPS	DEC	15	0	Version Changed On/At
20	DELETED	☐	BRF_XDELETED	BRF_BOOLE_D	CHAR	1	0	Obsolete (BRF: Mark Entry for Physical Deletion)
21	TCONTEXT	☐	BRF_TCONTEXT	BRF_TCONTEXT	CHAR	20	0	Context	*
22	SEQUENCE_NUMBER	☐	BRF_SEQUENCE_NUMBER	BRF_SEQUENCE_NUMBER	NUMC	4	0	Sequence Number
23	LANGU	☐	LANGU	SPRAS	LANG	1	0	Language Key	*
24	SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
25	WR_FIELD	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	*
26	WR_VALUE	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_WR_BRF_AC1_ALV	ACTION	TBRF170	ACTION
2	CRMT_WR_BRF_AC1_ALV	APPLCLASS	TBRF100	APPLCLASS
3	CRMT_WR_BRF_AC1_ALV	CHANGED_BY	USR02	BNAME
4	CRMT_WR_BRF_AC1_ALV	CLASS_ID	TBRF180	CLASS_ID
5	CRMT_WR_BRF_AC1_ALV	CLIENT	T000	MANDT
6	CRMT_WR_BRF_AC1_ALV	CREATED_BY	USR02	BNAME

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
