SAP ABAP Table CRMT_TC_SCHEMA_CUST (TC: Resource Assignment schema customizing)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ITT-ETC-BTX (Application Component) Business Transaction
     ⤷ CRM_TC_BTX_TECH_RES (Package) Toll Collection: Technical resources extension

Basic Data

Table Category	INTTAB	Structure

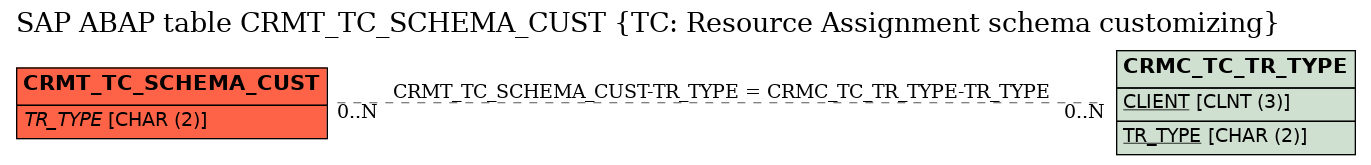

Structure	CRMT_TC_SCHEMA_CUST	Table Relationship Diagram
Short Description	TC: Resource Assignment schema customizing

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	LINE_TYPE	☐	CRMT_TC_LINE_TYPE	CRM_TC_LINE_TYPE	CHAR	1	0	Technical Resource Line Type
2	.INCLUDE	☐				0	0	TC: Resource assignment schema data
3	TR_TYPE	☐	CRMT_TC_TR_TYPE	CRM_TC_TR_TYPE	CHAR	2	0	Technical Resource Type	CRMC_TC_TR_TYPE
4	QUAN_MIN	☐	CRMT_TC_MIN_QUAN	CRM_TC_MIN_QUAN	NUMC	1	0	Toll collection: Minimum Number of Resources
5	QUAN_MAX	☐	CRMT_TC_MAX_QUAN	CRM_TC_RES_QUAN	NUMC	3	0	Toll Collection: Maximum Number of Resources
6	LANGU	☐	LANGU	SPRAS	LANG	1	0	Language Key	*
7	TR_TYPE_TEXT	☐	CRMT_TC_TEXT	TEXT40	CHAR	40	0	Toll Collection: Short Text / Description
8	TR_TYPE_ORDER	☐	CRMT_TC_TR_ORDER		NUMC	3	0	Order Criteria for Technical Resources in Assignment Schema
9	CSTIC_MIN	☐	CRMT_TC_CSTIC_MIN	CHAR40	CHAR	40	0	Characteristic Name to Obtain Minimum Value From
10	CSTIC_MAX	☐	CRMT_TC_CSTIC_MAX	CHAR40	CHAR	40	0	Characteristic Name to Obtain Maximum Value From

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_TC_SCHEMA_CUST	TR_TYPE	CRMC_TC_TR_TYPE	TR_TYPE	KEY

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
