SAP ABAP Table CRMT_TC_PCARD (TC: Payment cards in CVV check)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ITT-ETC-BTX (Application Component) Business Transaction
     ⤷ CRM_TC_BTX_CONT (Package) Toll Collection: Contract

Basic Data

Table Category	INTTAB	Structure

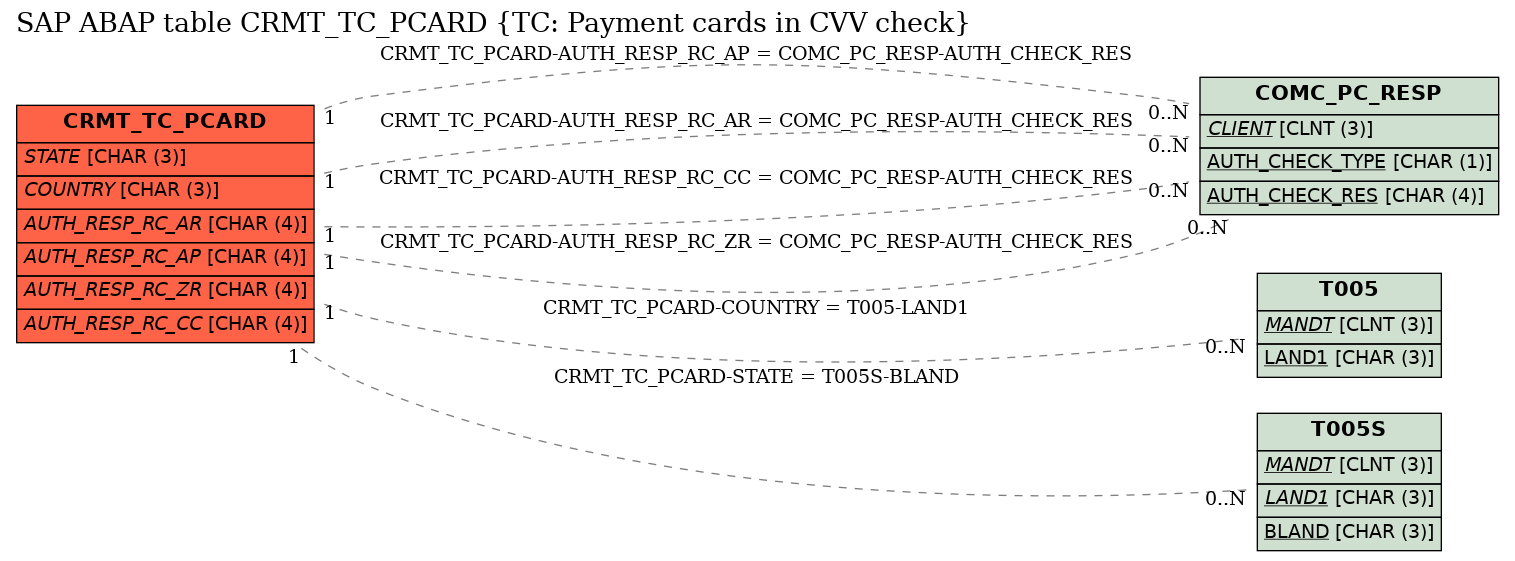

Structure	CRMT_TC_PCARD	Table Relationship Diagram
Short Description	TC: Payment cards in CVV check

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CCARD_ID	☐	CCNUM	CCNUM	CHAR	25	0	Payment cards: Card number	*
2	BP_GUID	☐	CRMT_BP_GUID	SYSUUID	RAW	16	0	Data Element for BP GUID- Notification Manager
3	CARD_CVV	☐	COMT_CARD_CVV	COM_CARD_CVV	CHAR	6	0	Payment Cards: Card Verification Value
4	CARD_TYPE	☐	CC_INSTITUTE	CC_INSTITUTE	CHAR	4	0	Payment card type	*
5	CARD_NO	☐	CCNUM	CCNUM	CHAR	25	0	Payment cards: Card number	*
6	CARD_GUID	☐	CARD_GUID_MAP	SMAPGUID	CHAR	32	0	Mapping DTEL for Payment Card GUID
7	CARD_EXP_DATE	☐	CC_DATBI	DATUM	DATS	8	0	Payment Cards: Valid To
8	CARD_HOLDER	☐	CCNAME	TEXT40	CHAR	40	0	Payment Cards: Name of Cardholder
9	CARD_MERCH_ID	☐	COMT_CARD_MERCH_ID	COM_MERCH_ID_CC	CHAR	15	0	Identification of Merchant at Clearing House	*
10	CHECK_RESULT	☐	CRMT_TC_CVV_RESULT	CRM_TC_CVV_RESULT	CHAR	1	0	TC: CVV check result
11	.INCLUDE	☐				0	0	Payment Cards: Address Data for External Communication
12	NAME_FIRST	☐	COMT_CARD_NAME_FIRST	NAME	CHAR	35	0	Payment Cards: First Name
13	NAME_LAST	☐	COMT_CARD_NAME_LAST	NAME	CHAR	35	0	Payment Cards: Last Name
14	CITY	☐	COMT_CARD_CITY_NAME	COM_CARD_LOCATION	CHAR	35	0	Payment Cards: City
15	DISTRICT	☐	COMT_CARD_DISTRICT	COM_CARD_LOCATION	CHAR	35	0	Payment Cards: District
16	STREET	☐	COMT_CARD_STREET	COM_CARD_STREET	CHAR	35	0	Payment Cards: Street and Street Number
17	ZIPCODE	☐	COMT_CARD_ZIPCODE	PSTLZ	CHAR	10	0	Payment Cards: Postal Code / ZIP Code
18	STATE	☐	COMT_CARD_STATE	REGIO	CHAR	3	0	Payment Cards: Region (State, Province)	T005S
19	COUNTRY	☐	COMT_CARD_COUNTRY	LAND1	CHAR	3	0	Payment Cards: Country Key	T005
20	.INCLUDE	☐				0	0	Payment Cards: Return Code from Clearing House
21	AUTH_RESP_RC_AR	☐	COMT_AUTH_RESP_RC_AR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Result)	COMC_PC_RESP
22	AUTH_RESP_RC_AP	☐	COMT_AUTH_RESP_RC_AP	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Approval)	COMC_PC_RESP
23	AUTH_RESP_RC_ZR	☐	COMT_AUTH_RESP_RC_ZR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (ZIP Code Result)	COMC_PC_RESP
24	AUTH_RESP_RC_CC	☐	COMT_AUTH_RESP_RC_CC	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Card Check (Response Code)	COMC_PC_RESP
25	.INCLUDE	☐				0	0	Payment Card: Answer from Clearing House Regard. Check Field
26	AUTH_RESP_RC_CVV	☐	COMT_AUTH_RESP_RC_CVV	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result Check of the Card Verification Code
27	AUTH_RESP_CODE	☐	COMT_AUTH_RESP_CODE	TEXT40	CHAR	40	0	Results Text of Authorization

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_TC_PCARD	AUTH_RESP_RC_AP	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
2	CRMT_TC_PCARD	AUTH_RESP_RC_AR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
3	CRMT_TC_PCARD	AUTH_RESP_RC_CC	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
4	CRMT_TC_PCARD	AUTH_RESP_RC_ZR	COMC_PC_RESP	AUTH_CHECK_RES	REF	1	CN
5	CRMT_TC_PCARD	COUNTRY	T005	LAND1	REF	1	CN
6	CRMT_TC_PCARD	STATE	T005S	BLAND	REF	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
