SAP ABAP Table CRMT_SRV_SUBJECT_DB (CRMT Service : Database Buffer subject)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-CAT (Application Component) Categorization and Reference Object in Transactions
     ⤷ CRM_SERVICE_REFOBJ (Package) CRM: Service Reference Object-Subject

Basic Data

Table Category	INTTAB	Structure

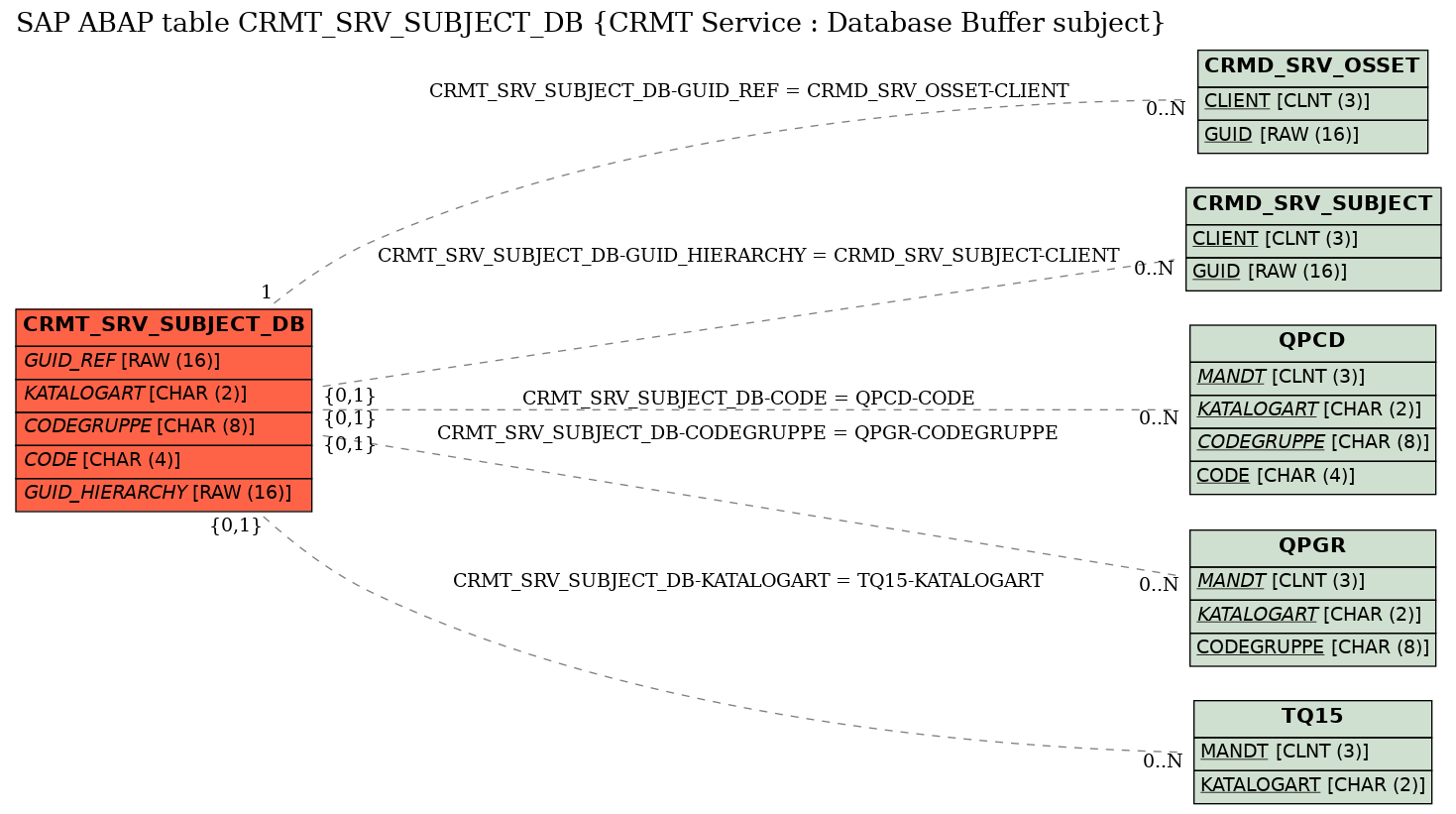

Structure	CRMT_SRV_SUBJECT_DB	Table Relationship Diagram
Short Description	CRMT Service : Database Buffer subject

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Subject
2	.INCLUDE	☐				0	0	One Order: Key Fields
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	.INCLUDE	☐				0	0	CRM Service: Structure Subject Internal Fields
6	GUID_REF	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_OSSET
7	USERNAME	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
8	TIMESTAMP	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)
9	.INCLUDE	☐				0	0	CRM Service: Structure Subject External Fields
10	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
11	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
12	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
13	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
14	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
15	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
16	GUID_HIERARCHY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_SUBJECT
17	SORT	☐	CRMT_SORT	CRM_SORT	INT2	5	0	Sort Field
18	EXT_CODE	☐	CRMT_TSRV_EXT_CODE	CRMT_TSRV_EXT_CODE	CHAR	40	0	Code in External System
19	ASP_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
20	CAT_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
21	KATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
22	NOREC_FLAG	☐	CRMT_NOREC	CRM_BOOLEAN	CHAR	1	0	Entry does not Exist in Database

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SRV_SUBJECT_DB	CODE	QPCD	CODE	REF	C	CN
2	CRMT_SRV_SUBJECT_DB	CODEGRUPPE	QPGR	CODEGRUPPE	REF	C	CN
3	CRMT_SRV_SUBJECT_DB	GUID_HIERARCHY	CRMD_SRV_SUBJECT	CLIENT	REF	C	CN
4	CRMT_SRV_SUBJECT_DB	GUID_REF	CRMD_SRV_OSSET	CLIENT	KEY	1	CN
5	CRMT_SRV_SUBJECT_DB	KATALOGART	TQ15	KATALOGART	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in
