SAP ABAP Table CRMT_SRV_CMG_LINKS_BW (Extract Structure for BW Extraction of Linked Case Objects)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ANA-SRV-BW (Application Component) BW Data Exchange
     ⤷ CRM_SERVICE_CMG_BW (Package) Package for Objects for Case Replication in BW

Basic Data

Table Category	INTTAB	Structure

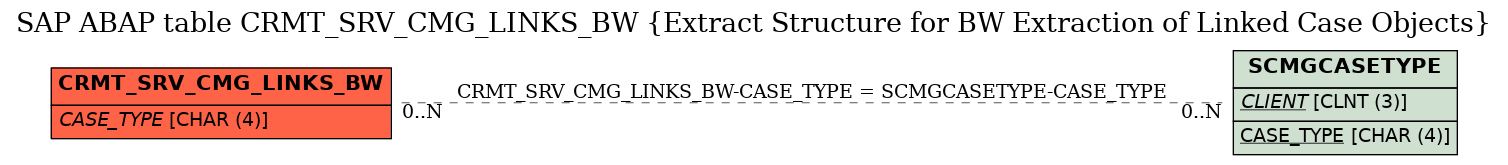

Structure	CRMT_SRV_CMG_LINKS_BW	Table Relationship Diagram
Short Description	Extract Structure for BW Extraction of Linked Case Objects

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
2	CASE_GUID	☐	SCMG_CASE_GUID	SYSUUID_C	CHAR	32	0	Technical Case Key (Case GUID)
3	CASE_TYPE	☐	SCMGCASE_TYPE	SCMGCASE_TYPE	CHAR	4	0	Case Type	SCMGCASETYPE
4	BOR_TYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	*
5	BOR_KEY	☐	SWO_TYPEID	SWO_TYPEID	CHAR	70	0	Object key
6	ANCHOR	☐	SRMPPRETYP	SRMPPRETYP	CHAR	2	0	POID - POID Relation Type for Areas
7	LOG_SYSTEM	☐	COMT_LOGSYS	LOGSYS	CHAR	10	0	Original System	*
8	CRM_REASON	☐	TEXT60	TEXT60	CHAR	60	0	Text Field of Length 60
9	CRM_PARTNER_FCT	☐	COMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
10	RECORDMODE	☐	RODMUPDMOD	RODMUPDMOD	CHAR	1	0	BW Delta Process: Record Mode

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SRV_CMG_LINKS_BW	CASE_TYPE	SCMGCASETYPE	CASE_TYPE	KEY

History

Last changed by/on	SAP	20041011
SAP Release Created in	400
