SAP ABAP Table CRMT_SHIPPING_EXT (Shipping Set: Stucture with External Fields)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-SLO (Application Component) Sales Transaction
     ⤷ CRM_SHIPPING (Package) CRM Shipping Data

Basic Data

Table Category	INTTAB	Structure

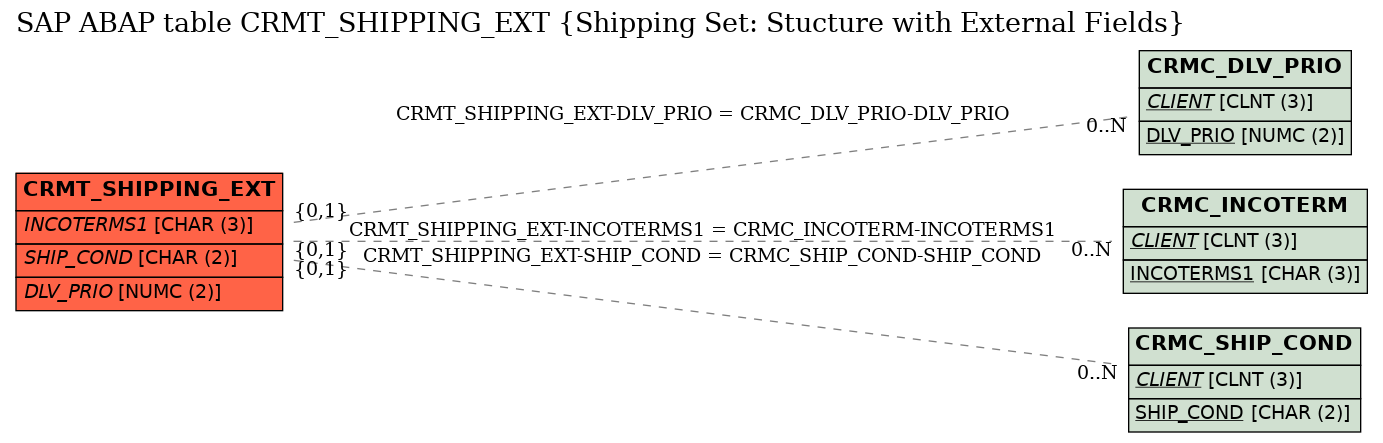

Structure	CRMT_SHIPPING_EXT	Table Relationship Diagram
Short Description	Shipping Set: Stucture with External Fields

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	INCOTERMS1	☐	CRMT_INCOTERMS1	CRM_INCOTERMS1	CHAR	3	0	Incoterms (Part 1)	CRMC_INCOTERM
2	INCOTERMS2	☐	CRMT_INCOTERMS2	CRM_INCOTERMS2	CHAR	28	0	Incoterms (Part 2)
3	SHIP_COND	☐	CRMT_SHIP_COND	CRM_SHIP_COND	CHAR	2	0	Shipping Conditions	CRMC_SHIP_COND
4	DELI_UNLIM_TOL	☐	CRMT_DELI_UNLIM_TOL	CRM_BOOLEAN	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
5	OVER_DLV_TOL	☐	CRMT_OVER_DLV_TOL	PRZ21	DEC	3	1	Overdelivery Tolerance Limit
6	UNDER_DLV_TOL	☐	CRMT_UNDER_DLV_TOL	PRZ21	DEC	3	1	Underdelivery Tolerance Limit
7	DLV_PRIO	☐	CRMT_DLV_PRIO	CRM_DLV_PRIO	NUMC	2	0	Delivery Priority	CRMC_DLV_PRIO
8	ORDERCOMBIND	☐	CRMT_ORDERCOMBIND	CRM_BOOLEAN	CHAR	1	0	Indicator: Order Combination
9	PART_DLV	☐	CRMT_PART_DLV	CRM_PART_DLV	CHAR	1	0	Delivery Control
10	DLV_GROUP	☐	CRMT_DLV_GROUP	CRMT_DLV_GROUP	NUMC	3	0	Delivery Group (Items are Delivered Together)
11	DELIVERY_BLOCK	☐	CRMT_BUS_DEL_BLOCK_REASON	CRMT_BUS_DEL_BLOCK_REASON	CHAR	2	0	Business Partner (CRM): Delivery Block Reason	*
12	PART_DLV_ITM	☐	CRMT_PART_DLV_ITM	CRM_PART_DLV_ITM	CHAR	1	0	Delivery Control (Item)
13	TRANS_MOT	☐	CRMT_TRANS_MOT	CRM_TRANS_MOT	CHAR	2	0	Mode of Transport	*
14	GEOROUTE	☐	CRMT_GEOROUTE	CRM_GEOROUTE	CHAR	10	0	Route
15	DIRECT_SHIP	☐	CRMT_DIRECT_SHIP	FLAG	CHAR	1	0	Direct Delivery Without Consolidation
16	TRANS_MEANS	☐	CRMT_TRANS_MEANS	CRM_TRANS_MEANS	CHAR	10	0	Means of Transport (from SCM System)
17	INV_BEFORE_GI	☐	CRMT_BEFORE_LOADING	CRM_BEFORE_LOADING	CHAR	1	0	Invoice Before Goods Issue (IBGI)
18	MAX_PL_DLV	☐	CRMT_MAX_PL_DLV		DEC	1	0	Maximum number of partial deliveries allowed per item
19	HU_EXID	☐	CRMT_EX_HANDLING_UNIT	CRM_EX_HU	CHAR	20	0	External Handling Unit ID
20	PACK_MAT	☐	CRMT_PACK_MAT	MATNR	CHAR	18	0	Packaging Material
21	.INCLUDE	☐				0	0	EEW Extension
22	SHIPPING_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
23	.INCLUDE	☐				0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SHIPPING_EXT	DLV_PRIO	CRMC_DLV_PRIO	DLV_PRIO	REF	C	CN
2	CRMT_SHIPPING_EXT	INCOTERMS1	CRMC_INCOTERM	INCOTERMS1	REF	C	CN
3	CRMT_SHIPPING_EXT	SHIP_COND	CRMC_SHIP_COND	SHIP_COND	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in
