SAP ABAP Table CRMT_SERVICEPLAN_I_BADI (Business Add-In Communication Structure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-SPL (Application Component) Service Plan
     ⤷ CRM_SERVICEPLAN_I (Package) CRM Service Plan Item

Basic Data

Table Category	INTTAB	Structure

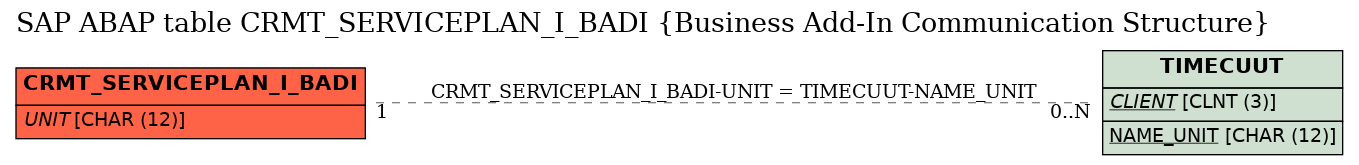

Structure	CRMT_SERVICEPLAN_I_BADI	Table Relationship Diagram
Short Description	Business Add-In Communication Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Structure of Service Plan with Communciation Fields
2	REF_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
3	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	.INCLUDE	☐				0	0	Service Plan - Structure of External Fields
5	.INCLUDE	☐				0	0	Service Plan Data About Type of Cycle
6	CYCLE_STEP	☐	CRMT_SERVICECYCLE_STEP	CRMT_SERVICECYCLE_STEP	NUMC	10	0	Service Interval Number
7	.INCLUDE	☐				0	0	Service Plan Data for Time-Based Cycles
8	CYCLE	☐	CRMT_SERVICECYCLE	CRMT_SERVICECYCLE	DEC	13	0	Value of Service Interval
9	UNIT	☐	TIMEUNITDU	TIMEUNITNA	CHAR	12	0	Default Value for Time Unit	TIMECUUT
10	TIMESTAMP	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
11	TIME_OUT	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
12	RULE_NAME	☐	CRMT_DATES_RULE_NAME	TIMENAME	CHAR	12	0	Semantic Name of a Date Rule
13	RULE_GUID	☐	CRMT_DATES_RULE_GUID	TIMERULEID	RAW	16	0	Rule GUID to Calculate a Date	*
14	.INCLUDE	☐				0	0	Service Plan Data for Counter-Based Cycles
15	COUNTER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
16	.INCLUDE	☐				0	0	Service Plan - Template Reference
17	TEMPLATE_ID	☐	CRMT_SRVPLAN_TEMPLATE_NR	CRM_OBJECT_ID	CHAR	10	0	Transaction Number of Template
18	TEMPLATE_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
19	.INCLUDE	☐				0	0	Service Plan - Structure of Dynamic External Fields
20	SAVE_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
21	.INCLUDE	☐				0	0	Dynamic Fields (Can Only Be Changed Internally)
22	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
23	COUNTER_UNIT	☐	CRMT_MPK_UNIT	MEINS	UNIT	3	0	Unit of Measurement for Counter	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SERVICEPLAN_I_BADI	UNIT	TIMECUUT	NAME_UNIT	REF	1	CN

History

Last changed by/on	SAP	20040218
SAP Release Created in	400
