SAP ABAP Table CRMT_SERVICE_OS_API_OUT (API Structure Subject Set (Output))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-SVO (Application Component) Service Order
     ⤷ CRM_SERVICE_API (Package) API Implementation for Service Documents

Basic Data

Table Category	INTTAB	Structure

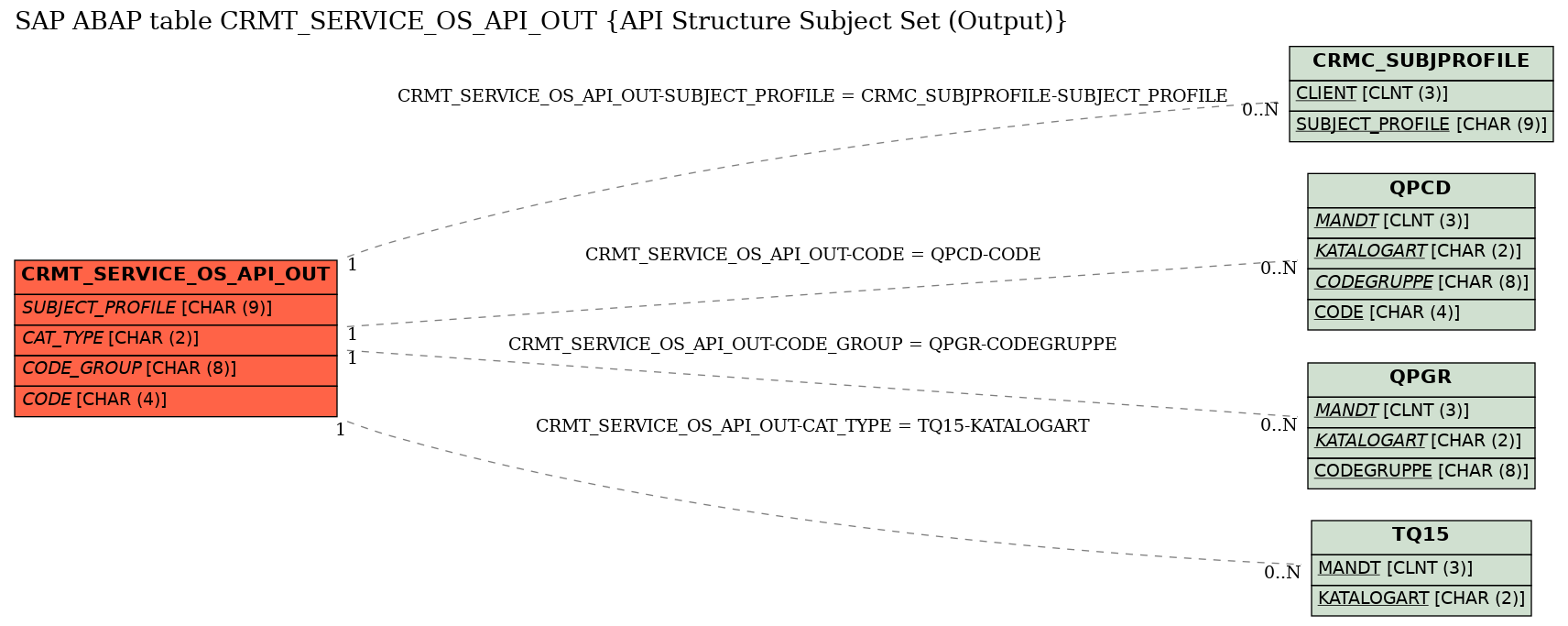

Structure	CRMT_SERVICE_OS_API_OUT	Table Relationship Diagram
Short Description	API Structure Subject Set (Output)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	API Structure of Service Documents (Subject)
2	REF_KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
3	REF_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	SUBJECT_PROFILE	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	CRMC_SUBJPROFILE
5	CAT_TYPE	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
6	CODE_GROUP	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
7	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
8	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
9	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
10	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
11	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
12	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
13	.INCLUDE	☐				0	0	API Structure of Service Documents (Subject)
14	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
15	KATALOGTXT	☐	QTXTCATALG	QKURZTEXT	CHAR	40	0	Short Text for the Catalog
16	KURZTEXT	☐	QKTEXTGRCD	QKURZTEXT80	CHAR	80	0	Code Group Short Text
17	CODETEXT	☐	QTXT_CODE	QKURZTEXT	CHAR	40	0	Short Text for Code
18	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SERVICE_OS_API_OUT	CAT_TYPE	TQ15	KATALOGART	KEY	1	CN
2	CRMT_SERVICE_OS_API_OUT	CODE	QPCD	CODE	KEY	1	CN
3	CRMT_SERVICE_OS_API_OUT	CODE_GROUP	QPGR	CODEGRUPPE	KEY	1	CN
4	CRMT_SERVICE_OS_API_OUT	SUBJECT_PROFILE	CRMC_SUBJPROFILE	SUBJECT_PROFILE	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	310
