SAP ABAP Table CRMT_REPORT_SHIPPING_ITEM (Reporting Structure for CRMD_shipping)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-ANA-RFW (Application Component) Reporting Framework
     ⤷ CRM_REPORT (Package) Operative Reporting in CRM

Basic Data

Table Category	INTTAB	Structure

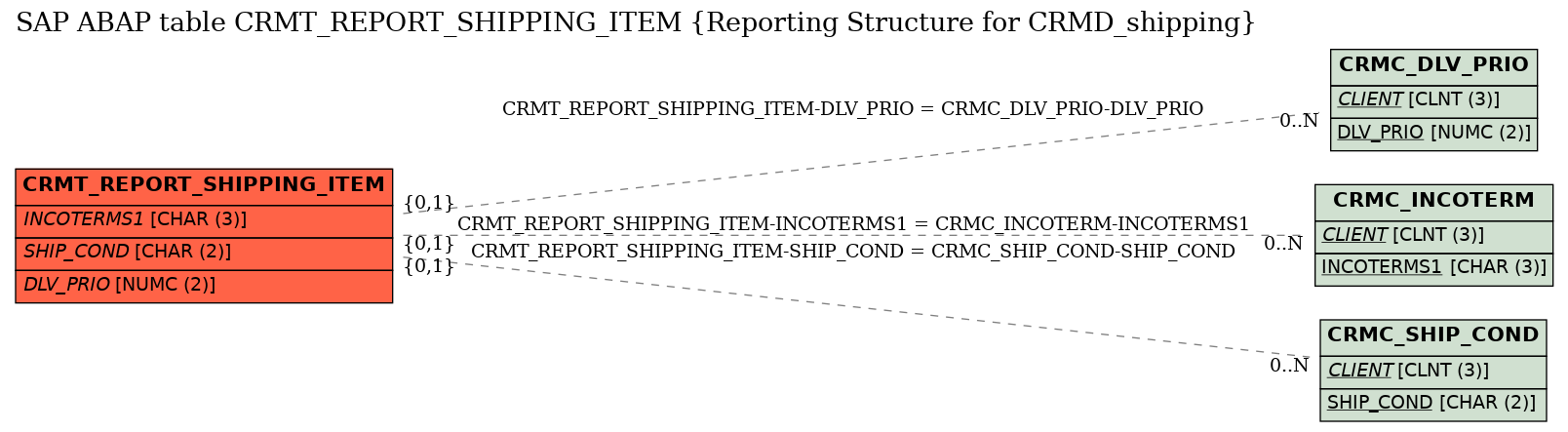

Structure	CRMT_REPORT_SHIPPING_ITEM	Table Relationship Diagram
Short Description	Reporting Structure for CRMD_shipping

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
2	.INCLUDE	☐				0	0	Business Transaction - Shipping Set
3	.INCLUDE	☐				0	0	One Order: Key Fields
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
5	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	.INCLUDE	☐				0	0	Shipping Set: Stucture with External Fields
7	INCOTERMS1	☐	CRMT_INCOTERMS1	CRM_INCOTERMS1	CHAR	3	0	Incoterms (Part 1)	CRMC_INCOTERM
8	INCOTERMS2	☐	CRMT_INCOTERMS2	CRM_INCOTERMS2	CHAR	28	0	Incoterms (Part 2)
9	SHIP_COND	☐	CRMT_SHIP_COND	CRM_SHIP_COND	CHAR	2	0	Shipping Conditions	CRMC_SHIP_COND
10	DELI_UNLIM_TOL	☐	CRMT_DELI_UNLIM_TOL	CRM_BOOLEAN	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
11	OVER_DLV_TOL	☐	CRMT_OVER_DLV_TOL	PRZ21	DEC	3	1	Overdelivery Tolerance Limit
12	UNDER_DLV_TOL	☐	CRMT_UNDER_DLV_TOL	PRZ21	DEC	3	1	Underdelivery Tolerance Limit
13	DLV_PRIO	☐	CRMT_DLV_PRIO	CRM_DLV_PRIO	NUMC	2	0	Delivery Priority	CRMC_DLV_PRIO
14	ORDERCOMBIND	☐	CRMT_ORDERCOMBIND	CRM_BOOLEAN	CHAR	1	0	Indicator: Order Combination
15	PART_DLV	☐	CRMT_PART_DLV	CRM_PART_DLV	CHAR	1	0	Delivery Control
16	DLV_GROUP	☐	CRMT_DLV_GROUP	CRMT_DLV_GROUP	NUMC	3	0	Delivery Group (Items are Delivered Together)
17	DELIVERY_BLOCK	☐	CRMT_BUS_DEL_BLOCK_REASON	CRMT_BUS_DEL_BLOCK_REASON	CHAR	2	0	Business Partner (CRM): Delivery Block Reason	*
18	PART_DLV_ITM	☐	CRMT_PART_DLV_ITM	CRM_PART_DLV_ITM	CHAR	1	0	Delivery Control (Item)
19	TRANS_MOT	☐	CRMT_TRANS_MOT	CRM_TRANS_MOT	CHAR	2	0	Mode of Transport	*
20	GEOROUTE	☐	CRMT_GEOROUTE	CRM_GEOROUTE	CHAR	10	0	Route
21	DIRECT_SHIP	☐	CRMT_DIRECT_SHIP	FLAG	CHAR	1	0	Direct Delivery Without Consolidation
22	TRANS_MEANS	☐	CRMT_TRANS_MEANS	CRM_TRANS_MEANS	CHAR	10	0	Means of Transport (from SCM System)
23	INV_BEFORE_GI	☐	CRMT_BEFORE_LOADING	CRM_BEFORE_LOADING	CHAR	1	0	Invoice Before Goods Issue (IBGI)
24	MAX_PL_DLV	☐	CRMT_MAX_PL_DLV		DEC	1	0	Maximum number of partial deliveries allowed per item
25	HU_EXID	☐	CRMT_EX_HANDLING_UNIT	CRM_EX_HU	CHAR	20	0	External Handling Unit ID
26	PACK_MAT	☐	CRMT_PACK_MAT	MATNR	CHAR	18	0	Packaging Material
27	.INCLUDE	☐				0	0	EEW Extension
28	SHIPPING_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
29	.INCLUDE	☐				0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_REPORT_SHIPPING_ITEM	DLV_PRIO	CRMC_DLV_PRIO	DLV_PRIO	REF	C	CN
2	CRMT_REPORT_SHIPPING_ITEM	INCOTERMS1	CRMC_INCOTERM	INCOTERMS1	REF	C	CN
3	CRMT_REPORT_SHIPPING_ITEM	SHIP_COND	CRMC_SHIP_COND	SHIP_COND	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
