SAP ABAP Table CRMT_MPK_MPOINT_FLOAT (Fields for UI to create/change/display a Mesuring Point)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-COU (Application Component) Counter
     ⤷ CRM_COUNTER (Package) Integration package for measuring point / counter

Basic Data

Table Category	INTTAB	Structure

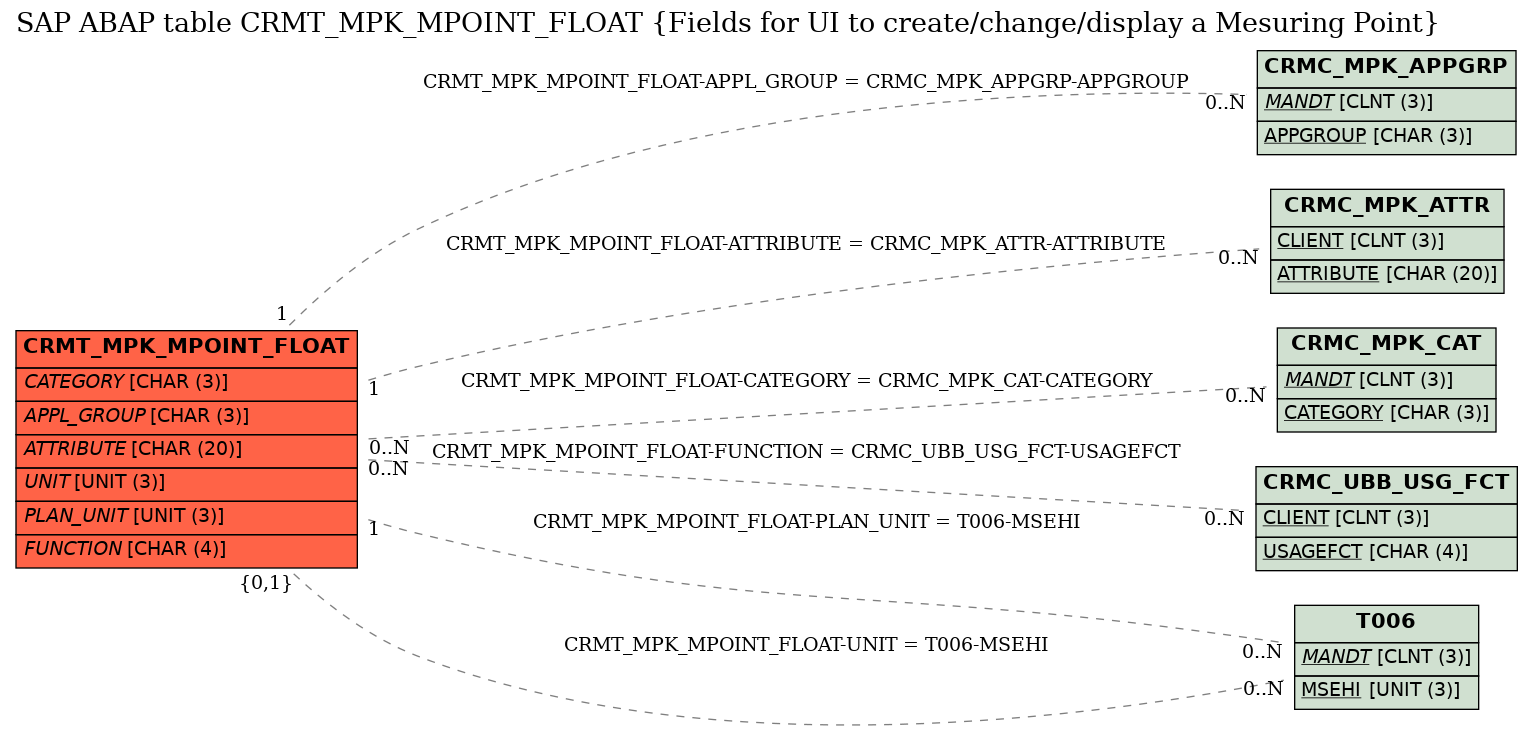

Structure	CRMT_MPK_MPOINT_FLOAT	Table Relationship Diagram
Short Description	Fields for UI to create/change/display a Mesuring Point

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Workstructure of Measuring Point
2	GUID	☐	CRMT_MPK_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a Kernel Object
3	.INCLUDE	☐				0	0	Fields Shared by DB and WRK Structures of Measuring Point
4	.INCLUDE	☐				0	0	Time and User Information
5	CREATED_AT	☐	CRMT_MPK_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
6	CREATED_BY	☐	CRMT_MPK_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
7	CHANGED_AT	☐	CRMT_MPK_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
8	CHANGED_BY	☐	CRMT_MPK_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
9	OBJECT_ID	☐	CRMT_MPK_OBJECT_ID_MPOINT	CRM_MPK_OBJECT_ID_MPOINT	CHAR	20	0	Counter Identifier
10	DESCRIPTION	☐	CRMT_MPK_DESCR	CRM_MPK_DESCR	CHAR	40	0	Counter Description
11	TEXT_EXISTS	☐	CRMT_MPK_TEXT_EXISTS	CRM_MPK_BOOLEAN	CHAR	1	0	Long Text Exists for this Object
12	CATEGORY	☐	CRMT_MPK_CATEGORY	CRM_MPK_CATEGORY	CHAR	3	0	Counter Category	CRMC_MPK_CAT
13	APPL_GROUP	☐	CRMT_MPK_APPGROUP	CRM_MPK_APPGROUP	CHAR	3	0	Application Group	CRMC_MPK_APPGRP
14	TYPE	☐	CRMT_MPK_TYPE	CRM_MPK_TYPE	NUMC	1	0	Counter Type
15	ATTRIBUTE	☐	CRMT_MPK_ATTRIBUTE	CRM_MPK_ATTRIBUTE	CHAR	20	0	Counter Attribute	CRMC_MPK_ATTR
16	UNIT	☐	CRMT_MPK_UNIT	MEINS	UNIT	3	0	Unit of Measurement for Counter	T006
17	DECIMALS	☐	CRMT_MPK_DECIMALS	CRM_MPK_DECIMALS	INT2	5	0	Number of Decimal Places in a Counter
18	PLAN_TIME	☐	CRMT_MPK_PLTIME	CRM_MPK_PLTIME	INT1	3	0	Planned Timeframe
19	PLAN_UNIT	☐	CRMT_MPK_UNIT_PLANNED	MEINS	UNIT	3	0	Planned Unit of Time	T006
20	STATUS	☐	CRMT_MPK_STATUS	CRM_MPK_STATUS	CHAR	1	0	Counter Status
21	STATUS_READING	☐	CRMT_MPK_STATUS_READING	CRM_MPK_STATUS_READING	CHAR	1	0	Reading Status of Counter
22	FUNCTION	☐	CRMT_UBB_USAGEFCT	CRM_UBB_USAGEFCT	CHAR	4	0	Usage Function	CRMC_UBB_USG_FCT
23	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
24	.INCLUDE	☐				0	0	EEW Include Measuring Points
25	EEW_MPK_MPOINT	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
26	.INCLUDE	☐				0	0
27	.INCLUDE	☐				0	0	Value-Fields for Work Structure
28	VALUE_MIN	☐	CRMT_MPK_VALUE_FLOAT		FLTP	16	16	Float value
29	VALUE_MIN_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
30	VALUE_MAX	☐	CRMT_MPK_VALUE_FLOAT		FLTP	16	16	Float value
31	VALUE_MAX_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
32	VALUE_PLAN	☐	CRMT_MPK_VALUE_FLOAT		FLTP	16	16	Float value
33	VALUE_PLAN_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
34	OVERFLOW	☐	CRMT_MPK_VALUE_FLOAT		FLTP	16	16	Float value
35	OVERFLOW_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
36	.INCLUDE	☐				0	0	Control-Fields for UI-Structure
37	TYPE_TXT	☐	CRMT_MPK_TYPE_TXT	CHAR30	CHAR	30	0	Counter Type Description
38	BTN_CNT_FORWARD	☐	CRMT_MPK_BOOLEAN	CRM_MPK_BOOLEAN	CHAR	1	0	Logical Variable
39	BTN_CNT_BACKWARD	☐	CRMT_MPK_BOOLEAN	CRM_MPK_BOOLEAN	CHAR	1	0	Logical Variable
40	MP_STATUS_TXT	☐	CRMT_MPK_STATUS_TEXT	CHAR30	CHAR	30	0	Counter Status Description
41	MP_ASSIGNED_TXT	☐	CRMT_MPK_STATUS_READING_TEXT	CHAR30	CHAR	30	0	Counter Assignment Status Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_MPK_MPOINT_FLOAT	APPL_GROUP	CRMC_MPK_APPGRP	APPGROUP	KEY	1	CN
2	CRMT_MPK_MPOINT_FLOAT	ATTRIBUTE	CRMC_MPK_ATTR	ATTRIBUTE	KEY	1	CN
3	CRMT_MPK_MPOINT_FLOAT	CATEGORY	CRMC_MPK_CAT	CATEGORY
4	CRMT_MPK_MPOINT_FLOAT	FUNCTION	CRMC_UBB_USG_FCT	USAGEFCT
5	CRMT_MPK_MPOINT_FLOAT	PLAN_UNIT	T006	MSEHI	REF	1	CN
6	CRMT_MPK_MPOINT_FLOAT	UNIT	T006	MSEHI	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
