SAP ABAP Table CRMT_MPK_COUNTER_UI (Standard Counters - SAP GUI)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-COU (Application Component) Counter
     ⤷ CRM_MPK (Package) Measuring Point Kernel

Basic Data

Table Category	INTTAB	Structure

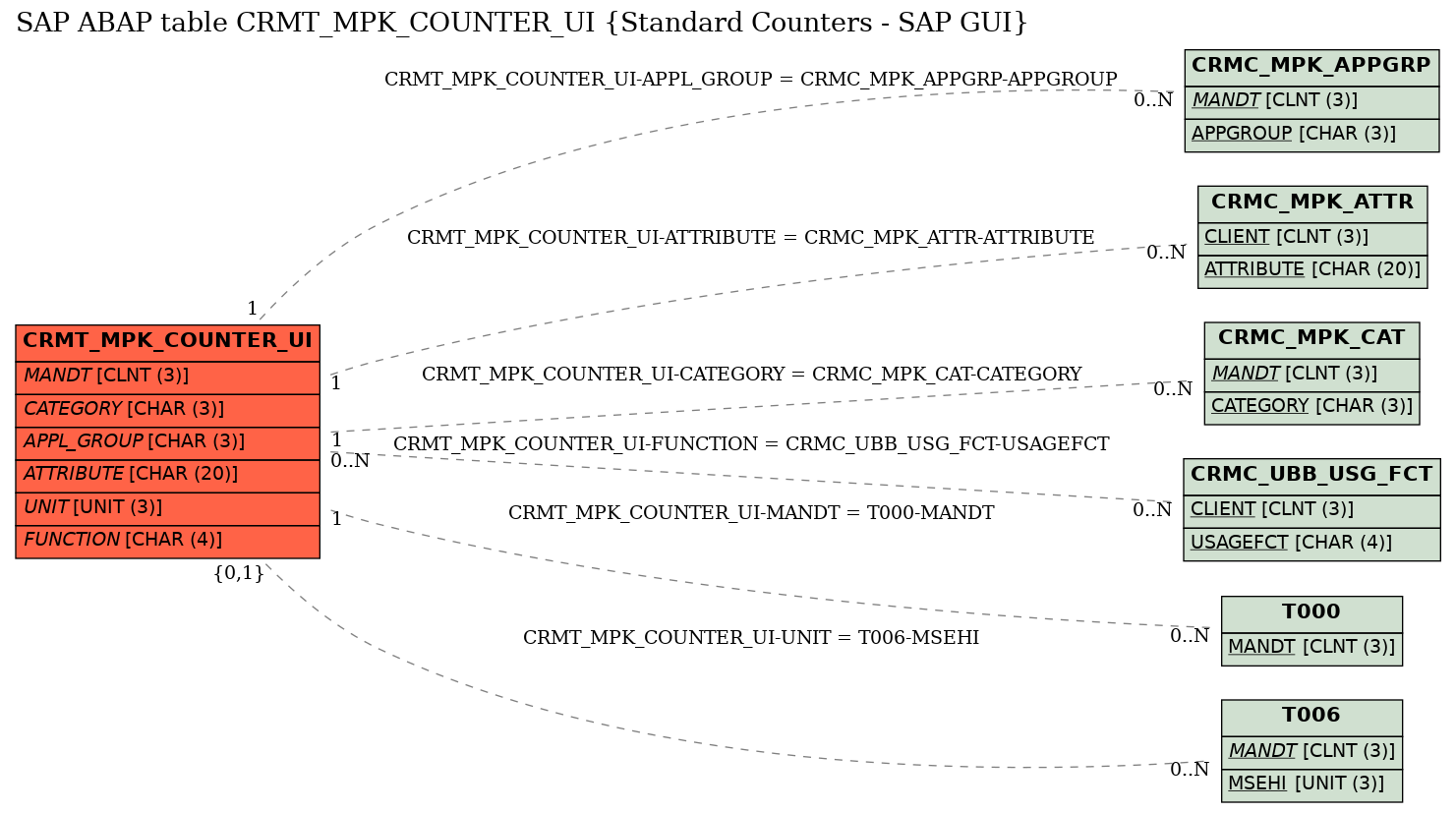

Structure	CRMT_MPK_COUNTER_UI	Table Relationship Diagram
Short Description	Standard Counters - SAP GUI

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Measuring Point
2	.INCLUDE	☐				0	0	Key Fields
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	GUID	☐	CRMT_MPK_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a Kernel Object
5	.INCLUDE	☐				0	0	Fields Shared by DB and WRK Structures of Measuring Point
6	.INCLUDE	☐				0	0	Time and User Information
7	CREATED_AT	☐	CRMT_MPK_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
8	CREATED_BY	☐	CRMT_MPK_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
9	CHANGED_AT	☐	CRMT_MPK_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
10	CHANGED_BY	☐	CRMT_MPK_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
11	OBJECT_ID	☐	CRMT_MPK_OBJECT_ID_MPOINT	CRM_MPK_OBJECT_ID_MPOINT	CHAR	20	0	Counter Identifier
12	DESCRIPTION	☐	CRMT_MPK_DESCR	CRM_MPK_DESCR	CHAR	40	0	Counter Description
13	TEXT_EXISTS	☐	CRMT_MPK_TEXT_EXISTS	CRM_MPK_BOOLEAN	CHAR	1	0	Long Text Exists for this Object
14	CATEGORY	☐	CRMT_MPK_CATEGORY	CRM_MPK_CATEGORY	CHAR	3	0	Counter Category	CRMC_MPK_CAT
15	APPL_GROUP	☐	CRMT_MPK_APPGROUP	CRM_MPK_APPGROUP	CHAR	3	0	Application Group	CRMC_MPK_APPGRP
16	TYPE	☐	CRMT_MPK_TYPE	CRM_MPK_TYPE	NUMC	1	0	Counter Type
17	ATTRIBUTE	☐	CRMT_MPK_ATTRIBUTE	CRM_MPK_ATTRIBUTE	CHAR	20	0	Counter Attribute	CRMC_MPK_ATTR
18	UNIT	☐	CRMT_MPK_UNIT	MEINS	UNIT	3	0	Unit of Measurement for Counter	T006
19	DECIMALS	☐	CRMT_MPK_DECIMALS	CRM_MPK_DECIMALS	INT2	5	0	Number of Decimal Places in a Counter
20	PLAN_TIME	☐	CRMT_MPK_PLTIME	CRM_MPK_PLTIME	INT1	3	0	Planned Timeframe
21	PLAN_UNIT	☐	CRMT_MPK_UNIT_PLANNED	MEINS	UNIT	3	0	Planned Unit of Time	*
22	STATUS	☐	CRMT_MPK_STATUS	CRM_MPK_STATUS	CHAR	1	0	Counter Status
23	STATUS_READING	☐	CRMT_MPK_STATUS_READING	CRM_MPK_STATUS_READING	CHAR	1	0	Reading Status of Counter
24	FUNCTION	☐	CRMT_UBB_USAGEFCT	CRM_UBB_USAGEFCT	CHAR	4	0	Usage Function	CRMC_UBB_USG_FCT
25	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
26	.INCLUDE	☐				0	0	EEW Include Measuring Points
27	EEW_MPK_MPOINT	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
28	.INCLUDE	☐				0	0
29	.INCLUDE	☐				0	0	Value Fields for Database Structure
30	VALUE_INIT	☐	CRMT_MPK_VALUE_INIT	CRM_MPK_FLTPS	FLTP	16	16	Initial Value
31	VALUE_INIT_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
32	VALUE_MIN	☐	CRMT_MPK_VALUE_MIN	CRM_MPK_FLTPS	FLTP	16	16	Minimum Counter Value
33	VALUE_MIN_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
34	VALUE_MAX	☐	CRMT_MPK_VALUE_MAX	CRM_MPK_FLTPS	FLTP	16	16	Maximum value of counter
35	VALUE_MAX_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
36	VALUE_PLAN	☐	CRMT_MPK_VALUE_PLAN	CRM_MPK_FLTPS	FLTP	16	16	Planned Value of Counter
37	VALUE_PLAN_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
38	OVERFLOW	☐	CRMT_MPK_OVERFLOW	CRM_MPK_FLTPS	FLTP	16	16	Overflow Value for Counter Reading
39	OVERFLOW_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
40	.INCLUDE	☐				0	0	Attributes for Interlinkage type COUNT
41	MAIN_COUNTER	☐	CRMT_MAIN_COUNTER	CRM_BOOLEAN	CHAR	1	0	Main Counter
42	VALUE	☐	CRMT_MPK_VALUE_VISIBLE	CRM_MPK_FLTPS	FLTP	16	16	Visible value
43	UI_VALUE	☐	CRMT_MPK_UI_VALUE	CHAR22	CHAR	22	0	Visible Counter Reading
44	UI_STATUS	☐	CRMT_MPK_CNT_UI_STATUS	ICON	CHAR	4	0	Counter Status	*
45	.INCLUDE	☐				0	0	Readings - ALV Control
46	LINECOLOR	☐	CHAR4	CHAR4	CHAR	4	0	Not More Closely Defined Area, Possibly Used for Patchlevels
47	CELLTAB	☐	LVC_T_STYL		TTYP	0	0
48	COLINFO	☐	LVC_T_SCOL		TTYP	0	0
49	INT_LINE_NUM	☐	CRMT_MPK_LINE_NUM	CRMT_MPK_LINE_NUM	CHAR	5	0	Counter SAP GUI - Internal Use

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_MPK_COUNTER_UI	APPL_GROUP	CRMC_MPK_APPGRP	APPGROUP	KEY	1	CN
2	CRMT_MPK_COUNTER_UI	ATTRIBUTE	CRMC_MPK_ATTR	ATTRIBUTE	KEY	1	CN
3	CRMT_MPK_COUNTER_UI	CATEGORY	CRMC_MPK_CAT	CATEGORY	KEY	1	CN
4	CRMT_MPK_COUNTER_UI	FUNCTION	CRMC_UBB_USG_FCT	USAGEFCT
5	CRMT_MPK_COUNTER_UI	MANDT	T000	MANDT	KEY	1	CN
6	CRMT_MPK_COUNTER_UI	UNIT	T006	MSEHI	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
