SAP ABAP Table CRMT_MAS_DFIELD (Mass Dynamic Field Structure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IM-IPM (Application Component) Intellectual Property Management
     ⤷ CRM_MASS_WC_UI (Package) Mass Change User Interface Package

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_MAS_DFIELD	Table Relationship Diagram
Short Description	Mass Dynamic Field Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	BUS_OBJ_TYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	CRMS_MAS_MODEL
2	NODE_TYPE	☐	CRMT_MAS_NODE_TYP	CRMD_MAS_NODE_TYP	CHAR	15	0	Node type	CRMC_MAS_NODE
3	OPER_TYPE	☐	CRMT_MAS_OPER_TYP	CRMD_MAS_OPER_TYP	CHAR	4	0	Operation type	CRMC_MAS_OPER
4	FIELD_NAME	☐	NAME_KOMP	FDNAME	CHAR	30	0	Component name	*
5	REF_TO_FIELD	☐	NAME_KOMP	FDNAME	CHAR	30	0	Component name	*
6	IS_TITLE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
7	IS_MANDATORY	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
8	SET_OP	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
9	CALC_OP	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
10	CLEAR_OP	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
11	SET_VAL_TYPE	☐	CRMT_MAS_VALUE_TYPE	CRM_MAS_VALUE_TYPE	CHAR	10	0	Dynamic view - field value type
12	SET_VAL_FTYP	☐	CRMT_FIELDTYPE	CRM_FIELDTYPE	CHAR	4	0	Defines Which Field Types Can Be Seen
13	SET_VAL_DESCR	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name
14	SET_UNIT_TYPE	☐	CRMT_MAS_VALUE_TYPE	CRM_MAS_VALUE_TYPE	CHAR	10	0	Dynamic view - field value type
15	SET_UNIT_FTYP	☐	CRMT_FIELDTYPE	CRM_FIELDTYPE	CHAR	4	0	Defines Which Field Types Can Be Seen
16	SET_UNIT_DESCR	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name
17	CALC_VAL_TYPE	☐	CRMT_MAS_VALUE_TYPE	CRM_MAS_VALUE_TYPE	CHAR	10	0	Dynamic view - field value type
18	CALC_VAL_FTYP	☐	CRMT_FIELDTYPE	CRM_FIELDTYPE	CHAR	4	0	Defines Which Field Types Can Be Seen
19	CALC_VAL_DESCR	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name
20	CALC_UNIT_TYPE	☐	CRMT_MAS_VALUE_TYPE	CRM_MAS_VALUE_TYPE	CHAR	10	0	Dynamic view - field value type
21	CALC_UNIT_FTYP	☐	CRMT_FIELDTYPE	CRM_FIELDTYPE	CHAR	4	0	Defines Which Field Types Can Be Seen
22	CALC_UNIT_DESCR	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name
23	ROW_INDEX	☐	CRMT_MAS_ROW		INT1	3	0	Row
24	COL_INDEX	☐	CRMT_MAS_COL		INT1	3	0	Column
25	ROW_SPAN	☐	CRMT_MAS_ROW		INT1	3	0	Row
26	COL_SPAN	☐	CRMT_MAS_COL		INT1	3	0	Column
27	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description

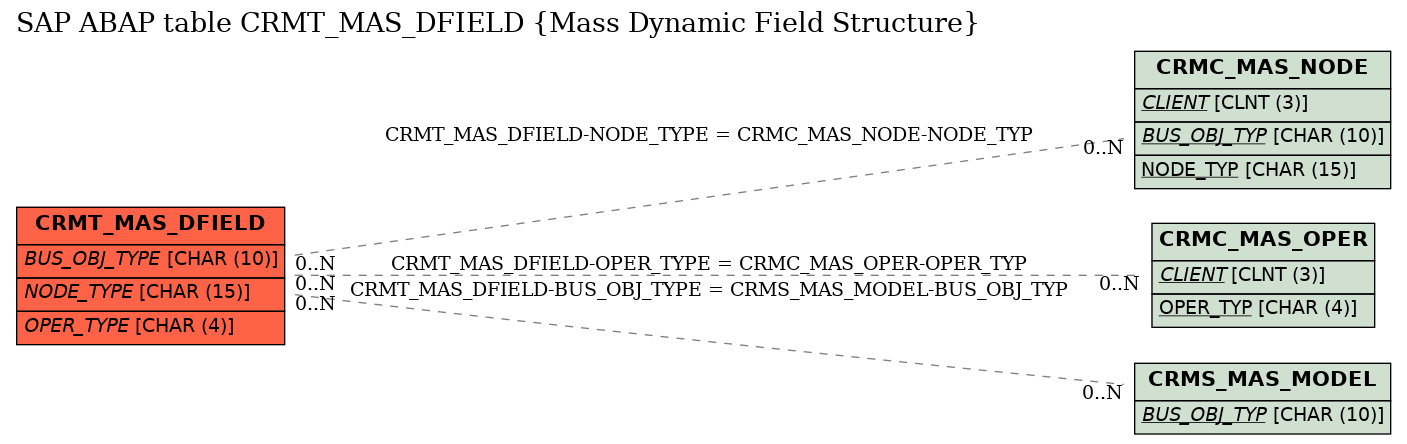

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_MAS_DFIELD	BUS_OBJ_TYPE	CRMS_MAS_MODEL	BUS_OBJ_TYP
2	CRMT_MAS_DFIELD	NODE_TYPE	CRMC_MAS_NODE	NODE_TYP
3	CRMT_MAS_DFIELD	OPER_TYPE	CRMC_MAS_OPER	OPER_TYP

History

Last changed by/on	SAP	20130604
SAP Release Created in	701
