SAP ABAP Table CRMT_HH_T006 (CRM Handheld: Units of Measurement plus Description)
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-HH (Application Component) Handheld
     ⤷ CRM_HH (Package) CRM Mobile Applications for Handhelds
Basic Data
Table Category INTTAB    Structure

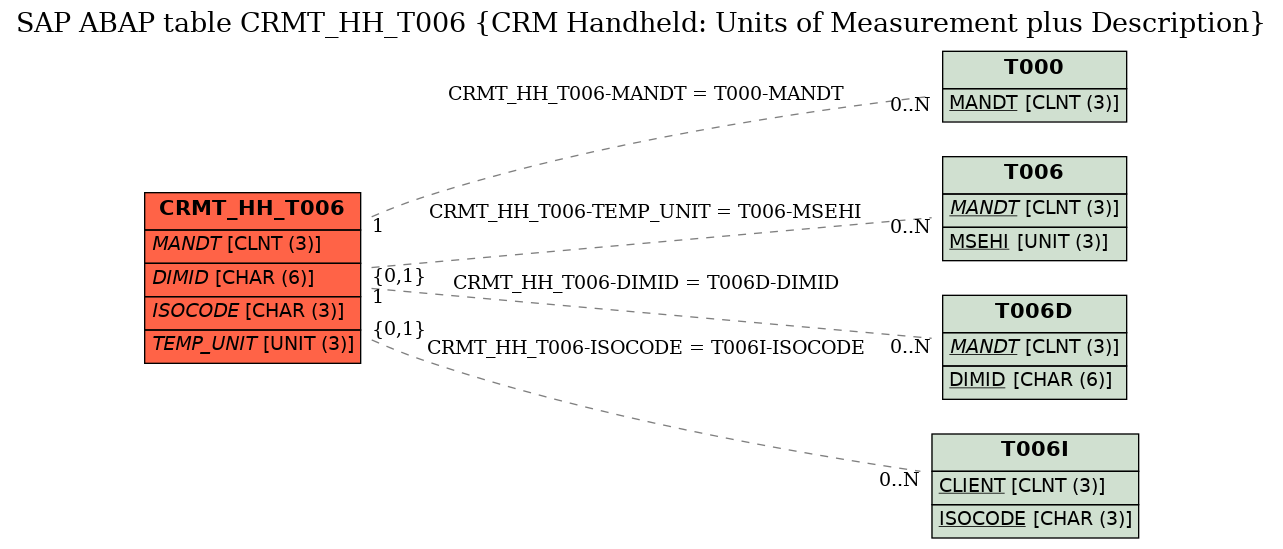

Structure CRMT_HH_T006   Table Relationship Diagram
Short Description CRM Handheld: Units of Measurement plus Description
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   Units of Measurement
2 MANDT MANDT MANDT CLNT 3   0   Client T000
3 MSEHI MSEHI MEINS UNIT 3   0   Unit of Measurement *
4 KZEX3 KZEX3 X CHAR 1   0   3-char indicator for external unit of measurement
5 KZEX6 KZEX6 X CHAR 1   0   6-char. ID for external unit of measurement
6 ANDEC ANDEC ANDEC INT2 5   0   No. of decimal places to which rounding should be performed
7 KZKEH KZKEH X CHAR 1   0   Commercial measurement unit ID
8 KZWOB KZWOB X CHAR 1   0   Value-based commitment indicator
9 KZ1EH KZ1EH X CHAR 1   0   Indicator (1) unit (indicator not yet defined)
10 KZ2EH KZ2EH X CHAR 1   0   Indicator (2) unit (indicator not yet defined)
11 DIMID DIMID DIMID CHAR 6   0   Dimension key T006D
12 ZAEHL DZAEHL   INT4 10   0   Numerator for conversion to SI unit
13 NENNR NENNR   INT4 10   0   Denominator for conversion into SI unit
14 EXP10 EXP10 EXP10 INT2 5   0   base ten exponent for conversion to SI unit
15 ADDKO ADDKO ADDKO DEC 9   6   Additive constant for conversion to SI unit
16 EXPON EXPON EXP10 INT2 5   0   Base ten exponent for floating-point display
17 DECAN DECAN DECAN INT2 5   0   Number of decimal places for number display
18 ISOCODE ISOCD_UNIT ISOCD_UNIT CHAR 3   0   ISO code for unit of measurement T006I
19 PRIMARY ISOCD_MARK X CHAR 1   0   Selection field for conversion from ISO code to int. code
20 TEMP_VALUE TEMP_VALUE TEMP_VALUE FLTP 16   16   Temperature
21 TEMP_UNIT TEMP_UNIT MEINS UNIT 3   0   Temperature unit T006
22 FAMUNIT FAMUNIT CHAR1 CHAR 1   0   Unit of measurement family
23 PRESS_VAL PRESS_VAL TEMP_VALUE FLTP 16   16   Pressure Value
24 PRESS_UNIT PRESS_UNIT MEINS UNIT 3   0   Unit of Pressure *
25 TXDIM TXDIM TEXT20 CHAR 20   0   Dimension text
26 ISOTXT ISOCD_TEXT TEXT25 CHAR 25   0   ISO codes for measurement unit names
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 CRMT_HH_T006 DIMID T006D DIMID REF 1 CN
2 CRMT_HH_T006 ISOCODE T006I ISOCODE REF C CN
3 CRMT_HH_T006 MANDT T000 MANDT KEY 1 CN
4 CRMT_HH_T006 TEMP_UNIT T006 MSEHI REF C CN
History
Last changed by/on SAP  20130604
SAP Release Created in 400
