SAP ABAP Table CRMT_HH_SALES_ORDER_ITEM (CRM Handheld: Sales Order item Details.)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-HH (Application Component) Handheld
     ⤷ CRM_HH (Package) CRM Mobile Applications for Handhelds

Basic Data

Table Category	INTTAB	Structure

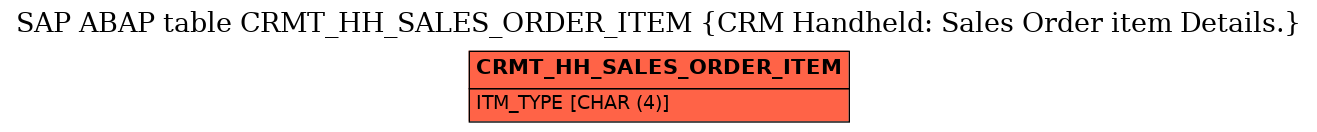

Structure	CRMT_HH_SALES_ORDER_ITEM	Table Relationship Diagram
Short Description	CRM Handheld: Sales Order item Details.

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
2	.INCLUDE	☐				0	0	Item: Structre of External Fields
3	HEADER	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	PARENT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	ALTERNATIVE	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	PRODUCT	☐	CRMT_PRODUCT_GUID_DB	SYSUUID	RAW	16	0	Internal Unique ID of Product
7	PRODUCT_SRC_SYS	☐	CRMT_PRODUCT_SRC_SYS	LOGSYS	CHAR	10	0	Logical System from Which Product Originates	*
8	ORDERED_PROD	☐	CRMT_ORDERED_PROD_DB	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
9	PARTNER_PROD	☐	CRMT_ITEM_DESCR_PARTNER	PRSHTEXT40	CHAR	40	0	Product Number of Business Partner
10	DESCRIPTION	☐	CRMT_PRSHTEXTX_DB	CRM_PRSHTEXT40_DB	CHAR	40	0	Product Short Text
11	ITM_LANGUAGE	☐	CRMT_ITEM_LANGU	SYLANGU	LANG	1	0	Short Text Language for an Item
12	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
13	NUMBER_EXT	☐	CRMT_ITEM_NO_EXT		NUMC	10	0	External Item Number
14	ITM_TYPE	☐	CRMT_ITEM_TYPE_DB	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
15	ORDER_DATE	☐	CRMT_ORDER_DATE	BCOS_TSTMP	DEC	15	0	Posting Date
16	SUBST_REASON	☐	CRMT_ITEM_SUBSTITUTION	CRM_ITEM_SUBSTITUTION	CHAR	4	0	Reason for Product Substitution	*
17	ITM_USAGE	☐	CRMT_ITEM_USAGE	CRM_ITEM_USAGE	CHAR	2	0	Usage of Higher-Level Item
18	ITM_TYPE_USAGE	☐	CRMT_IT_TYPE_USAGE	CRM_IT_TYPE_USAGE	CHAR	4	0	Item Category Usage	*
19	PRODUCT_KIND	☐	CRMT_PRODUCT_KIND	CRM_PRODUCT_KIND	CHAR	1	0	Technnical Type of Product
20	LOG_SYSTEM_EXT	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
21	.INCLUDE	☐				0	0	EEW Extension
22	ORDERADM_I_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
23	.INCLUDE	☐				0	0
24	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_I_EXT
25	ALTID_TYPE	☐	COMT_ALTID_TYPE	CHAR16	CHAR	16	0	ID Type for Alternative IDs
26	PARENT_IN_COMP_TX	☐	CRMT_COMP_TX_PARENT_GUID	SYSUUID	RAW	16	0	Higher-Level Item Number in Composite Transaction
27	NUMBER_INT_COMP_TX	☐	CRMT_COMP_TX_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Composite Transaction-Specific Item Number
28	ORDER_QTY	☐	CRMT_QTY_ORDER	MENG13	QUAN	13	3	CRM: Order Quantity
29	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity
30	NUMBER_CONFIRMED	☐	CRMT_SCHEDLIN_COUNT_CONFIRMED	CRM_SCHEDLIN_COUNT	INT2	5	0	CRM Number Confirmation Schedule Line
31	LATEST_TIME_CONFIRMED	☐	CRMT_SCHEDLIN_LTIME_CONFIRMED	BCOS_TSTMP	DEC	15	0	Latest Confirmation Date for an Item
32	DLV_GROUP_DATE	☐	CRMT_DLV_GROUP_DATE	BCOS_TSTMP	DEC	15	0	Delivery Group Date
33	PROCESS_QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
34	BATCH_NO	☐	CRMT_BATCH_ID	BATCH_ID	CHAR	10	0	Batch Number
35	CND_DISCOUNT_TYPE	☐	CRMT_HH_CND_TYPE	CRM_HH_CND_TYPE	CHAR	1	0	CRM Handheld: type of discount condition
36	CND_DISCOUNT_VALUE	☐	PRCT_COND_RATE	WERTV8	CURR	15	2	Condition Rate
37	NET_VALUE_MAN	☐	CRMT_NET_VALUE_MAN	WERTV8	CURR	15	2	Total Expected Net Value Products in Document Currency

History

Last changed by/on	SAP	20140802
SAP Release Created in	400
