SAP ABAP Table CRMT_HH_MD_BP_VIEW (CRM Handheld: Attributes for Accounts)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-HH (Application Component) Handheld
     ⤷ CRM_HH (Package) CRM Mobile Applications for Handhelds

Basic Data

Table Category	INTTAB	Structure

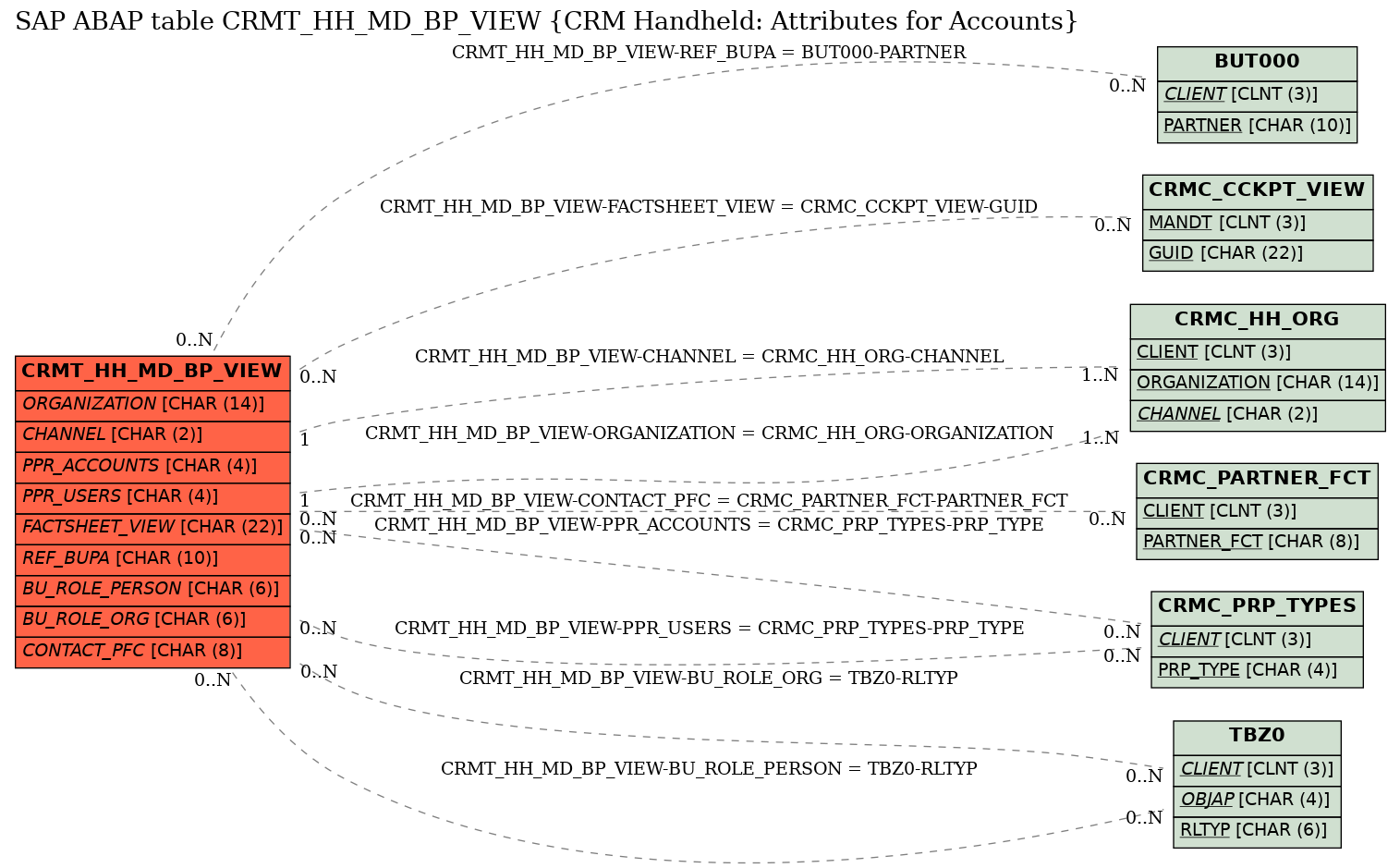

Structure	CRMT_HH_MD_BP_VIEW	Table Relationship Diagram
Short Description	CRM Handheld: Attributes for Accounts

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Generated Table for View
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	ORGANIZATION	☐	CRMT_HH_ORGANIZATION	HROBJEC_14	CHAR	14	0	CRM Handheld: Organization	CRMC_HH_ORG
4	CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	CRMC_HH_ORG
5	PPR_ACCOUNTS	☐	CRMT_HH_PRP_TYPE_ACCOUNTS	CRM_PRP_TYPE	CHAR	4	0	CRM Handheld: partner/product range type for accounts	CRMC_PRP_TYPES
6	PPR_ACCOUNTS_TXT	☐	CRMT_PRP_TYPE_DESCRIPTION	CRM_PRP_DESCRIPTION	CHAR	40	0	Description of a PPR Type
7	PPR_USERS	☐	CRMT_HH_PRP_TYPE_USERS	CRM_PRP_TYPE	CHAR	4	0	CRM Handheld: partner/product range type for users	CRMC_PRP_TYPES
8	STD_ADDRESS_ONLY	☐	CRMT_HH_STANDARD_ADDRESS	CRM_BOOLEAN	CHAR	1	0	CRM Handheld: standard address for accounts
9	FACTSHEET_VIEW	☐	CRMT_HH_FACTSHEET_VIEW	SYSUUID_22	CHAR	22	0	CRM Handheld: factsheet view	CRMC_CCKPT_VIEW
10	NAME	☐	CRMT_NAME_VIEW	CRM_CCKPT_HEADERS	CHAR	35	0	Name of a View
11	REF_BUPA	☐	CRMT_HH_REF_BU_PARTNER	BU_PARTNER	CHAR	10	0	CRM Handheld: reference business partner	BUT000
12	BU_ROLE_PERSON	☐	CRMT_HH_BU_ROLE_PERSON	BU_RLTYP	CHAR	6	0	CRM Handheld: role for a person	TBZ0
13	ROLE_PERSON_TXT	☐	BU_BEZ50	TEXT50	CHAR	50	0	Description
14	BU_ROLE_ORG	☐	CRMT_HH_BU_ROLE_ORG	BU_RLTYP	CHAR	6	0	CRM Handheld: role for an organization	TBZ0
15	UPDATE_FAVORITES	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
16	EXECUTE_BP_SEL	☐	CRMT_HH_MD_SELECT_EXECUTE	CRM_BOOLEAN	CHAR	1	0	CRM Handheld: execute master data select method
17	PHA_STRUC_1	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
18	PHA_FIELD_1	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
19	PHA_STRUC_2	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
20	PHA_FIELD_2	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
21	PHA_STRUC_3	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
22	PHA_FIELD_3	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
23	PHA_STRUC_4	☐	CRMT_HH_PHA_STRUCTURE	CRM_HH_PHA_STRUCTURE	CHAR	2	0	CRM HH Pharma: Accessible Structures
24	PHA_FIELD_4	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
25	CONTACT_PFC	☐	COMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function	CRMC_PARTNER_FCT
26	LOOK_BACK	☐	CRMT_HH_LOOK_BACK	NUMC4	NUMC	4	0	CRM Handheld: number of days back to search for documents
27	LOOK_AHEAD	☐	CRMT_HH_LOOK_AHEAD	NUMC4	NUMC	4	0	CRM Handheld: number of days ahead to search for documents

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_HH_MD_BP_VIEW	BU_ROLE_ORG	TBZ0	RLTYP
2	CRMT_HH_MD_BP_VIEW	BU_ROLE_PERSON	TBZ0	RLTYP
3	CRMT_HH_MD_BP_VIEW	CHANNEL	CRMC_HH_ORG	CHANNEL		1	N
4	CRMT_HH_MD_BP_VIEW	CONTACT_PFC	CRMC_PARTNER_FCT	PARTNER_FCT
5	CRMT_HH_MD_BP_VIEW	FACTSHEET_VIEW	CRMC_CCKPT_VIEW	GUID
6	CRMT_HH_MD_BP_VIEW	ORGANIZATION	CRMC_HH_ORG	ORGANIZATION		1	N
7	CRMT_HH_MD_BP_VIEW	PPR_ACCOUNTS	CRMC_PRP_TYPES	PRP_TYPE
8	CRMT_HH_MD_BP_VIEW	PPR_USERS	CRMC_PRP_TYPES	PRP_TYPE
9	CRMT_HH_MD_BP_VIEW	REF_BUPA	BUT000	PARTNER

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
