SAP ABAP Table CRMT_EVT_AC_SETBP2 (Screen Structure for BRF Action Type SETBP)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IPS (Application Component) Public Sector
     ⤷ CRM_EVT (Package) CRM Social Services Event Control

Basic Data

Table Category	INTTAB	Structure

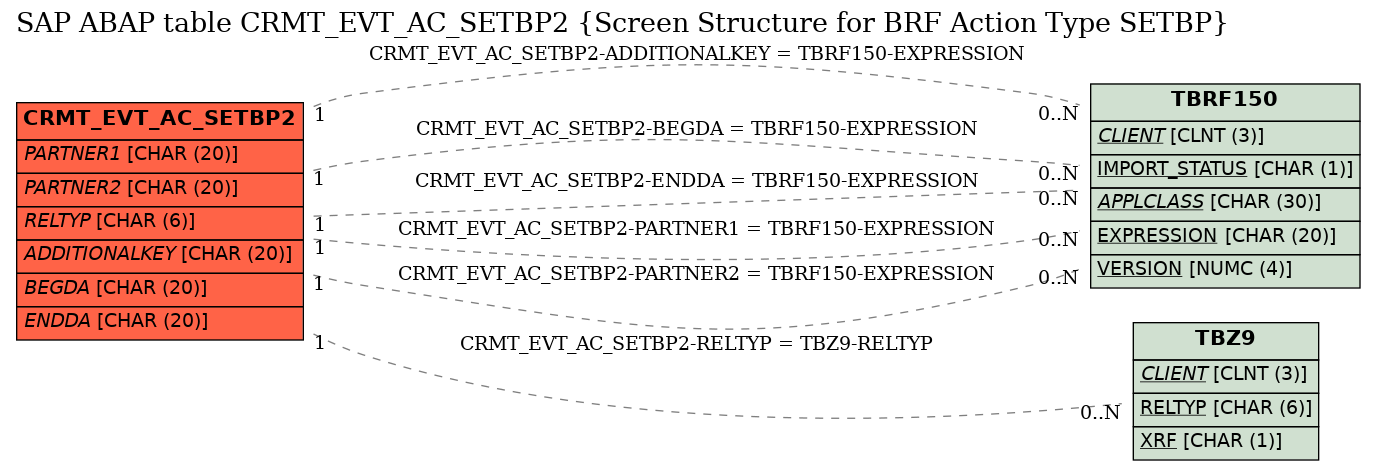

Structure	CRMT_EVT_AC_SETBP2	Table Relationship Diagram
Short Description	Screen Structure for BRF Action Type SETBP

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Screen Structure for BRF Action Type SETBP
2	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	*
3	PARTNER1	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
4	PARTNER1_TXT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
5	DATASET	☐	CRMT_EVT_DATASET	OXT_OBJNAME	CHAR	30	0	Data Set
6	PARTNER2	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
7	PARTNER2_TXT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
8	RELTYP	☐	BU_RELTYP	BU_RELTYP	CHAR	6	0	Business Partner Relationship Category	TBZ9
9	RELTYP_TXT	☐	BU_RTITL	TEXT25	CHAR	25	0	Title of Object Part
10	ADDKEY_NAME	☐	CRMT_EVT_ADDITIONALKEY	FDNAME	CHAR	30	0	Additional Key Field	*
11	ADDKEY_NAME_TXT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
12	ADDITIONALKEY	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
13	ADDKEY_TXT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
14	BEGDA	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
15	BEGDA_TXT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
16	ENDDA	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
17	ENDDA_TXT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
18	LINES	☐	CRMT_EVT_AC_SETDB_FIELD_TAB		TTYP	0	0
19	READY_FOR_INPUT	☐	INT4	INT4	INT4	10	0	Natural number

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_EVT_AC_SETBP2	ADDITIONALKEY	TBRF150	EXPRESSION	REF	1	CN
2	CRMT_EVT_AC_SETBP2	BEGDA	TBRF150	EXPRESSION	REF	1	CN
3	CRMT_EVT_AC_SETBP2	ENDDA	TBRF150	EXPRESSION	REF	1	CN
4	CRMT_EVT_AC_SETBP2	PARTNER1	TBRF150	EXPRESSION	REF	1	CN
5	CRMT_EVT_AC_SETBP2	PARTNER2	TBRF150	EXPRESSION	REF	1	CN
6	CRMT_EVT_AC_SETBP2	RELTYP	TBZ9	RELTYP	REF	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	500
