SAP ABAP Table CRMT_DQA_STEP_DATA_TEXT (structure for steps)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-DQA (Application Component) Data Quality Administration
     ⤷ CRM_DQAF_DESIGN (Package) Data Quality Administration Framework, design time

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_DQA_STEP_DATA_TEXT	Table Relationship Diagram
Short Description	structure for steps

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	STEP_TYPE_ID	☐	CRMT_DQA_STEP_TYPE_ID	CRMT_DQA_STEP_TYPE_ID	CHAR	10	0	Data Quality Step Type	*
2	.INCLUDE	☐				0	0	Data Quality Step Type Data
3	LINK_ID_BASED	☐	CRMT_DQA_LINK_ID_BASED	XFELD	CHAR	1	0	Step Is Based on Link ID Set by Previous Step
4	APPLOG_SUBTYPE	☐	BALSUBOBJ	BALSUBOBJ	CHAR	20	0	Application Log: Subobject	BALSUB
5	LOG_FILEPATH	☐	PATHINTERN	PATHINTERN	CHAR	60	0	Logical path name	FILEPATH
6	IMEX_FORMAT	☐	CRMT_DQA_IMEX_VAR	CRM_MKT_FEC_VA_ID	CHAR	4	0	DQA: File Import/Export Channel - Variant ID
7	PARALLEL	☐	CRMT_DQA_PARALLEL	XFELD	CHAR	1	0	Indicates That Parallel Processing Is Allowed
8	SERVER_GROUP	☐	RFCGR	RZLLI_ACN	CHAR	20	0	RFC server group for parallel processing	RZLLITAB
9	JOB_MAX	☐	CRMT_DQA_PARALLEL_JOBS	NUMC4	NUMC	4	0	Maximum number of RFCs for parallel processing
10	STATUS_SCHEME	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	*
11	STATUS_TRANSACT	☐	CRMT_STATUS_TRANSACTION	J_VORGANG	CHAR	4	0	Status Check Transaction	*
12	PACKAGE_SIZE	☐	CRMT_DQA_PACKAGE_SIZE	INT4	INT4	10	0	Maximum Number of Rows/Elements per File
13	EXEC_IF	☐	CRMT_DQA_EXEC_IF	SEOCLSNAME	CHAR	30	0	Name of Class Implementing Execution and Preprocesses
14	EXEC_REPORT	☐	CRMT_DQA_STEP_REPORT	PROGRAMM	CHAR	40	0	Name of the Report to Be Started by the Framework	*
15	AUTHORIZATION_IF	☐	CRMT_DQA_AUTH_IF	SEOCLSNAME	CHAR	30	0	Name of Class Implementing Authorization Interface
16	PROVIDER	☐	CRMT_DQA_PROVIDER	BU_PARTNER	CHAR	10	0	Business Partner Number Indicating the Data Provider	*
17	MAX_PROBCLASS	☐	BALPROBCL	BALPROBCL	CHAR	1	0	Application log: Message problem class
18	.INCLUDE	☐				0	0	Data Quality Step Type Data
19	DESCRIPTION	☐	CRMT_DQA_STEP_TYPE_DESC	CRMT_DQA_STEP_TYPE_DESC	CHAR	30	0	Data Quality Step Type Description	*
20	UI_TEXT	☐	CRMT_DQA_STEP_TYPE_TITLE	TEXT20	CHAR	20	0	Description for UI

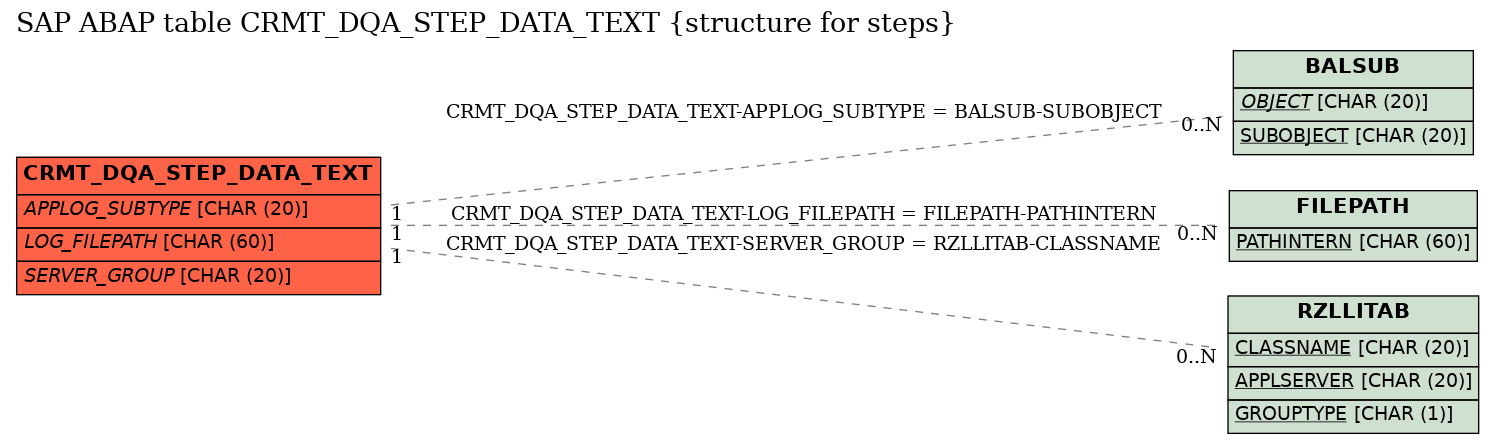

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_DQA_STEP_DATA_TEXT	APPLOG_SUBTYPE	BALSUB	SUBOBJECT	KEY	1	CN
2	CRMT_DQA_STEP_DATA_TEXT	LOG_FILEPATH	FILEPATH	PATHINTERN	KEY	1	CN
3	CRMT_DQA_STEP_DATA_TEXT	SERVER_GROUP	RZLLITAB	CLASSNAME		1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	600
