SAP ABAP Table CRMT_COUNTER_READING_H_WRK (Counter Readings Structure (Header))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-COU (Application Component) Counter
     ⤷ CRM_COUNTER_1O (Package) Integration 1Order and measuring point / counter

Basic Data

Table Category	INTTAB	Structure

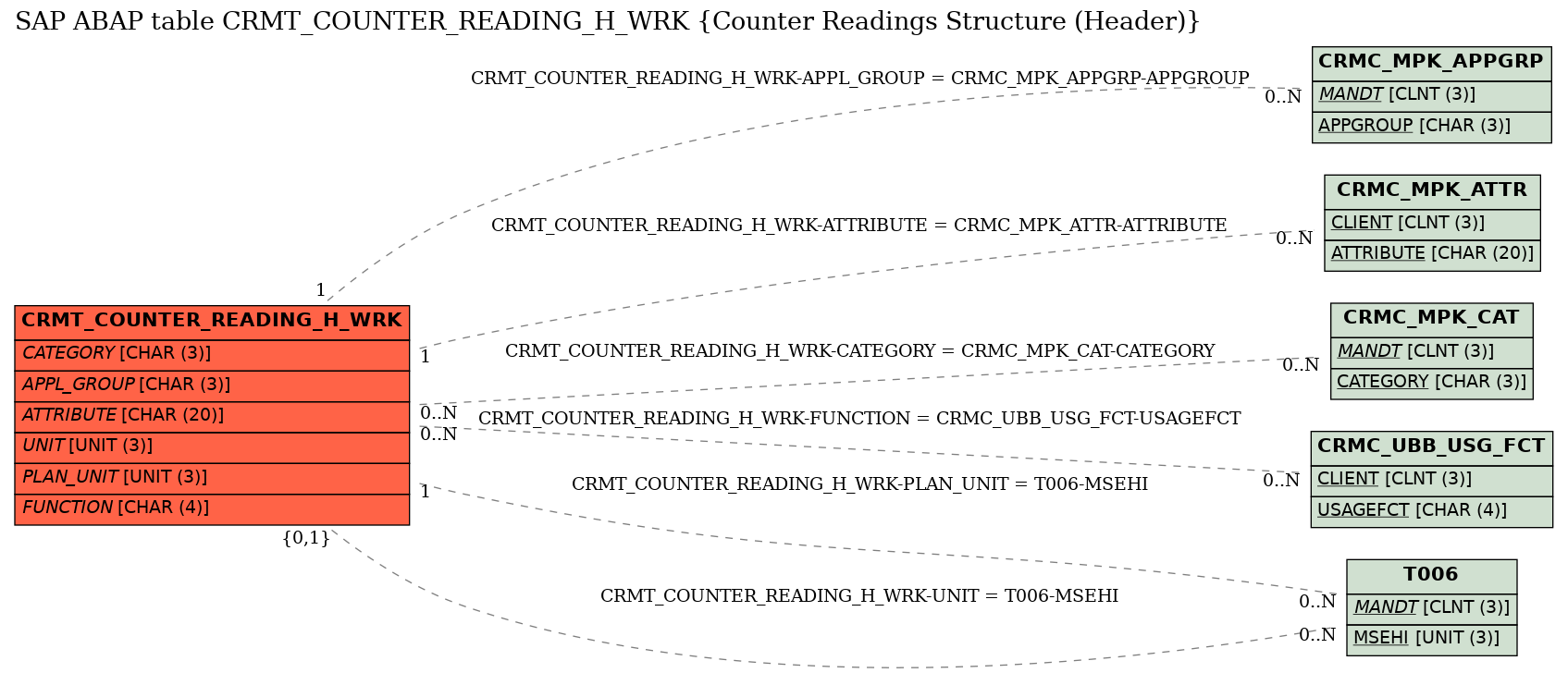

Structure	CRMT_COUNTER_READING_H_WRK	Table Relationship Diagram
Short Description	Counter Readings Structure (Header)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MARKFIELD	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
2	.INCLUDE	☐				0	0	Reading item link structure
3	.INCLUDE	☐				0	0	Reading Item Link Table
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
5	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	MP_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
7	READ_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
9	MAIN_FLAG	☐	CRMV_MAIN_COUNTER_FLAG	CRM_BOOLEAN	CHAR	1	0	Main Counter
10	.INCLUDE	☐				0	0	Fields for communication to create/change/display a MP
11	.INCLUDE	☐				0	0	Workstructure of Measuring Point
12	GUID	☐	CRMT_MPK_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a Kernel Object
13	.INCLUDE	☐				0	0	Fields Shared by DB and WRK Structures of Measuring Point
14	.INCLUDE	☐				0	0	Time and User Information
15	CREATED_AT	☐	CRMT_MPK_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
16	CREATED_BY	☐	CRMT_MPK_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
17	CHANGED_AT	☐	CRMT_MPK_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
18	CHANGED_BY	☐	CRMT_MPK_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
19	OBJECT_ID	☐	CRMT_MPK_OBJECT_ID_MPOINT	CRM_MPK_OBJECT_ID_MPOINT	CHAR	20	0	Counter Identifier
20	DESCRIPTION	☐	CRMT_MPK_DESCR	CRM_MPK_DESCR	CHAR	40	0	Counter Description
21	TEXT_EXISTS	☐	CRMT_MPK_TEXT_EXISTS	CRM_MPK_BOOLEAN	CHAR	1	0	Long Text Exists for this Object
22	CATEGORY	☐	CRMT_MPK_CATEGORY	CRM_MPK_CATEGORY	CHAR	3	0	Counter Category	CRMC_MPK_CAT
23	APPL_GROUP	☐	CRMT_MPK_APPGROUP	CRM_MPK_APPGROUP	CHAR	3	0	Application Group	CRMC_MPK_APPGRP
24	TYPE	☐	CRMT_MPK_TYPE	CRM_MPK_TYPE	NUMC	1	0	Counter Type
25	ATTRIBUTE	☐	CRMT_MPK_ATTRIBUTE	CRM_MPK_ATTRIBUTE	CHAR	20	0	Counter Attribute	CRMC_MPK_ATTR
26	UNIT	☐	CRMT_MPK_UNIT	MEINS	UNIT	3	0	Unit of Measurement for Counter	T006
27	DECIMALS	☐	CRMT_MPK_DECIMALS	CRM_MPK_DECIMALS	INT2	5	0	Number of Decimal Places in a Counter
28	PLAN_TIME	☐	CRMT_MPK_PLTIME	CRM_MPK_PLTIME	INT1	3	0	Planned Timeframe
29	PLAN_UNIT	☐	CRMT_MPK_UNIT_PLANNED	MEINS	UNIT	3	0	Planned Unit of Time	T006
30	STATUS	☐	CRMT_MPK_STATUS	CRM_MPK_STATUS	CHAR	1	0	Counter Status
31	STATUS_READING	☐	CRMT_MPK_STATUS_READING	CRM_MPK_STATUS_READING	CHAR	1	0	Reading Status of Counter
32	FUNCTION	☐	CRMT_UBB_USAGEFCT	CRM_UBB_USAGEFCT	CHAR	4	0	Usage Function	CRMC_UBB_USG_FCT
33	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
34	.INCLUDE	☐				0	0	EEW Include Measuring Points
35	EEW_MPK_MPOINT	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
36	.INCLUDE	☐				0	0
37	.INCLUDE	☐				0	0	Value-Fields for Work Structure
38	VALUE_MIN	☐	CRMT_MPK_VALUE_MIN_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Minimum Value of Counter
39	VALUE_MAX	☐	CRMT_MPK_VALUE_MAX_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Maximum Value of Counter
40	VALUE_PLAN	☐	CRMT_MPK_VALUE_PLAN_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Planned Value of Counter
41	OVERFLOW	☐	CRMT_MPK_OVERFLOW_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Counter Overflow
42	RFC_MODE	☐	CRMT_MPK_RFC_MODE	CRM_MPK_RFC_MODE	CHAR	1	0	RFC - Mode
43	ERROR_FLAG	☐	CRMT_MPK_ERROR	CRM_MPK_BOOLEAN	CHAR	1	0	Reading Error
44	CANCEL	☐	CRMT_MPK_CANCEL	CRM_MPK_BOOLEAN	CHAR	1	0	Cancel Reading
45	DELETE_FLAG	☐	CRMT_MPK_DELETE	CRM_MPK_BOOLEAN	CHAR	1	0	Deletion Flag for One-stage Deletion
46	TIMESTAMP_FROM	☐	CRMT_MPK_TIMESTAMP_FROM	TZNTSTMPS	DEC	15	0	Valid from timestamp
47	TIMEZONE_FROM	☐	CRMT_MPK_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone from	*
48	TIMESTAMP_TO	☐	CRMT_MPK_TIMESTAMP_TO	TZNTSTMPS	DEC	15	0	Valid to timestamp
49	TIMEZONE_TO	☐	CRMT_MPK_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone to	*
50	VALUE	☐	CRMT_MPK_VALUE_VISIBLE_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Visible Counter Value
51	VALUE_DELTA	☐	CRMT_MPK_VALUE_DIFF_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Difference Value from Previous Counter Reading
52	OVERALL	☐	CRMT_MPK_VALUE_OVERALL_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Overall Counter Value
53	SI_VALUE	☐	CRMT_MPK_VALUE_VISIBLE_SI	CRM_MPK_FLTPS	FLTP	16	16	Visible value in SI unit of measure
54	SI_VALUE_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
55	SI_OVERALL	☐	CRMT_MPK_VALUE_OVERALL_SI	CRM_MPK_FLTPS	FLTP	16	16	Overall value in SI unit of measure
56	SI_OVERALL_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
57	NEWVALUE	☐	CRMT_MPK_VALUE_VISIBLE_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Visible Counter Value
58	NEWVALUE_DELTA	☐	CRMT_MPK_VALUE_DIFF_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Difference Value from Previous Counter Reading
59	DATE_FROM	☐	CRMT_MPK_DATE_FROM	DATUM	DATS	8	0	Reading Valid from Date
60	TIME_FROM	☐	CRMT_MPK_TIME_FROM	UZEIT	TIMS	6	0	Reading Valid from Time
61	.INCLUDE	☐				0	0
62	CELLTAB	☐	LVC_T_STYL		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_COUNTER_READING_H_WRK	APPL_GROUP	CRMC_MPK_APPGRP	APPGROUP	KEY	1	CN
2	CRMT_COUNTER_READING_H_WRK	ATTRIBUTE	CRMC_MPK_ATTR	ATTRIBUTE	KEY	1	CN
3	CRMT_COUNTER_READING_H_WRK	CATEGORY	CRMC_MPK_CAT	CATEGORY
4	CRMT_COUNTER_READING_H_WRK	FUNCTION	CRMC_UBB_USG_FCT	USAGEFCT
5	CRMT_COUNTER_READING_H_WRK	PLAN_UNIT	T006	MSEHI	REF	1	CN
6	CRMT_COUNTER_READING_H_WRK	UNIT	T006	MSEHI	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
