SAP ABAP Table CRMT_BW_SRV_REQ_CHKLST_I (BW Extract Structure for Checklist Item Data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-ANA-RFW (Application Component) Reporting Framework
     ⤷ CRM_REPORT (Package) Operative Reporting in CRM

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BW_SRV_REQ_CHKLST_I	Table Relationship Diagram
Short Description	BW Extract Structure for Checklist Item Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	ORDERADM_H Data for BW DataSources
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
4	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
5	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
6	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
7	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
8	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
9	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
10	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Transaction Category	CRMC_SUBOB_CAT
11	CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
12	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
13	CHANGED_AT	☐	CRMT_OPPT_CHANGED_AT	DATUM	DATS	8	0	Time of Last Change to the Transaction
14	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
15	RECORDMODE	☐	RODMUPDMOD	RODMUPDMOD	CHAR	1	0	BW Delta Process: Record Mode
16	NUM_OF_HEAD	☐	CRMT_NUMBER_OF_H	INT4	INT4	10	0	Order Header Number
17	OCCURRENCE	☐	CRMT_OCC_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
18	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
19	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
20	OCCURR_QUOT	☐	CRMT_QUO_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
21	OCCURR_CONT	☐	CRMT_CON_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
22	REF_UPDATE	☐	CRMT_FLG_REF_UPDATE_BW	XFELD	CHAR	1	0	Flag: Ref. Update (Extract Structure Only Partially Filled)
23	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
24	CREATED_TS	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
25	CHANGED_TS	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
26	.INCLUDE	☐				0	0	ORDERADM_I Data for BW DataSources
27	ITEM_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
28	ITEM_CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
29	ITEM_CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
30	ITEM_CHANGED_AT	☐	CRMT_OPPT_CHANGED_AT	DATUM	DATS	8	0	Time of Last Change to the Transaction
31	ITEM_CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
32	ORDER_DATE	☐	CRMT_OPPT_ORDER_DATE	DATUM	DATS	8	0	Posting Date
33	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
34	ITEM_OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
35	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
36	NUMBER_OF_I	☐	CRMT_NUMBER_OF_I	INT4	INT4	10	0	Order Item Number
37	BW_ASSIGN	☐	CRMT_BW_ASSIGN	CRMT_BW_ASSIGN	CHAR	1	0	Assign BW and CO
38	ITM_USAGE	☐	CRMT_ITEM_USAGE	CRM_ITEM_USAGE	CHAR	2	0	Usage of Higher-Level Item
39	ITM_TYPE_USAGE	☐	CRMT_IT_TYPE_USAGE	CRM_IT_TYPE_USAGE	CHAR	4	0	Item Category Usage	*
40	ALTERNATIVE	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
41	PARENT	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
42	ITM_BP	☐	CRM_ISU_PARTNER_NO	CRM_ISU_PARTNER_NO	CHAR	10	0	Partner Number
43	ITEM_CREATED_TS	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
44	ITEM_CHANGED_TS	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
45	ORDER_DATE_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
46	.INCLUDE	☐				0	0	PARTNER (General) Data for BW DataSoures
47	SALES_EMPLOYEE	☐	CRMT_SALES_EMPLOYEE	BU_PARTNER	CHAR	10	0	Employee	*
48	PERSON_RESP	☐	CRMT_PERSON_RESP	BU_PARTNER	CHAR	10	0	Employee Responsible	*
49	CONTACT_PERSON	☐	CRMT_CONTACT_PERSON	BU_PARTNER	CHAR	10	0	Customer Contact Person	*
50	SALESPARTNER	☐	CRMT_SALESPARTNER	BU_PARTNER	CHAR	10	0	Sales Partners	*
51	RESP_GROUP_RFW	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
52	PLANNING_ACCOUNT	☐	CRMT_PLANNING_ACCOUNT	BU_PARTNER	CHAR	10	0	Planning Account	*
53	.INCLUDE	☐				0	0	Service Partner for BW Extraction
54	SERVICE_TEAM	☐	CRMT_SERVICE_TEAM	BU_PARTNER	CHAR	10	0	Service Team	*
55	SERVICE_EMPLOYEE	☐	CRMT_SERVICE_EMPLOYEE	BU_PARTNER	CHAR	10	0	Executing Service Employee	*
56	.INCLUDE	☐				0	0	Checklist-Specific Attributes for BW DataSources
57	AZCSTEP_GRP	☐	CHKLST_STEP_GRP_GUID	CHKLST_STEP_GRP_GUID	CHAR	32	0	Checklist Step Group GUID
58	AZCSTEP_ID	☐	CHKLST_STEP_ID	CRM_CHKLST_STEP	CHAR	8	0	Checklist Step ID	*
59	AZCSTEP_NO	☐	CHKLST_STEP_NO	CHKLST_STEP_NO	NUMC	10	0	Checklist Step Number
60	AZOPTION_ID	☐	CHKLST_OPTION_ID	CRM_CHKLST_OPTION	CHAR	8	0	Checklist Option ID
61	AZPSTEP_GRP	☐	CHKLST_PREV_GRP_GUID	CHKLST_PREV_GRP_GUID	CHAR	32	0	Checklist Previous Group GUID
62	AZPSTEP_NO	☐	CHKLST_PREV_GRP_NO	CHKLST_PREV_GRP_NO	NUMC	10	0	Checklist Previous Group Number
63	STEP_STATUS	☐	CRM_J_STATUS	CRM_J_STATUS	CHAR	5	0	Object Status
64	STEP_CREATE_TS	☐	CRMT_BW_CREATE_TS	BCOS_TSTMP	DEC	15	0	Timestamp: Creation Date
65	STEP_PL_START_TS	☐	CRMT_PLANNED_TS_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp: Planned Date/Time from
66	STEP_PL_COMPL_TS	☐	CRMT_PLANNED_TS_TO	BCOS_TSTMP	DEC	15	0	Time Stamp: Planned Date/Time to
67	STEP_COMPL_TS	☐	CRMT_BW_COMPLETION_TS	BCOS_TSTMP	DEC	15	0	Timestamp: Completion Date
68	STEP_USER_STATUS	☐	CRM_J_STATUS	CRM_J_STATUS	CHAR	5	0	Object Status
69	STEP_STATUS_SCHEMA	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	*

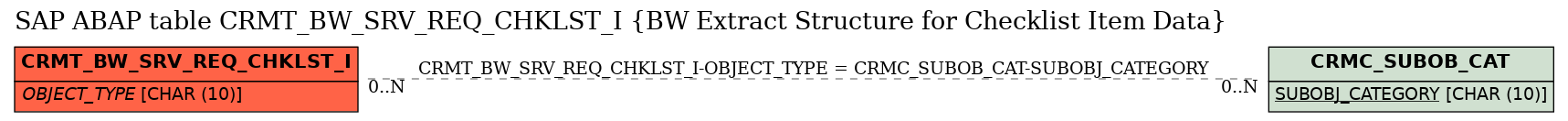

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BW_SRV_REQ_CHKLST_I	OBJECT_TYPE	CRMC_SUBOB_CAT	SUBOBJ_CATEGORY

History

Last changed by/on	SAP	20130604
SAP Release Created in	703
