SAP ABAP Table CRMT_BSP_SRB_ITEMLIST (Item List (ODC1) Service Process)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-SVO (Application Component) Service Order
     ⤷ CRM_CE_BSP_MODEL_IL_1O_SER (Package) CRM Content edition 2004: Service BSPs

Basic Data

Table Category	INTTAB	Structure

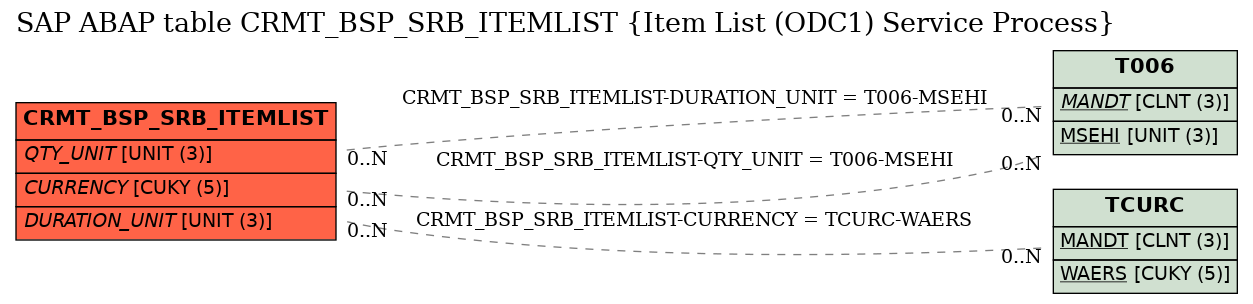

Structure	CRMT_BSP_SRB_ITEMLIST	Table Relationship Diagram
Short Description	Item List (ODC1) Service Process

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Itemlist: ODC1 Service process IL
3	.INCLUDE	☐				0	0	Management of Interface Structures
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
6	NUMBER_INT	☐	CRMT_BSP_ITEM_NO	CRM_BSP_ITEM_NO	NUMC	10	0	Item Number in Document
7	NUMBER_PARENT	☐	CRMT_BSP_ITEM_NO_PARENT	CRM_BSP_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Document
8	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
9	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
10	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
11	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
12	QTY_UNIT	☐	CRMT_BSP_SRV_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure of Product in Service Document	T006
13	NET_VALUE	☐	CRMT_NET_VALUE	WERTV8	CURR	15	2	Net Value
14	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	TCURC
15	STATUS_TXT	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
16	PROBABILITY	☐	CRMT_BSP_ORDER_PROBABILITY	CRM_BSP_PROBABILITY	NUMC	3	0	Order Probability
17	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
18	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
19	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	*
20	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	*
21	DURATION	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
22	DURATION_UNIT	☐	CRMT_SRV_DURATION_UOM	MEINS	UNIT	3	0	Unit for Duration of Work	T006
23	FROM_TIME_IO	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
24	LATEST_TIME_CONFIRMED_TZTF	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
25	AC_INDICATOR	☐	CRMT_AC_IND_WARRANTY	CRMT_AC_INDICATOR	CHAR	2	0	Warranty	*
26	ACC_IND_TXT	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
27	BUAG_ID	☐	CRMT_BUAG_ID	CRMT_BUAG_ID	CHAR	12	0	Number of Business Agreement
28	BUAG_TEXT	☐	CRMT_BUAG_TEXT	CHAR30LOW	CHAR	30	0	Text for Business Agreement
29	PROC_IDENT	☐	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
30	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
31	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
32	OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
33	OBJECT_TYPE_TXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
34	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
35	HR_OBJID	☐	HROBJID	HROBJID	NUMC	8	0	Object ID	*
36	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity
37	.INCLUDE	☐				0	0
38	.INCLUDE	☐				0	0
39	.INCLUDE	☐				0	0
40	.INCLUDE	☐				0	0
41	.INCLUDE	☐				0	0
42	.INCLUDE	☐				0	0	ATP Traffic Light
43	LOGICAL_KEY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
44	STATUS_ICON	☐	CRMT_ATP_ICON	SYCHAR132	CHAR	132	0	ATP Traffic light
45	STATE	☐	CRMT_CONF_STATE	CRM_CONF_STATE	CHAR	1	0	Confirmation Status
46	DFLT_STATUS_COLOR	☐	CRMT_STATUS_COLOR	CRM_STATUS_COLOR	CHAR	6	0	Confirmation Status: Traffic Light
47	STATUS_ICON_SHORT	☐	CRMT_ATP_ICON_SHORT	CHAR15	CHAR	15	0	Indicator: ATP Check
48	.INCLUDE	☐				0	0	Service Process Item - Date Fields (Object IL Dates)
49	APPT_TYPE1	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
50	IS_DURATION1	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
51	APPT_TEXT1	☐	SC_TXT	TEXT40	CHAR	40	0	Description
52	DATE1	☐	CRMT_BSP_SRV_CUST_BEG	DATS	DATS	8	0	Requested Start
53	APPT_TYPE2	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
54	IS_DURATION2	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
55	APPT_TEXT2	☐	SC_TXT	TEXT40	CHAR	40	0	Description
56	DATE2	☐	CRMT_BSP_SRV_CUST_END	DATS	DATS	8	0	Requested End
57	APPT_TYPE3	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
58	IS_DURATION3	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
59	APPT_TEXT3	☐	SC_TXT	TEXT40	CHAR	40	0	Description
60	DATE3	☐	CRMT_BSP_SRV_CUST_END	DATS	DATS	8	0	Requested End
61	APPT_TYPE4	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
62	IS_DURATION4	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
63	APPT_TEXT4	☐	SC_TXT	TEXT40	CHAR	40	0	Description
64	DATE4	☐	CRMT_BSP_SRV_CUST_END	DATS	DATS	8	0	Requested End
65	APPT_TYPE5	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
66	IS_DURATION5	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
67	APPT_TEXT5	☐	SC_TXT	TEXT40	CHAR	40	0	Description
68	DATE5	☐	CRMT_BSP_SRV_RFIRST	DATS	DATS	8	0	First Response By
69	.INCLUDE	☐				0	0	Product Proposal for Sales Items
70	.INCLUDE	☐				0	0	Indicators for Product Proposal
71	PROD_PROP_EXISTS	☐	CRMT_PROD_PROP_EXISTS	CRM_PROD_PROP_EXISTS	CHAR	1	0	Indicator for Whether Product Proposal Exists
72	PROD_PROP_EXISTS_TEXT	☐	CRMT_PROD_PROP_EXISTS_TEXT		CHAR	20	0	Product Proposal Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_SRB_ITEMLIST	CURRENCY	TCURC	WAERS
2	CRMT_BSP_SRB_ITEMLIST	DURATION_UNIT	T006	MSEHI
3	CRMT_BSP_SRB_ITEMLIST	QTY_UNIT	T006	MSEHI

History

Last changed by/on	SAP	20130604
SAP Release Created in	100
