SAP ABAP Table CRMT_BSP_MPK_MPOINT_SRES (Results List: Counters)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-COU (Application Component) Counter
     ⤷ CRM_BSP_CE_COUNTER (Package) CRM Content edition 2004: Service BSPs for counter

Basic Data

Table Category	INTTAB	Structure

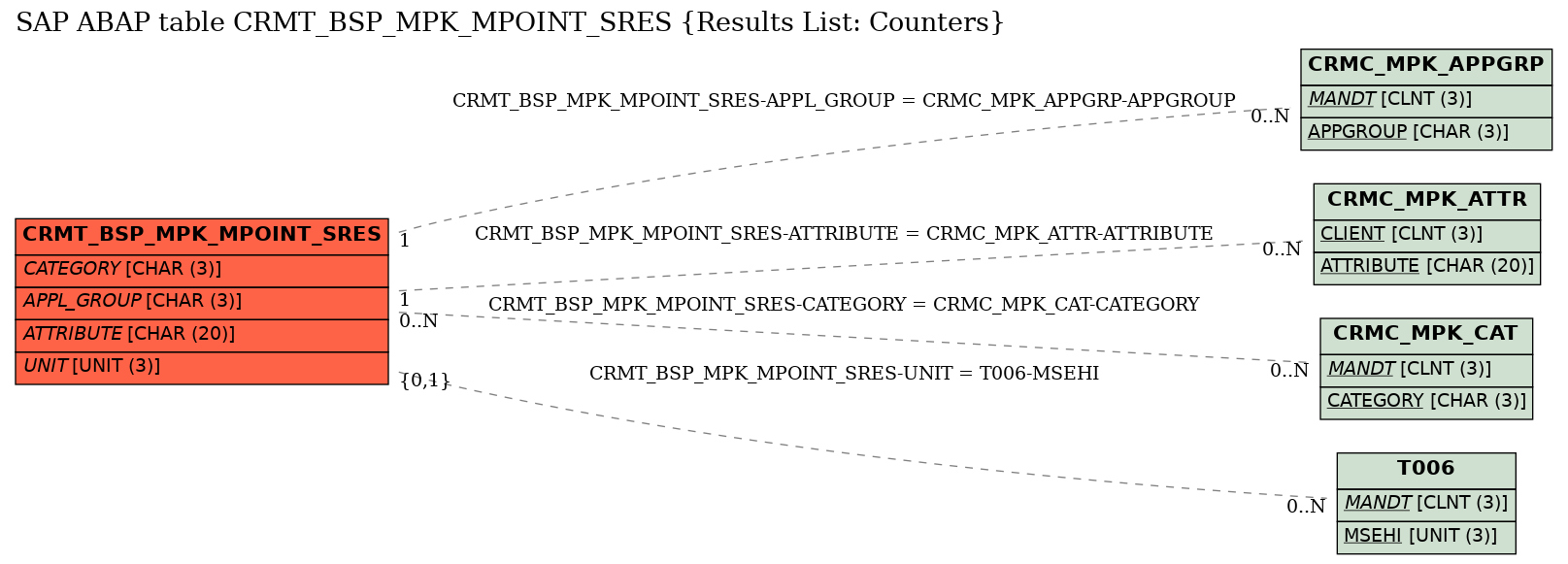

Structure	CRMT_BSP_MPK_MPOINT_SRES	Table Relationship Diagram
Short Description	Results List: Counters

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Display Counter in BSP
2	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
3	.INCLUDE	☐				0	0	Fields Shared by DB and Work Structures of Measuring Point
4	.INCLUDE	☐				0	0	Time and User Information
5	CREATED_AT	☐	CRMT_MPK_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
6	CREATED_BY	☐	CRMT_MPK_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
7	CHANGED_AT	☐	CRMT_MPK_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
8	CHANGED_BY	☐	CRMT_MPK_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
9	OBJECT_ID	☐	CRMT_BSP_MPK_OBJECT_ID_MPOINT	CRM_MPK_OBJECT_ID_MPOINT	CHAR	20	0	Counter ID
10	DESCRIPTION	☐	CRMT_MPK_DESCR	CRM_MPK_DESCR	CHAR	40	0	Counter Description
11	TEXT_EXISTS	☐	CRMT_MPK_TEXT_EXISTS	CRM_MPK_BOOLEAN	CHAR	1	0	Long Text Exists for this Object
12	CATEGORY	☐	CRMT_MPK_CATEGORY	CRM_MPK_CATEGORY	CHAR	3	0	Counter Category	CRMC_MPK_CAT
13	APPL_GROUP	☐	CRMT_MPK_APPGROUP	CRM_MPK_APPGROUP	CHAR	3	0	Application Group	CRMC_MPK_APPGRP
14	TYPE	☐	CRMT_MPK_TYPE	CRM_MPK_TYPE	NUMC	1	0	Counter Type
15	ATTRIBUTE	☐	CRMT_MPK_ATTRIBUTE	CRM_MPK_ATTRIBUTE	CHAR	20	0	Counter Attribute	CRMC_MPK_ATTR
16	FUNCTION	☐	CRMT_UBB_USAGEFCT	CRM_UBB_USAGEFCT	CHAR	4	0	Usage Function	*
17	UNIT	☐	CRMT_MPK_UNIT	MEINS	UNIT	3	0	Unit of Measurement for Counter	T006
18	DECIMALS	☐	CRMT_MPK_DECIMALS	CRM_MPK_DECIMALS	INT2	5	0	Number of Decimal Places in a Counter
19	PLAN_TIME	☐	CRMT_MPK_PLTIME	CRM_MPK_PLTIME	INT1	3	0	Planned Timeframe
20	PLAN_UNIT	☐	CRMT_MPK_UNIT_PLANNED	MEINS	UNIT	3	0	Planned Unit of Time	*
21	STATUS	☐	CRMT_MPK_STATUS	CRM_MPK_STATUS	CHAR	1	0	Counter Status
22	STATUS_READING	☐	CRMT_MPK_STATUS_READING	CRM_MPK_STATUS_READING	CHAR	1	0	Reading Status of Counter
23	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
24	.INCLUDE	☐				0	0
25	.INCLUDE	☐				0	0	Value-Fields for Work Structure
26	VALUE_MIN	☐	CRMT_MPK_VALUE_MIN_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Minimum Value of Counter
27	VALUE_MAX	☐	CRMT_MPK_VALUE_MAX_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Maximum Value of Counter
28	VALUE_PLAN	☐	CRMT_MPK_VALUE_PLAN_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Planned Value of Counter
29	OVERFLOW	☐	CRMT_MPK_OVERFLOW_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Counter Overflow
30	MP_GUID	☐	CRMT_MPK_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a Kernel Object
31	MP_STATUS_TXT	☐	CRMT_MPK_BSP_STATUS_TXT	CRM_MPK_BSP_STATUS_TXT	CHAR	30	0	Status Description for Counter
32	MP_ASSIGNED_TXT	☐	CRMT_MPK_BSP_STATUS_READING_TX	CRM_MPK_BSP_STATUS_TXT	CHAR	30	0	Assigned Status for Counter
33	REF_OBJ_TYPE	☐	CRMT_MPK_REF_OBJ_TYPE	CRMT_MPK_REF_OBJ	NUMC	2	0	Reference Object Type of Counter
34	REF_OBJ_TEXT	☐	CRMT_MPK_REF_OBJ_TEXT	DDTEXT	CHAR	60	0	Type of Reference Object of a Counter
35	.INCLUDE	☐				0	0	Attributes for Interlinkage type COUNT
36	MAIN_COUNTER	☐	CRMT_MAIN_COUNTER	CRM_BOOLEAN	CHAR	1	0	Main Counter

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_MPK_MPOINT_SRES	APPL_GROUP	CRMC_MPK_APPGRP	APPGROUP	KEY	1	CN
2	CRMT_BSP_MPK_MPOINT_SRES	ATTRIBUTE	CRMC_MPK_ATTR	ATTRIBUTE	KEY	1	CN
3	CRMT_BSP_MPK_MPOINT_SRES	CATEGORY	CRMC_MPK_CAT	CATEGORY
4	CRMT_BSP_MPK_MPOINT_SRES	UNIT	T006	MSEHI	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
