SAP ABAP Table CRMT_BSP_MKTSEG_ACTIVITY (CRM Marketing UI Screen Structure Create Business Transactns)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-SEG (Application Component) Segmentation
     ⤷ CRM_BSP_MODEL_IL_MKT_SEG (Package) Model Implementation: Marketing - Segment Builder

Basic Data

Table Category	INTTAB	Structure

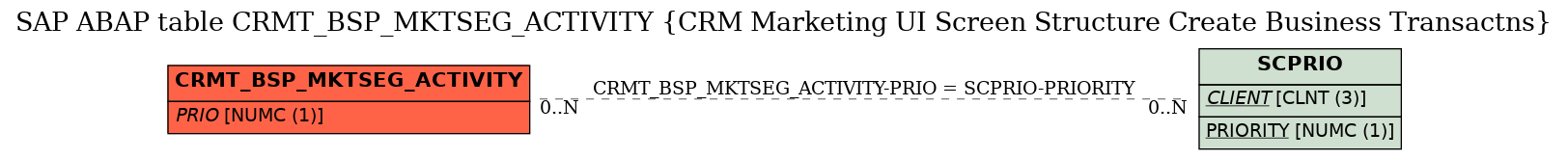

Structure	CRMT_BSP_MKTSEG_ACTIVITY	Table Relationship Diagram
Short Description	CRM Marketing UI Screen Structure Create Business Transactns

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	DESCRIPTION	☐	CRMT_MKTTG_BSP_TG_DESCR	CRM_MARKETING_DESC	CHAR	72	0	CRM Marketing: Description of a Target Group
3	ACT_DESCR	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
4	ORDER_TYPE	☐	CRMT_MKT_ORDER_TYPE	CRMT_MKT_ORDER_TYPE	NUMC	2	0	Business Transaction Category
5	PROCESS_TYPE	☐	CRM_MKTPL_ACT_CREATE	CRM_PROCESS_TYPE	CHAR	4	0	CRM Marketing Planning - Transaction Type	*
6	BP_RESPONSIBLE	☐	CRMT_BSP_FPR_RESPONSIBLE	BU_PARTNER	CHAR	10	0	Person Responsible Follow-Up Processing	*
7	BP_COMPETENT	☐	CRMT_BSP_FPR_COMPETENT	BU_PARTNER	CHAR	10	0	CRM FPR: Responsible Employee Follow-up Processing	*
8	PRIO	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	SCPRIO
9	DATE_FROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
10	DATE_TO	☐	CRMT_BSP_FPR_SC_DATETO	DATUM	DATS	8	0	CRM Marketing: Follow-up Processing End Date
11	TIME_FROM	☐	SC_TIMEFRO	SYTIME	TIMS	6	0	From Time
12	TIME_TO	☐	SC_TIMETO	SYTIME	TIMS	6	0	To Time
13	TXT_PROD	☐	CRMT_MKTTG_BSP_TEXT	CHAR32	CHAR	32	0	CRM Marketing: Text Field for Output
14	NUM_PROD	☐	CRMT_MKTTG_BSP_INT1	INT1	INT1	3	0	CRM Marketing: Number of Assigned Products

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_MKTSEG_ACTIVITY	PRIO	SCPRIO	PRIORITY

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
