SAP ABAP Table CRMT_BSP_IPM_BEA_BVAL_DATA (Display Structure for Data Values (for PC-UI))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IM-IPM-BF (Application Component) Basic Functions
     ⤷ CRM_IPM_BEA_BVAL (Package) IPM BEA: Value Container

Basic Data

Table Category	INTTAB	Structure

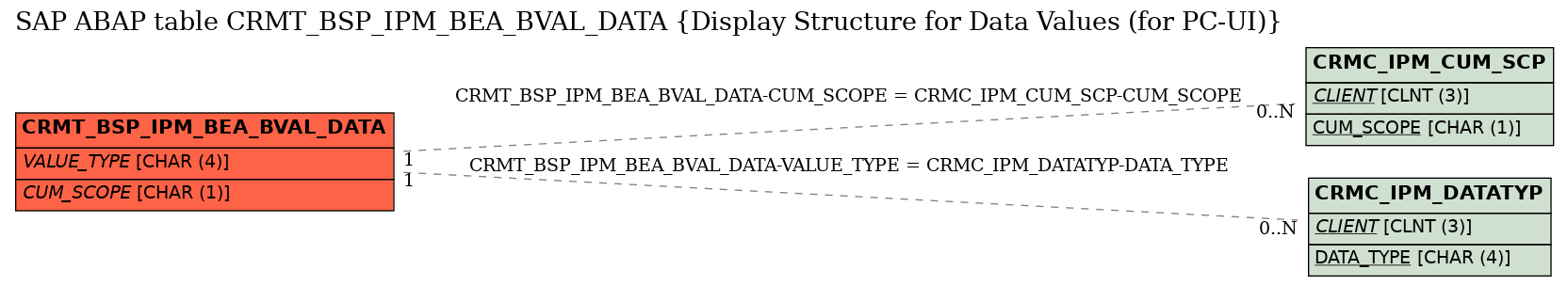

Structure	CRMT_BSP_IPM_BEA_BVAL_DATA	Table Relationship Diagram
Short Description	Display Structure for Data Values (for PC-UI)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Object Key in People Centric UI
2	OBJECT_KEY	☐	BEA_BSP_OBJECT_KEY		CHAR	100	0	Object Key in People Centric UI
3	.INCLUDE	☐				0	0	IPM BEA: Data Part of Values Container
4	.INCLUDE	☐				0	0	IPM BEA: Content Key for Value Container
5	PARENT_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	VALUE_TYPE	☐	CRMT_IPM_BEA_VALUE_TYPE	CRMT_IPM_BEA_VALUE_TYPE	CHAR	4	0	Data Value	CRMC_IPM_DATATYP
7	CUM_SCOPE	☐	CRMT_IPM_BEA_CUM_SCOPE	CRMT_IPM_BEA_CUM_SCOPE	CHAR	1	0	Cumulation Scope for a Value	CRMC_IPM_CUM_SCP
8	.INCLUDE	☐				0	0	IPM BEA: Values Part of the Value Container
9	QUANTITY	☐	CRMT_CUM_QUAN	CRM_MENGV15	QUAN	15	3	CRM Quantity for Cumulated I
10	QUANTITY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
11	VALUE	☐	CRMT_CUM_VALUE	CRM_COND_VALUE	CURR	19	2	Cumulative Value
12	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
13	VALUE_TYPE_DESCR	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_IPM_BEA_BVAL_DATA	CUM_SCOPE	CRMC_IPM_CUM_SCP	CUM_SCOPE	REF	1	CN
2	CRMT_BSP_IPM_BEA_BVAL_DATA	VALUE_TYPE	CRMC_IPM_DATATYP	DATA_TYPE	REF	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
