SAP ABAP Table CRMT_BSP_GPM_NODE_PCT (BSP Screen structure of Grantor Process Control assignment)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-IPS-MD-PRG (Application Component) Grantor Programm
⤷ CRM_BSP_MODEL_GPM_APP (Package) Grants Program Management : Model Implementation
⤷ CRM-IPS-MD-PRG (Application Component) Grantor Programm
⤷ CRM_BSP_MODEL_GPM_APP (Package) Grants Program Management : Model Implementation
Basic Data
Table Category | INTTAB | Structure |
Structure | CRMT_BSP_GPM_NODE_PCT | Table Relationship Diagram |
Short Description | BSP Screen structure of Grantor Process Control assignment |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | OBJECT_KEY | CRMT_BSP_OBJECTKEY | CHAR | 100 | 0 | Object Key | |||
2 | .INCLUDE | 0 | 0 | Grantor Program Process Control Assignment include | |||||
3 | PROCESS | CRMT_GPM_PROCESS | CRM_GPM_PROCESS | CHAR | 2 | 0 | Grantor Program Process | ||
4 | PROCESS_TYPE | CRMT_PROCESS_TYPE | CRM_PROCESS_TYPE | CHAR | 4 | 0 | Business Transaction Type | CRMC_PROC_TYPE | |
5 | REQ_TYPE | CRMT_GPM_REQ_TYPE | CRM_REQ_TYPE | CHAR | 10 | 0 | Grantor Program Request Category | CRMC_REQ_TYPE | |
6 | SURVEY_ID | CRMT_GPM_SURVEY_ID | CHAR32 | CHAR | 32 | 0 | Grantor Program Survey ID | CRM_SVY_DB_S | |
7 | RULESET | CRMT_GPM_BRF_RULESET | BRF_RULESET | CHAR | 20 | 0 | Grantor Program BRF Rule Set | * | |
8 | OPEN | CRMT_GPM_PCT_OPEN | CRMT_GPM_PCT_OPEN | CHAR | 1 | 0 | Grantor Program Process Open | ||
9 | OPEN_FROM | CRMT_GPM_DATE_FROM | BCOS_TSTMP | DEC | 15 | 0 | Grantor Program From Date | ||
10 | OPEN_TO | CRMT_GPM_DATE_TO | BCOS_TSTMP | DEC | 15 | 0 | Grantor Program Date To | ||
11 | BUDGET_REL | CRMT_GPM_BUDGET_RELEVANT | CRM_BOOLEAN | CHAR | 1 | 0 | Budget Reservation Relevant for Grantor Objects |

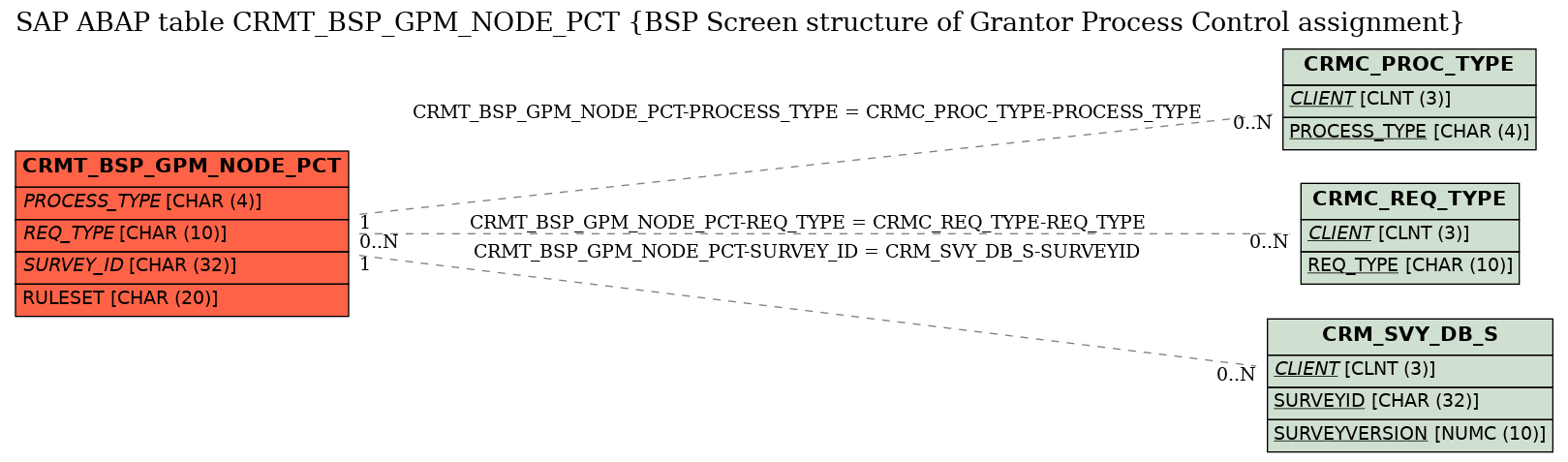

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | CRMT_BSP_GPM_NODE_PCT | PROCESS_TYPE | CRMC_PROC_TYPE | PROCESS_TYPE | KEY | 1 | CN |
2 | CRMT_BSP_GPM_NODE_PCT | REQ_TYPE | CRMC_REQ_TYPE | REQ_TYPE | |||
3 | CRMT_BSP_GPM_NODE_PCT | SURVEY_ID | CRM_SVY_DB_S | SURVEYID | KEY | 1 | CN |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in | 500 |
