SAP ABAP Table CRMT_BRF_TBRF110_EVPAR (Screen Structure Event Maint.: Event Header + Parameter Key)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-BRF (Application Component) Integration Business Rules Framework in the Bus. Transaction
     ⤷ CRM_BRF_1O (Package) BRF Integration with One Order Framework

Basic Data

Table Category	INTTAB	Structure

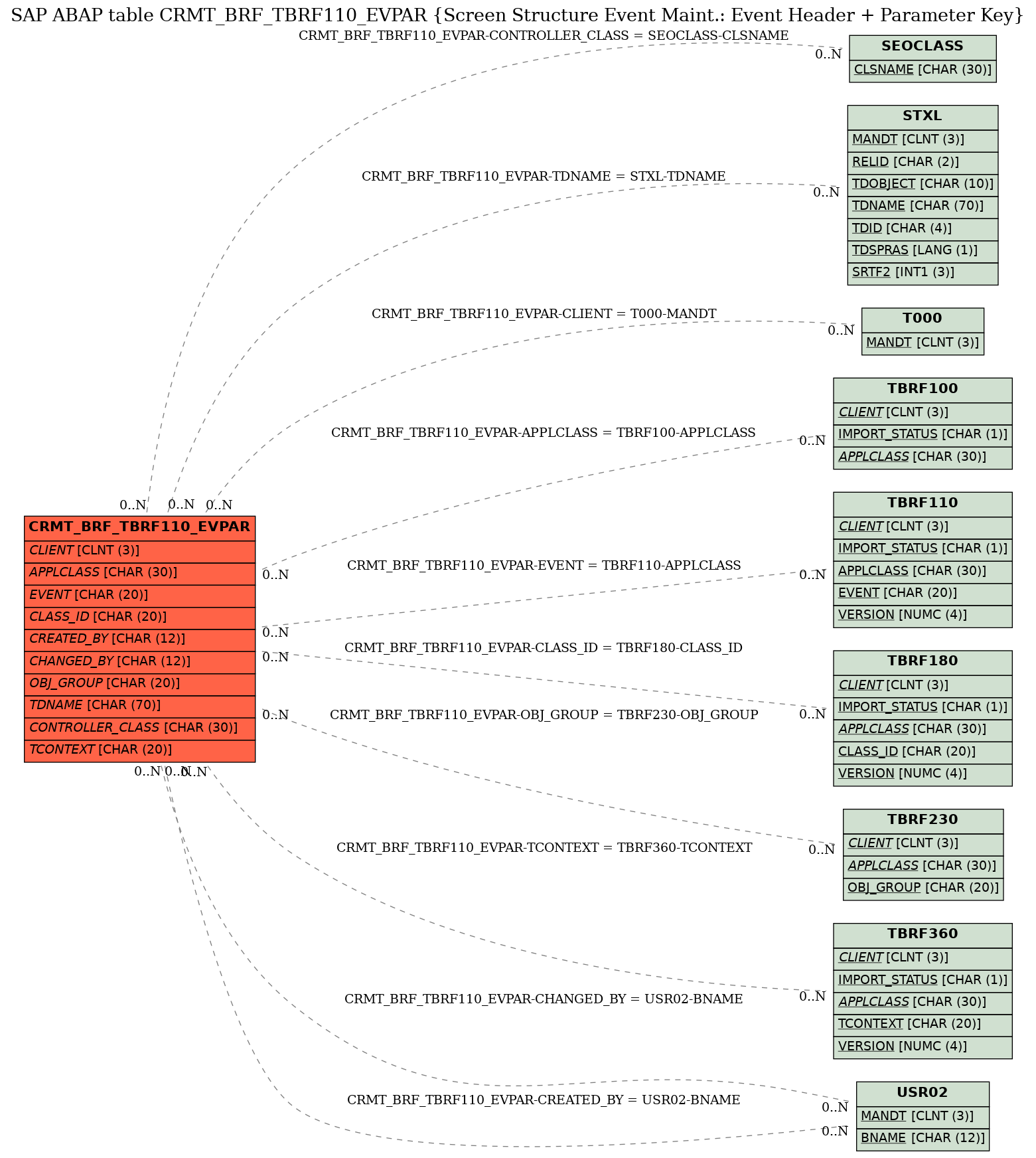

Structure	CRMT_BRF_TBRF110_EVPAR	Table Relationship Diagram
Short Description	Screen Structure Event Maint.: Event Header + Parameter Key

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BRF: Screen Structure for Events
2	.INCLUDE	☐				0	0	BRF: Event
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	.INCLUDE	☐				0	0	BRF: Event - Common Key Fields
5	IMPORT_STATUS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
6	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	TBRF100
7	EVENT	☐	BRF_EVENT	BRF_EVENT	CHAR	20	0	Name of Event	TBRF110
8	VERSION	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
9	LOG_EVENT	☐	BRF_LOG_EVENT	BRF_BOOLE_D	CHAR	1	0	Write Event in Event Log
10	CLASS_ID_IS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
11	CLASS_ID	☐	BRF_CLASS_ID	BRF_CLASS_ID	CHAR	20	0	Key of Implementing Class	TBRF180
12	CLASS_ID_VS	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
13	.INCLUDE	☐				0	0	BRF: Administration Information
14	CREATED_BY	☐	BRF_CREATED_BY	XUBNAME	CHAR	12	0	BRF: Version Created by	USR02
15	CREATED_AT	☐	BRF_CREATED_AT	TZNTSTMPS	DEC	15	0	Version Created On/At
16	CHANGED_BY	☐	BRF_CHANGED_BY	XUBNAME	CHAR	12	0	BRF: Version Changed By	USR02
17	CHANGED_AT	☐	BRF_CHANGED_AT	TZNTSTMPS	DEC	15	0	Version Changed On/At
18	DELETED	☐	BRF_XDELETED	BRF_BOOLE_D	CHAR	1	0	Obsolete (BRF: Mark Entry for Physical Deletion)
19	OBJ_GROUP	☐	BRF_OBJ_GROUP	BRF_OBJ_GROUP	CHAR	20	0	BRF: Grouping of BRF Objects	TBRF230
20	EXPR_FIRST	☐	BRF_EXPRESSIONS_FIRST	BRF_BOOLE_D	CHAR	1	0	Expressions First, Then Actions
21	TDNAME	☐	TDOBNAME	TDOBNAME	CHAR	70	0	Name	STXL
22	CONTROLLER_CLASS	☐	BRF_CONTROLLER_CLASS	SEOCLSNAME	CHAR	30	0	Name of Controller Class	SEOCLASS
23	TCONTEXT	☐	BRF_TCONTEXT	BRF_TCONTEXT	CHAR	20	0	Context	TBRF360
24	EXP_BUFFER	☐	BRF_EXPRESSION_BUFFER	BRF_BUFFER_STATUS	INT1	3	0	User Buffer Mechanism for Expressions
25	LANGU	☐	LANGU	SPRAS	LANG	1	0	Language Key	*
26	APPLCLASS_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
27	LANGU_SHORT	☐	SPTXT	SPTXT16	CHAR	16	0	Name of Language
28	IMPORT_STATUS_SHORT	☐	DDTEXT	DDTEXT	CHAR	60	0	Explanatory short text
29	SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
30	SHORT2	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
31	CREATED_AT_DATE	☐			DATS	8	0
32	CREATED_AT_TIME	☐			TIMS	6	0
33	CREATED_AT_DATE_LOC	☐			DATS	8	0
34	CREATED_AT_TIME_LOC	☐			TIMS	6	0
35	CHANGED_AT_DATE	☐			DATS	8	0
36	CHANGED_AT_TIME	☐			TIMS	6	0
37	CHANGED_AT_DATE_LOC	☐			DATS	8	0
38	CHANGED_AT_TIME_LOC	☐			TIMS	6	0
39	TIME_ZONE_CHG	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
40	TIME_ZONE_SHORT_CHG	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
41	TIME_ZONE_LOC_CHG	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
42	TIME_ZONE_LOC_SHORT_CHG	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
43	NAME_SHORT_CHG	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
44	TIME_ZONE	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
45	TIME_ZONE_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
46	TIME_ZONE_LOC	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
47	TIME_ZONE_LOC_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
48	NAME_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
49	CLASS_NAME	☐	BRF_CLASS	SEOCLSNAME	CHAR	30	0	Name of Implementing Class
50	CLASS_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
51	OBJ_GROUP_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
52	RULES_FIRST	☐	BRF_RULES_FIRST	BRF_BOOLE_D	CHAR	1	0	Apply All Rules in Sequence
53	CONTROLLER_CLASS_SHORT	☐	SEODESCR	AS4TEXT	CHAR	60	0	Short Description
54	TCONTEXT_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
55	EXP_BUFFER_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
56	CHANGED_NAME_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
57	CHANGED_TIME_ZONE_LOC	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
58	CHANGED_TIME_ZONE_LOC_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
59	.INCLUDE	☐				0	0	CRM-Specific Attributes of a BRF Event
60	PARAM_KEY	☐	CRMT_BRF_PARAM_KEY	CRM_BRF_PARAM_KEY	CHAR	20	0	Key of Parameter List	*
61	BRF_LOG_ACTIVE	☐	CRMT_BRF_LOG_ACTIVE	CRM_BOOLEAN	CHAR	1	0	BRF Log: Indicator BRF Log Active
62	MULTI_ITEM_EV_PR	☐	CRMT_BRF_MULTI_ITEM_EV_PROC	CRM_BOOLEAN	CHAR	1	0	Indicator 'Cross-Item Event Processing'
63	CHECK_NO_RESULT	☐	CRMT_BRF_CHECK_NO_TAG_RESULT	CRM_BOOLEAN	CHAR	1	0	Check Tags with no Result at Runtime
64	MNT_MODE	☐	CRMT_BRF_EVENT_MNT_MODE	CRM_BRF_EVENT_MNT_MODE	CHAR	1	0	CRM_BRF: Maintenance Mode for Event Maintenance

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BRF_TBRF110_EVPAR	APPLCLASS	TBRF100	APPLCLASS
2	CRMT_BRF_TBRF110_EVPAR	CHANGED_BY	USR02	BNAME
3	CRMT_BRF_TBRF110_EVPAR	CLASS_ID	TBRF180	CLASS_ID
4	CRMT_BRF_TBRF110_EVPAR	CLIENT	T000	MANDT
5	CRMT_BRF_TBRF110_EVPAR	CONTROLLER_CLASS	SEOCLASS	CLSNAME
6	CRMT_BRF_TBRF110_EVPAR	CREATED_BY	USR02	BNAME
7	CRMT_BRF_TBRF110_EVPAR	EVENT	TBRF110	APPLCLASS
8	CRMT_BRF_TBRF110_EVPAR	OBJ_GROUP	TBRF230	OBJ_GROUP
9	CRMT_BRF_TBRF110_EVPAR	TCONTEXT	TBRF360	TCONTEXT
10	CRMT_BRF_TBRF110_EVPAR	TDNAME	STXL	TDNAME

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
