SAP ABAP Table CRMT_BRF_SBRF310 (BRF: Structure SBRF310 with Search Help for Init Actions)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-BRF (Application Component) Integration Business Rules Framework in the Bus. Transaction
     ⤷ CRM_BRF_1O (Package) BRF Integration with One Order Framework

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BRF_SBRF310	Table Relationship Diagram
Short Description	BRF: Structure SBRF310 with Search Help for Init Actions

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BRF: Rule Sets - Screen Structure
2	.INCLUDE	☐				0	0	BRF: Rule Set/Event/Expression/Action Assignment
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	IMPORT_STATUS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
5	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	TBRF100
6	RULESET	☐	BRF_RULESET	BRF_RULESET	CHAR	20	0	BRF Rule Set	TBRF280
7	VERSION	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
8	EVENT	☐	BRF_EVENT	BRF_EVENT	CHAR	20	0	Name of Event	TBRF110
9	EXPRESSION	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
10	ACTION	☐	BRF_ACTION	BRF_ACTION	CHAR	20	0	Name of Action	TBRF170
11	SEQUENCE	☐	BRF_SEQUENCE_NUMBER_SHORT	BRF_SEQUENCE_NUMBER_SHORT	NUMC	2	0	Short Sequence Number
12	EXPR_GATE	☐	BRF_EXPRESSION_GATE	BRF_EXPRESSION	CHAR	20	0	BRF: Gate Expression	TBRF150
13	EXPR_GATE_IS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
14	EXPR_GATE_VS	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
15	REPEAT_ACTION	☐	BRF_REPEAT_ACTION	BRF_BOOLE_D	CHAR	1	0	Repeat Execution of Action
16	ON_SINGLE_INST	☐	BRF_ON_SINGLE_INSTANCE	BRF_BOOLE_D	CHAR	1	0	Apply Rule in Single Instance Mode (Dialog Mode)
17	ON_MULTI_INST	☐	BRF_ON_MULTI_INSTANCE	BRF_BOOLE_D	CHAR	1	0	Execute Rule in Multi-Instance Mode (Batch Mode)
18	IGNORE_EVENT_LOG	☐	BRF_IGNORE_EVENT_LOG	BRF_BOOLE_D	CHAR	1	0	Ignore Event Log
19	.INCLUDE	☐				0	0	BRF: Administration Information
20	CREATED_BY	☐	BRF_CREATED_BY	XUBNAME	CHAR	12	0	BRF: Version Created by	USR02
21	CREATED_AT	☐	BRF_CREATED_AT	TZNTSTMPS	DEC	15	0	Version Created On/At
22	CHANGED_BY	☐	BRF_CHANGED_BY	XUBNAME	CHAR	12	0	BRF: Version Changed By	USR02
23	CHANGED_AT	☐	BRF_CHANGED_AT	TZNTSTMPS	DEC	15	0	Version Changed On/At
24	DELETED	☐	BRF_XDELETED	BRF_BOOLE_D	CHAR	1	0	Obsolete (BRF: Mark Entry for Physical Deletion)
25	SEQUENCE_NUMBER	☐	BRF_SEQUENCE_NUMBER	BRF_SEQUENCE_NUMBER	NUMC	4	0	Sequence Number
26	VALID_FROM	☐	BRF_RULE_VALID_FROM	BRF_TIMESTAMP	DEC	15	0	BRF Rule Valid From
27	VALID_TO	☐	BRF_RULE_VALID_TO	BRF_TIMESTAMP	DEC	15	0	BRF Rule Valid To
28	REF_DATE_EXPR	☐	BRF_RULE_REF_DATE	BRF_EXPRESSION	CHAR	20	0	Reference Date for Processing BRF Rule	*
29	REF_TIME_EXPR	☐	BRF_RULE_REF_TIME	BRF_EXPRESSION	CHAR	20	0	Reference Time for Processing BRF Rule	*
30	AUX_ACTION	☐	BRF_AUX_ACTION	BRF_ACTION	CHAR	20	0	BRF: Multipurpose Action	TBRF170
31	STOP_PROCESSING	☐	BRF_STOP_PROCESSING	BRF_STOP_PROCESSING	INT1	3	0	BRF: Controls Rule Processing at Runtime
32	SINGLE_ACTION	☐	BRF_SINGLE_ACTION	BRF_BOOLE_D	CHAR	1	0	Perform Action Just Once
33	EVENT_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
34	EXPRESSION_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
35	ACTION_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
36	CHECK	☐	BRF_CHECK	BRF_BOOLE_D	CHAR	1	0	Checkbox
37	EXPR_GATE_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
38	CREATED_AT_DATE	☐	DATS	DATS	DATS	8	0	Field of type DATS
39	CREATED_AT_TIME	☐	TIMS	TIME	TIMS	6	0	Field of type TIMS
40	CREATED_AT_DATE_LOC	☐	DATS	DATS	DATS	8	0	Field of type DATS
41	CREATED_AT_TIME_LOC	☐	TIMS	TIME	TIMS	6	0	Field of type TIMS
42	TIME_ZONE_LOC	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
43	TIME_ZONE_LOC_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
44	REF_DATE_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
45	REF_TIME_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
46	VALID_FROM_DATE	☐	BRF_RULE_VALID_FROM_DATE		DATS	8	0	Valid-From Date for Rule
47	VALID_FROM_TIME	☐	BRF_RULE_VALID_FROM_TIME		TIMS	6	0	Valid-From Time for Rule
48	VALID_TO_DATE	☐	BRF_RULE_VALID_TO_DATE		DATS	8	0	Valid-To Date for Rule
49	VALID_TO_TIME	☐	BRF_RULE_VALID_TO_TIME		TIMS	6	0	Valid-To Time for Rule
50	AUX_ACTION_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
51	TEXTSTRING	☐	BRF_TEXTSTRING		CHAR	255	0	BRF: Text Display of Rule Line

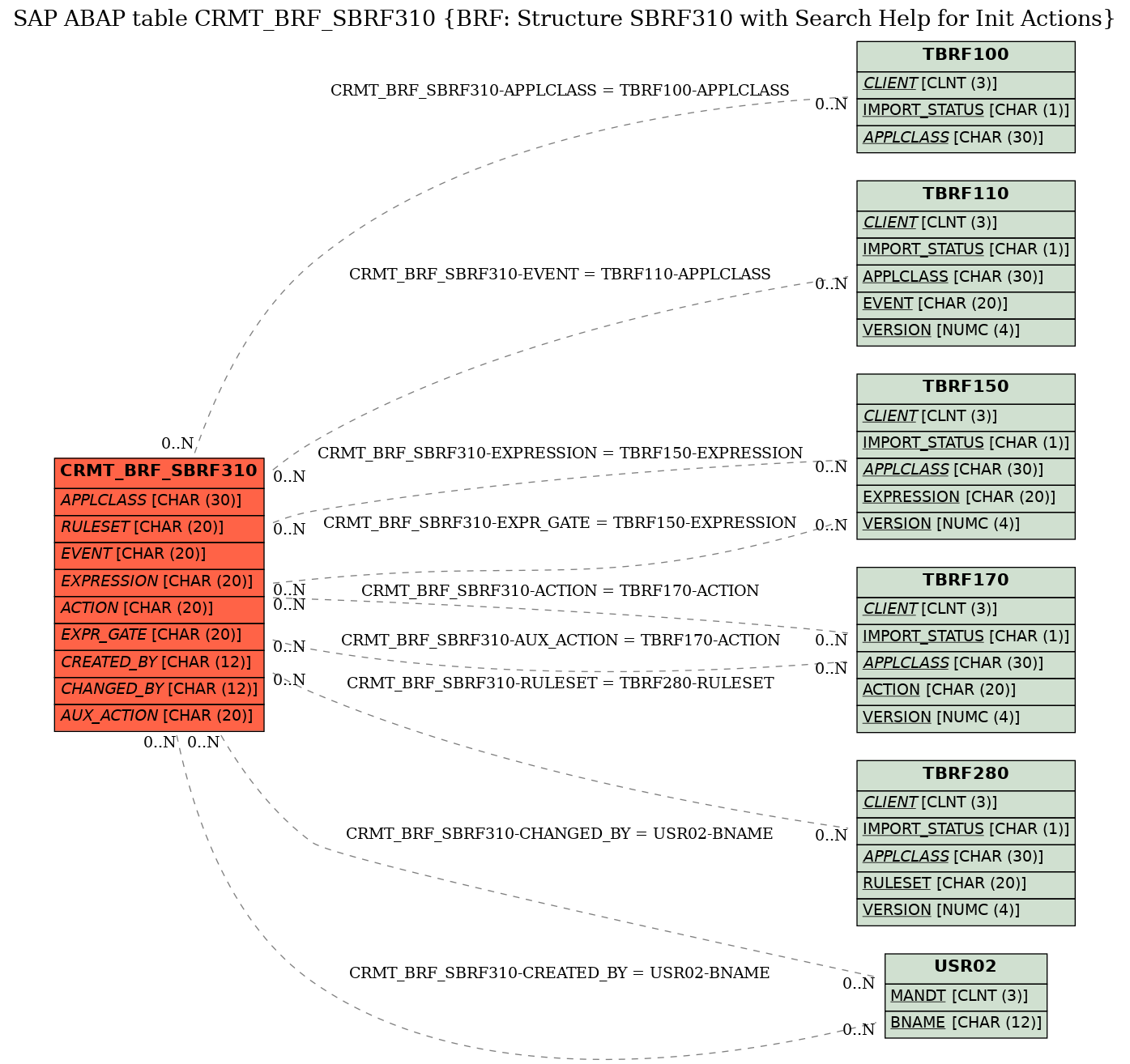

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BRF_SBRF310	ACTION	TBRF170	ACTION
2	CRMT_BRF_SBRF310	APPLCLASS	TBRF100	APPLCLASS
3	CRMT_BRF_SBRF310	AUX_ACTION	TBRF170	ACTION
4	CRMT_BRF_SBRF310	CHANGED_BY	USR02	BNAME
5	CRMT_BRF_SBRF310	CREATED_BY	USR02	BNAME
6	CRMT_BRF_SBRF310	EVENT	TBRF110	APPLCLASS
7	CRMT_BRF_SBRF310	EXPRESSION	TBRF150	EXPRESSION
8	CRMT_BRF_SBRF310	EXPR_GATE	TBRF150	EXPRESSION
9	CRMT_BRF_SBRF310	RULESET	TBRF280	RULESET

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
